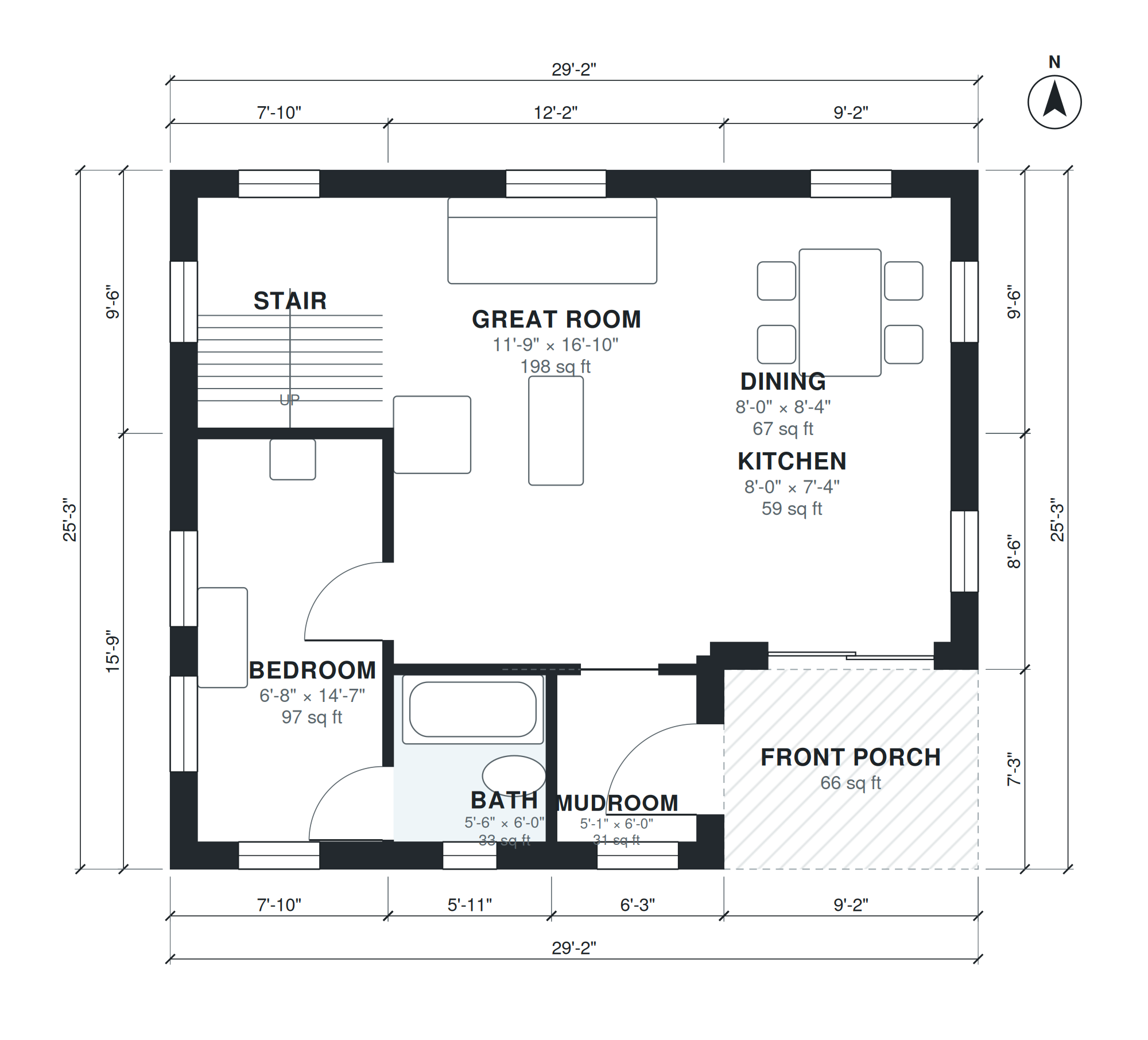

This two-level A-frame cabin has a 29'-2" × 25'-3" footprint and 1,160 square feet of living space. A front porch leads into a 5'-1" × 6'-0" mudroom, which opens to the 11'-9" × 16'-10" great room. The kitchen (8'-0" × 7'-4") and dining area (8'-0" × 8'-4") sit beside the great room, so cooking, meals and seating share one open space.

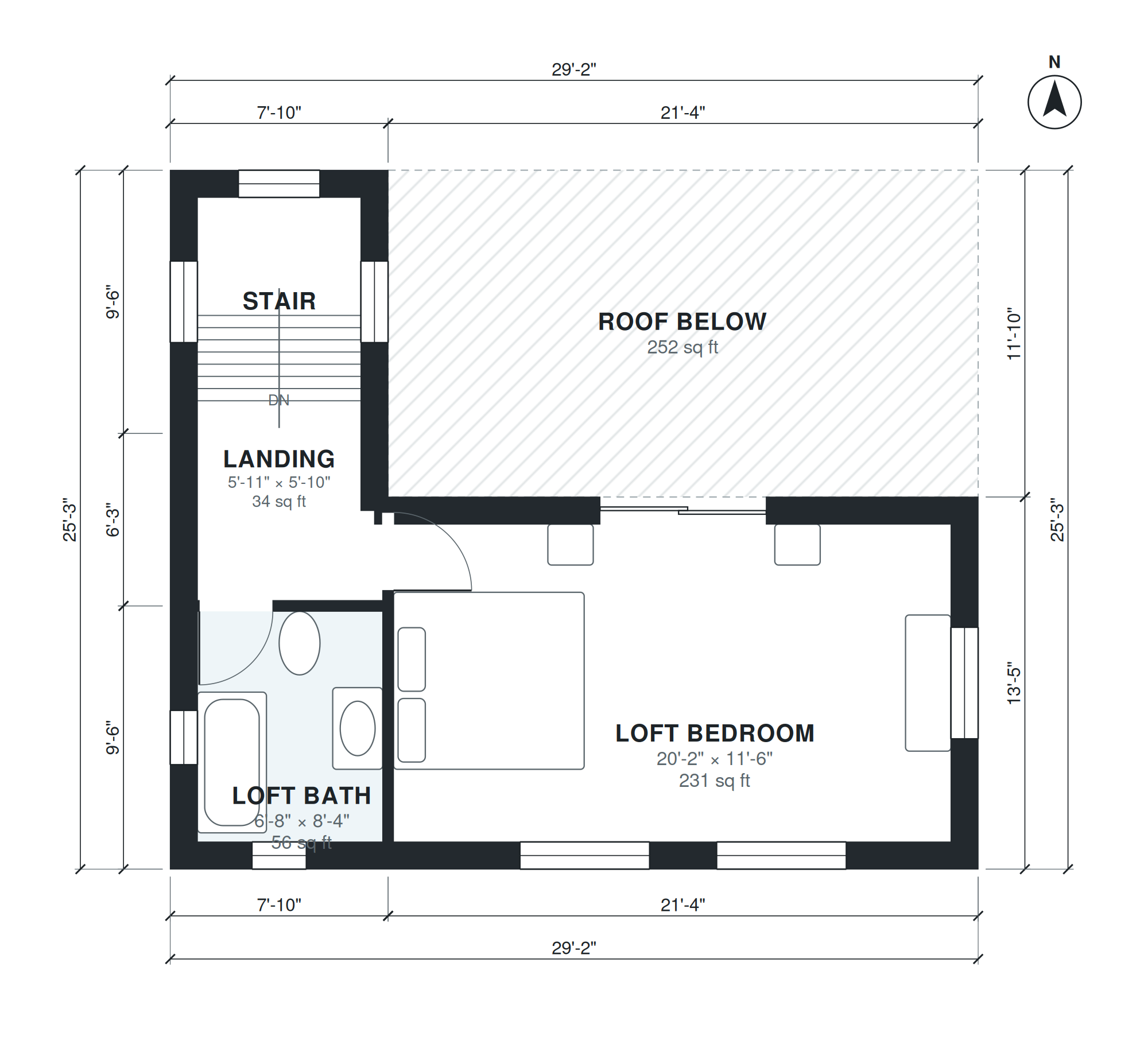

The ground-floor bedroom (6'-8" × 14'-7") and its 5'-6" × 6'-0" bath stay close to the entry. A stair rises to a 5'-11" × 5'-10" landing on the upper level. There, the 20'-2" × 11'-6" loft bedroom has its own 6'-8" × 8'-4" loft bath. That gives the upstairs a private suite, separate from the main floor.
Layout highlights
- Great room of 11'-9" × 16'-10" with the kitchen and dining area alongside.
- Kitchen at 8'-0" × 7'-4" and dining at 8'-0" × 8'-4" share the main floor.
- Mudroom of 5'-1" × 6'-0" connects the front porch to the great room.
- Ground-floor bedroom of 6'-8" × 14'-7" with a 5'-6" × 6'-0" bath nearby.
- Loft bedroom of 20'-2" × 11'-6" with a private 6'-8" × 8'-4" bath.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Bedroom | 1 | 6'-8" × 14'-7" | 97 sq ft |
| Stair | 1 | 6'-8" × 8'-4" | 56 sq ft |
| Bath | 1 | 5'-6" × 6'-0" | 33 sq ft |
| Mudroom | 1 | 5'-1" × 6'-0" | 31 sq ft |
| Great Room | 1 | 11'-9" × 16'-10" | 198 sq ft |
| Kitchen | 1 | 8'-0" × 7'-4" | 59 sq ft |
| Dining | 1 | 8'-0" × 8'-4" | 67 sq ft |
| Stair | 2 | 5'-11" × 8'-4" | 49 sq ft |
| Loft Bedroom | 2 | 20'-2" × 11'-6" | 231 sq ft |
| Loft Bath | 2 | 6'-8" × 8'-4" | 56 sq ft |
| Landing | 2 | 5'-11" × 5'-10" | 34 sq ft |
Who this plan suits
This plan suits couples, small families or second-home owners who want a compact cabin with a bedroom on each level. It needs a lot that fits a 29'-2" × 25'-3" footprint plus the front porch and any required setbacks.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “A-frame cabin: ground floor great room with kitchen and dining, 1 bedroom, bath, mudroom; upstairs loft bedroom, about 1,100 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are A frame house plans?
A frame house plans describe a home with steeply angled roof planes that meet at a ridge and reach close to the ground. This layout uses that shape for a great room, a ground-floor bedroom and a loft bedroom on the second level.
What affects the cost and lot needs for this plan?
The 29'-2" × 25'-3" footprint keeps the foundation and roof area compact, but the steep roof, two bathrooms and the loft stair add framing and finish work. Soil, slope, local codes and material choices will move the final cost more than the plan itself.
Can I change this plan by chat?
Yes. You can ask for changes such as different room sizes, an added garage on a chosen side or a layout for a narrower lot. The plan is updated to match your request, and you can review the new room sizes before you use it.
How do I use the PDF, DXF and IFC files?
The PDF is for reading and sharing the drawings with a builder, designer or permit office. The DXF opens in common CAD programs for editing 2D linework, and the IFC loads into BIM software for a 3D model with building elements.
