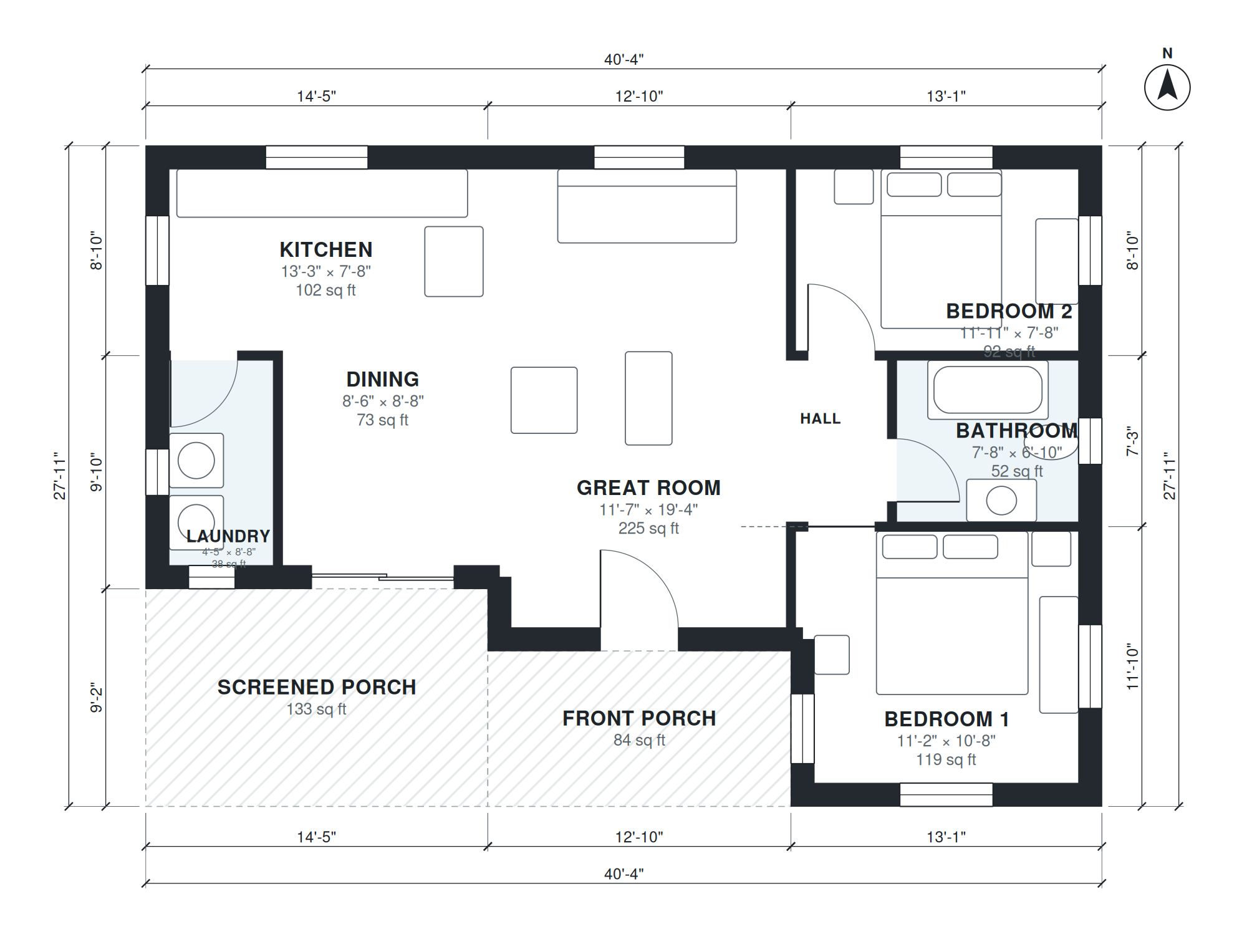

This single-story cabin plan holds 910 square feet of living space on a footprint of 40'-4" × 27'-11". There is no garage. The front porch leads into an open great room measuring 11'-7" × 19'-4", with the kitchen (13'-3" × 7'-8") and dining area (8'-6" × 8'-8") along one side, so cooking, eating, and sitting share a single space.
A short hall (3'-10" × 6'-10") connects the great room to the two bedrooms, the shared bathroom (7'-8" × 6'-10"), and the laundry (4'-5" × 8'-8"). Bedroom 1 is 11'-2" × 10'-8" and Bedroom 2 is 11'-11" × 7'-8". The screened porch extends the living area outdoors, and the sleeping rooms stay separate from the main gathering space.
Layout highlights
- Great room of 11'-7" × 19'-4" combines living space with direct access to the kitchen and dining.
- Galley-style kitchen at 13'-3" × 7'-8" sits beside an 8'-6" × 8'-8" dining area.
- Bedroom 1 is 11'-2" × 10'-8"; Bedroom 2 is 11'-11" × 7'-8".
- One 7'-8" × 6'-10" bathroom and a 4'-5" × 8'-8" laundry open off the hall.
- Front porch and screened porch add outdoor space beyond the 910 sq ft of living area.
Room sizes
| Room | Size | Area |
|---|---|---|
| Laundry | 4'-5" × 8'-8" | 38 sq ft |
| Dining | 8'-6" × 8'-8" | 73 sq ft |
| Kitchen | 13'-3" × 7'-8" | 102 sq ft |
| Great Room | 11'-7" × 19'-4" | 225 sq ft |
| Bedroom 1 | 11'-2" × 10'-8" | 119 sq ft |
| Hall | 3'-10" × 6'-10" | 26 sq ft |
| Bathroom | 7'-8" × 6'-10" | 52 sq ft |
| Bedroom 2 | 11'-11" × 7'-8" | 92 sq ft |
Who this plan suits
This plan suits couples, small households, or anyone wanting a weekend or retreat cabin with a guest or office room. It needs a lot at least wide enough for the 40'-4" × 27'-11" footprint plus setbacks, with room for the porches.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story cabin, 2 bedrooms, 1 bath, open great room with kitchen and dining, laundry, screened porch, front porch, about 900 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 2 bedroom cabin plans?
They are compact house plans, usually one story, with two bedrooms and a shared living area. This one has 910 sq ft of living space, one bathroom, and two porches, and it does not include a garage.
What affects the cost and lot needs of this cabin?
The 40'-4" × 27'-11" footprint sets the minimum lot width and depth once setbacks are added. Foundation type, slope, porch construction, and local material and labor rates are the main cost drivers, so get local quotes before budgeting.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing a bedroom, moving the laundry, adding a garage on a chosen side, or fitting a narrower lot. The layout is then regenerated with the new room sizes.
How do I use the PDF, DXF, and IFC files?
The PDF is for reviewing and sharing the plan. The DXF opens in CAD software for drafting and edits, and the IFC imports into BIM tools. Have a local engineer or architect review the plan before permitting.
