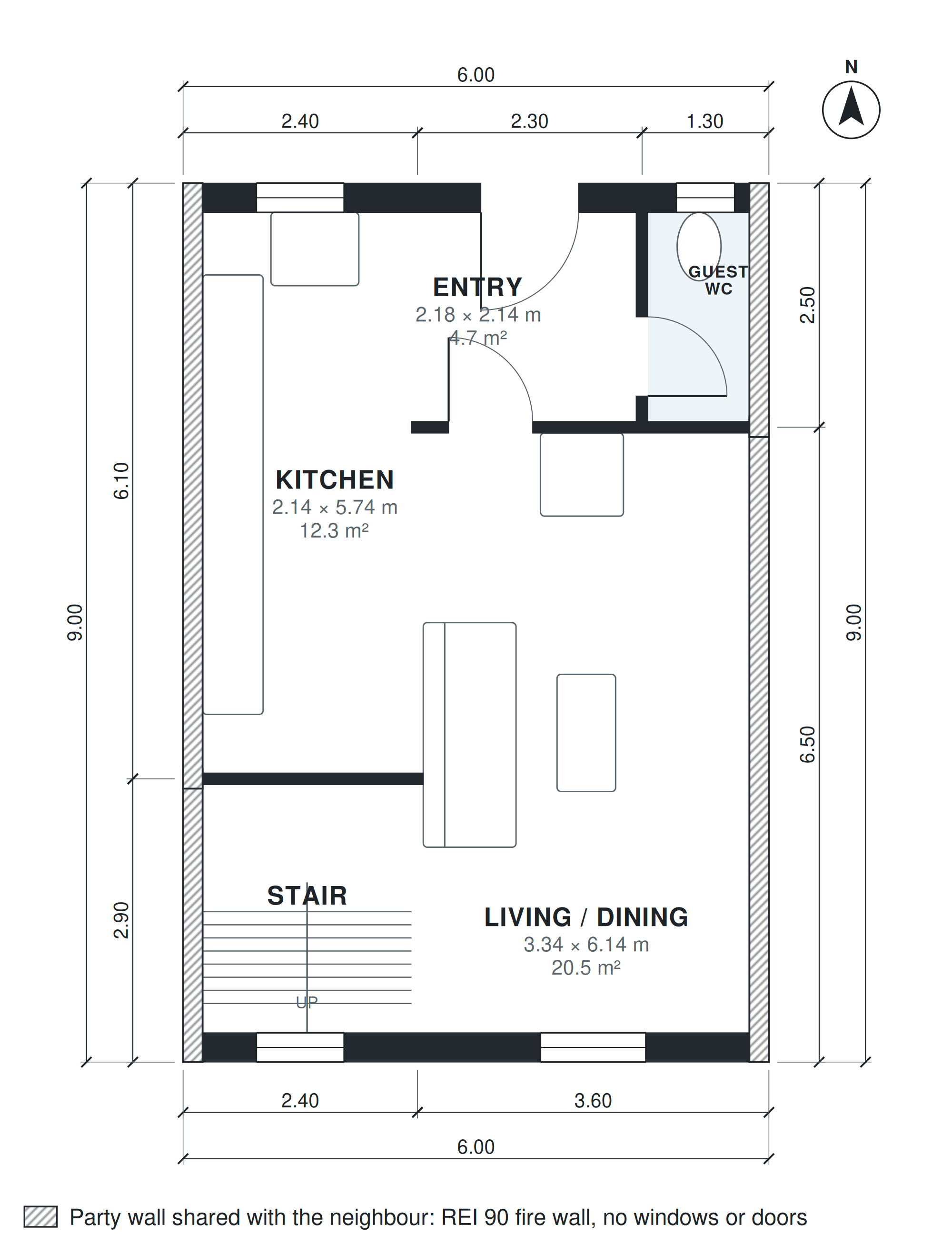

This two-story mid-terrace plan has 1,160 sq ft of living space on a 19'-8" × 29'-6" footprint. Party walls run along both long sides, so every window sits on the front or rear facade. The entry (7'-2" × 7'-0") sits beside the stair (7'-0" × 8'-4") and a 3'-5" × 7'-0" guest WC, so visitors never walk through the living space.

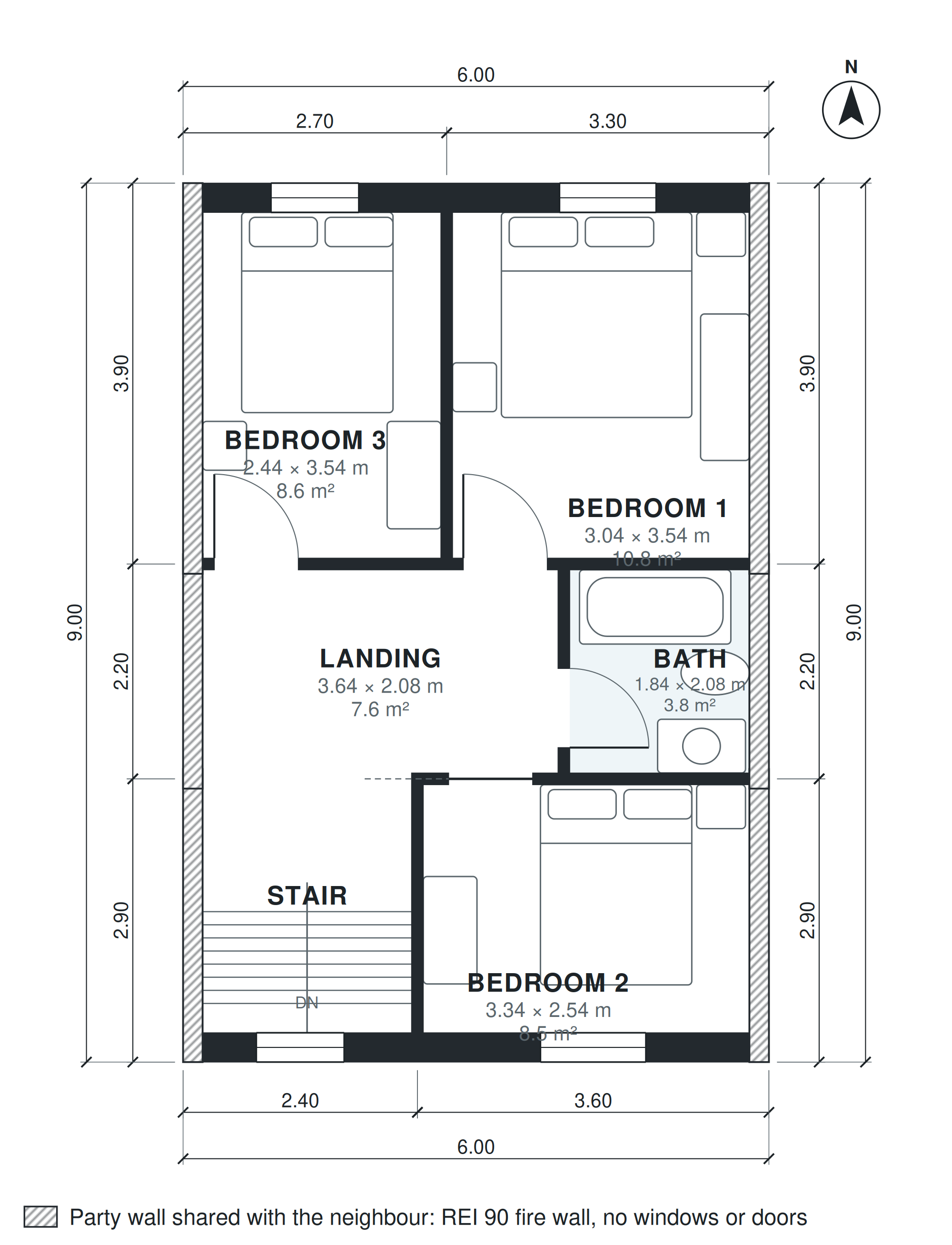

The 7'-0" × 18'-10" kitchen runs along the front of the ground floor. Beyond it, the 10'-11" × 20'-2" living and dining room opens toward the rear garden. Upstairs, the stair arrives at an 11'-11" × 6'-10" landing that serves Bedroom 1 (10'-0" × 11'-7"), Bedroom 3 (8'-0" × 11'-7"), Bedroom 2 (10'-11" × 8'-4") and a 6'-0" × 6'-10" bath.
Layout highlights
- Living and dining room measures 10'-11" × 20'-2" and faces the rear garden.
- Kitchen is a 7'-0" × 18'-10" galley-style room at the front.
- Guest WC (3'-5" × 7'-0") sits off the 7'-2" × 7'-0" entry.
- Three bedrooms upstairs, from 8'-0" × 11'-7" to 10'-11" × 8'-4".
- Party walls on both sides keep windows to the front and rear only.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 7'-0" × 8'-4" | 59 sq ft |
| Living / Dining | 1 | 10'-11" × 20'-2" | 221 sq ft |
| Entry | 1 | 7'-2" × 7'-0" | 50 sq ft |
| Guest WC | 1 | 3'-5" × 7'-0" | 24 sq ft |
| Kitchen | 1 | 7'-0" × 18'-10" | 132 sq ft |
| Stair | 2 | 7'-0" × 8'-4" | 59 sq ft |
| Bedroom 2 | 2 | 10'-11" × 8'-4" | 91 sq ft |
| Landing | 2 | 11'-11" × 6'-10" | 81 sq ft |
| Bath | 2 | 6'-0" × 6'-10" | 41 sq ft |
| Bedroom 3 | 2 | 8'-0" × 11'-7" | 93 sq ft |
| Bedroom 1 | 2 | 10'-0" × 11'-7" | 116 sq ft |
Who this plan suits
This plan suits households that want three bedrooms and a garden-facing living room in a compact urban terrace. It needs a mid-block lot with neighbors on both sides, a width above the 19'-8" footprint, and street access at the front.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story mid-terrace row house 6 m (20 ft) wide, party walls on both long sides (no windows there), windows only on the front and rear facades: ground floor entry, guest WC, kitchen at the front, dining and living to the rear garden; upstairs 3 bedrooms and a bath, about 110 m² (1,180 sq ft) of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
