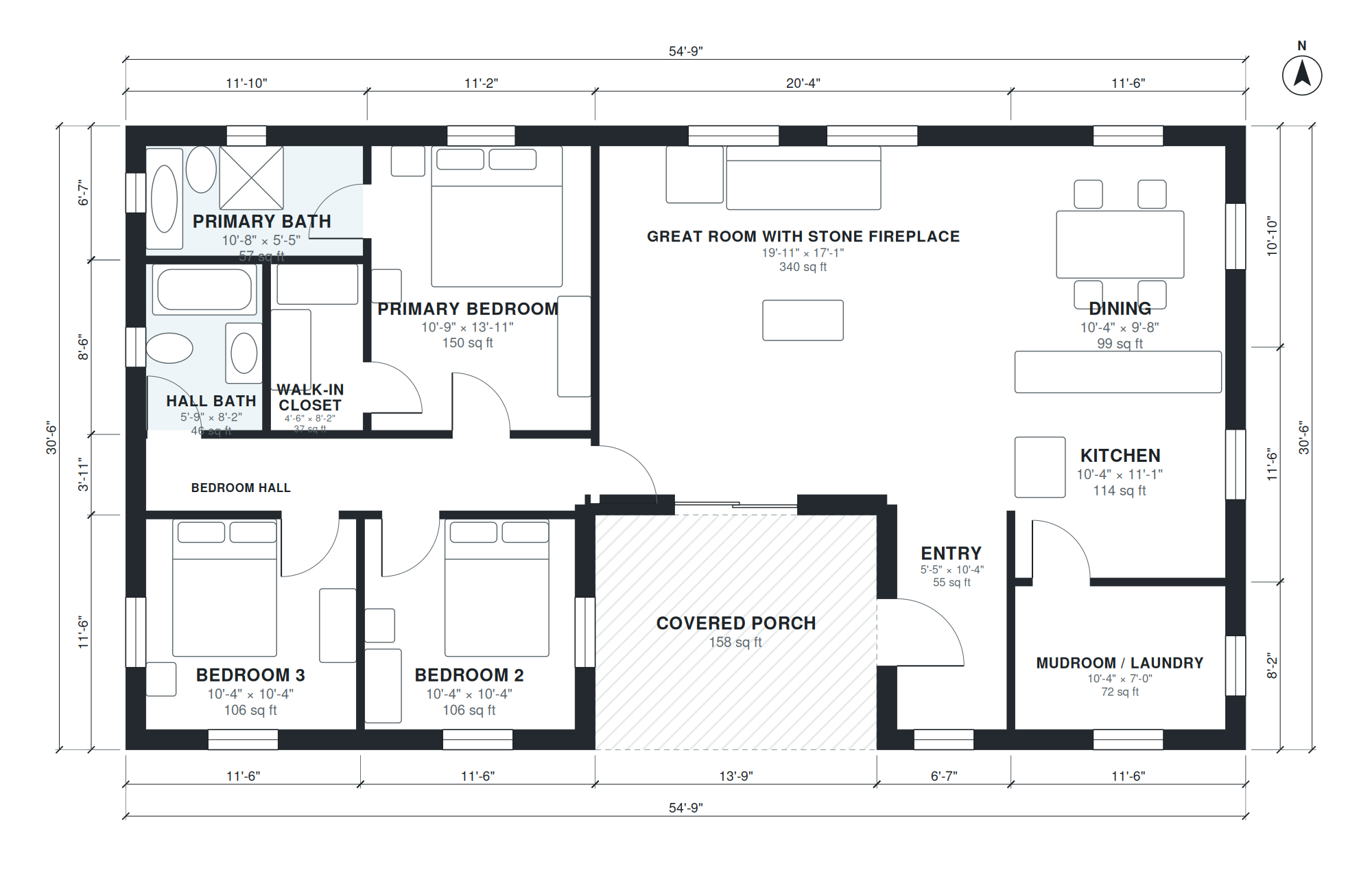

This single-story log cabin plan has 1,510 square feet of living space on a 54'-9" × 30'-6" footprint. The entry (5'-5" × 10'-4") opens to a 19'-11" × 17'-1" great room built around a stone fireplace. The kitchen (10'-4" × 11'-1") and dining area (10'-4" × 9'-8") open to the great room, so cooking, meals and seating share one connected space.
A mudroom and laundry (10'-4" × 7'-0") handles everyday comings and goings and keeps boots and wet coats out of the main rooms. A 21'-9" × 3'-7" bedroom hall serves Bedroom 2 and Bedroom 3, each 10'-4" × 10'-4", and the hall bath (5'-9" × 8'-2"). The primary bedroom (10'-9" × 13'-11") has a walk-in closet (4'-6" × 8'-2") and a primary bath (10'-8" × 5'-5"). A deep covered porch extends the living area outdoors.
Layout highlights
- Great room measures 19'-11" × 17'-1" with a stone fireplace as the focal point.
- Kitchen (10'-4" × 11'-1") and dining (10'-4" × 9'-8") open to the great room.
- Mudroom and laundry at 10'-4" × 7'-0" sits apart from the bedroom wing.
- Bedrooms 2 and 3 are each 10'-4" × 10'-4", served by a 5'-9" × 8'-2" hall bath.
- Primary suite pairs a 10'-9" × 13'-11" bedroom with a walk-in closet and 10'-8" × 5'-5" bath.
Room sizes
| Room | Size | Area |
|---|---|---|
| Bedroom 3 | 10'-4" × 10'-4" | 106 sq ft |
| Bedroom 2 | 10'-4" × 10'-4" | 106 sq ft |
| Bedroom Hall | 21'-9" × 3'-7" | 77 sq ft |
| Hall Bath | 5'-9" × 8'-2" | 46 sq ft |
| Walk-in Closet | 4'-6" × 8'-2" | 37 sq ft |
| Primary Bath | 10'-8" × 5'-5" | 57 sq ft |
| Primary Bedroom | 10'-9" × 13'-11" | 150 sq ft |
| Entry | 5'-5" × 10'-4" | 55 sq ft |
| Great Room with Stone Fireplace | 19'-11" × 17'-1" | 340 sq ft |
| Mudroom / Laundry | 10'-4" × 7'-0" | 72 sq ft |
| Kitchen | 10'-4" × 11'-1" | 114 sq ft |
| Dining | 10'-4" × 9'-8" | 99 sq ft |
Who this plan suits
This plan suits families, couples or retreat owners who want three bedrooms and one-level living in a compact cabin. It needs a lot that fits the 54'-9" × 30'-6" footprint plus the covered porch, setbacks and access.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story log cabin: 3 bedrooms, 2 baths, great room with stone fireplace open to kitchen and dining, mudroom with laundry, deep covered porch, about 1,500 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are log cabin floor plans?
Log cabin floor plans are layouts designed around log or timber-style wall construction, usually with an open main living space, a prominent fireplace and a porch. This version is a single-story, 1,510 sq ft plan with 3 bedrooms and 2 baths.
What affects the cost and lot requirements for this plan?
The 54'-9" × 30'-6" footprint sets the minimum lot width and depth once setbacks are added. Cost is driven mainly by the log or timber wall system, the stone fireplace, the porch structure, site conditions and local labor and material rates.
Can I change this plan by chat?
Yes. You can ask for changes in chat, such as resizing rooms, adding a garage on a chosen side, or adjusting the layout for a narrower or wider lot. The plan is updated to reflect the new arrangement and room sizes.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and permit preparation discussions. The DXF opens in CAD software for drafting and edits, and the IFC imports into BIM tools for modeling and coordination. Have a local designer or engineer verify the plans against your site and code requirements.
