This two-story plan provides 3,130 square feet of living space, not counting the garage, within a 49'-6" × 43'-0" footprint. It has five bedrooms and 3.5 baths. A 10'-8" × 12'-3" guest bedroom sits on the ground floor next to a 5'-5" × 10'-1" guest bath. The primary bedroom and three more bedrooms are upstairs.
From the 11'-5" × 7'-0" foyer, the plan opens to a 12'-6" × 26'-1" family room and an 11'-5" × 21'-9" kitchen with an island. A 13'-3" × 10'-9" dining room and a 13'-3" × 3'-5" walk-in pantry sit close by. A 16'-4" × 4'-6" mudroom connects the 22'-1" × 17'-10" two-car garage to the house, and a 10'-5" × 5'-2" laundry and a powder room are on the same level. Upstairs, a 10'-8" × 21'-9" family loft and a 26'-2" hall link the bedrooms and the hall bath. The primary suite has a 6'-6" × 9'-4" walk-in closet and a 9'-4" × 9'-4" ensuite. A front porch marks the entry.
Layout highlights
- Ground-floor guest bedroom of 10'-8" × 12'-3" with a 5'-5" × 10'-1" guest bath beside it.
- Kitchen with island at 11'-5" × 21'-9", plus a 13'-3" × 3'-5" walk-in pantry.
- Family room of 12'-6" × 26'-1" and a 13'-3" × 10'-9" dining room on the main level.
- Primary suite upstairs: 16'-2" × 12'-9" bedroom, 6'-6" × 9'-4" walk-in closet, 9'-4" × 9'-4" ensuite.
- Two-car garage of 22'-1" × 17'-10" opens to a 16'-4" × 4'-6" mudroom.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 11'-5" × 6'-2" | 70 sq ft |
| Walk-in Pantry | 1 | 13'-3" × 3'-5" | 45 sq ft |
| Dining | 1 | 13'-3" × 10'-9" | 143 sq ft |
| Family Room | 1 | 12'-6" × 26'-1" | 325 sq ft |
| 2-Car Garage | 1 | 22'-1" × 17'-10" | 395 sq ft |
| Mudroom | 1 | 16'-4" × 4'-6" | 74 sq ft |
| Powder Room | 1 | 5'-6" × 5'-2" | 29 sq ft |
| Laundry | 1 | 10'-5" × 5'-2" | 54 sq ft |
| Guest Bath | 1 | 5'-5" × 10'-1" | 54 sq ft |
| Hall | 1 | 10'-4" × 12'-3" | 126 sq ft |
| Guest Bedroom | 1 | 10'-8" × 12'-3" | 130 sq ft |
| Kitchen with Island | 1 | 11'-5" × 21'-9" | 249 sq ft |
| Foyer | 1 | 11'-5" × 7'-0" | 80 sq ft |

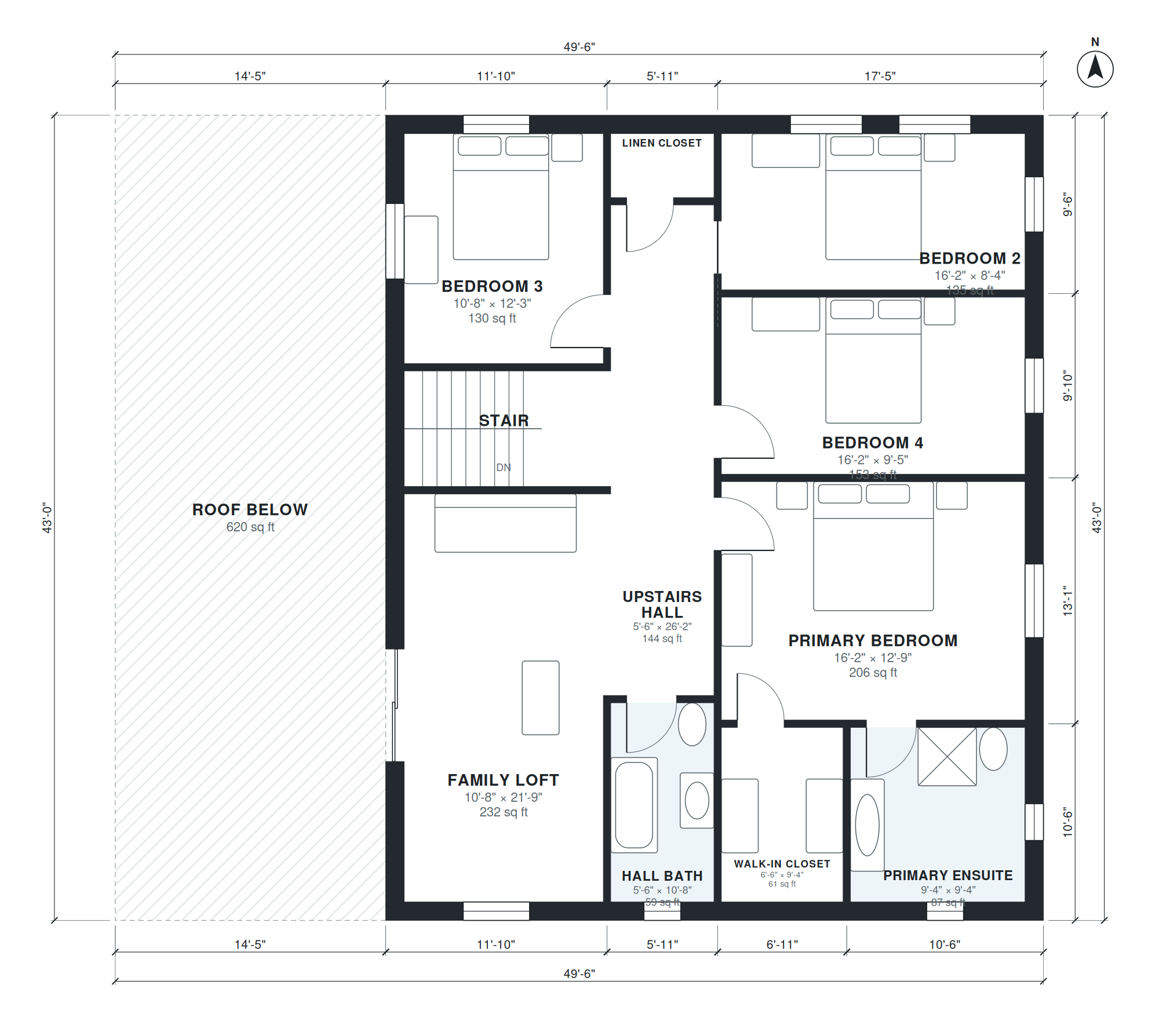

| Family Loft | 2 | 10'-8" × 21'-9" | 232 sq ft |
| Stair | 2 | 10'-8" × 6'-2" | 66 sq ft |
| Bedroom 3 | 2 | 10'-8" × 12'-3" | 130 sq ft |
| Hall Bath | 2 | 5'-6" × 10'-8" | 59 sq ft |
| Upstairs Hall | 2 | 5'-6" × 26'-2" | 144 sq ft |
| Linen Closet | 2 | 5'-6" × 3'-5" | 19 sq ft |
| Walk-in Closet | 2 | 6'-6" × 9'-4" | 61 sq ft |
| Primary Ensuite | 2 | 9'-4" × 9'-4" | 87 sq ft |
| Primary Bedroom | 2 | 16'-2" × 12'-9" | 206 sq ft |
| Bedroom 4 | 2 | 16'-2" × 9'-5" | 153 sq ft |
| Bedroom 2 | 2 | 16'-2" × 8'-4" | 135 sq ft |
Who this plan suits
This plan suits families that want a bedroom and full bath on the entry level for guests or relatives, with the remaining bedrooms grouped upstairs. The 49'-6" × 43'-0" footprint needs a lot wide enough for the house, the front porch and a garage approach.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story family house, 5 bedrooms, 3.5 baths. Ground floor: guest bedroom with full bath, open kitchen with island and walk-in pantry, family room, dining, powder room, laundry, mudroom to a 2-car garage. Upstairs: primary suite with walk-in closet and ensuite, 3 more bedrooms, hall bath, about 3,200 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 5 bedroom house plans best used for?
A five-bedroom plan suits larger households, multigenerational living, or families who want a dedicated guest room and home office space. This plan places one bedroom on the ground floor and four upstairs, with 3.5 baths and 3,130 sq ft of living space.
What affects the cost of building this plan?
The main drivers are the 3,130 sq ft of living area, the two-story structure, the number of bathrooms and plumbing runs, and the attached two-car garage. Local labor, soil and foundation conditions, finish level and permit requirements also change the final figure, so get quotes from local builders.
Can I change this plan by chat?
Yes. You can ask for changes in plain language, such as moving the garage to the other side, resizing or adding rooms, or fitting the plan to a narrower or wider lot. The layout is revised and the room sizes are updated to match.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with your builder, lender or permit office. The DXF opens in CAD software for drafting and edits, and the IFC imports into BIM tools for coordination. Have a local engineer or architect review the drawings before permit submission.
