This two-story plan has four bedrooms, each with its own bathroom, plus a lavabo for guests. That makes 4.5 baths in 2,420 sq ft of living space, not counting the carport. The footprint is 55'-5" × 30'-10" and there is no basement.

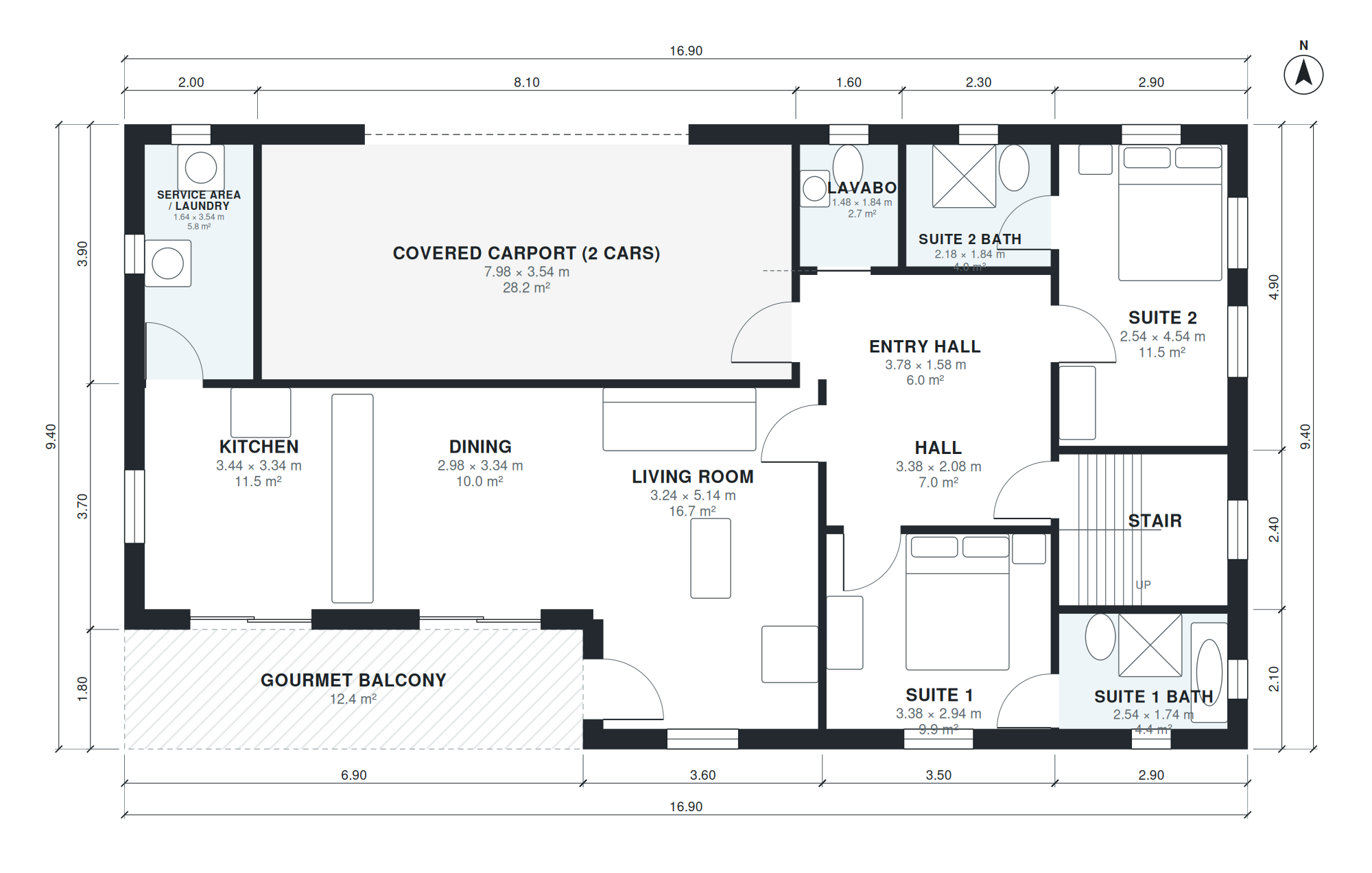

Downstairs, the entry hall (12'-5" × 5'-2") opens to the living room (10'-8" × 16'-10"), the dining room (9'-9" × 10'-11") and the kitchen (11'-3" × 10'-11"), so the social rooms read as one connected space. Suite 1 (11'-1" × 9'-8") and Suite 2 (8'-4" × 14'-11") are on this level, and the service area and laundry (5'-5" × 11'-7") sits next to the 26'-2" × 11'-7" covered carport. Upstairs, a 27'-10" hall connects the family room (16'-6" × 12'-10"), the study, Suite 4 and the master suite. A gourmet balcony and a roof terrace provide outdoor space.
Layout highlights
- Four bedrooms, each with a private bath: two suites downstairs, two upstairs.
- Master suite is 21'-0" × 8'-2", with an 8'-8" × 6'-4" closet and 11'-11" × 6'-4" bath.
- Kitchen (11'-3" × 10'-11"), dining and living room sit together on the entry level.
- Covered carport fits two cars at 26'-2" × 11'-7", with the laundry alongside.
- Upper level adds a 16'-6" × 12'-10" family room, a study, a gourmet balcony and a roof terrace.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 8'-4" × 7'-6" | 62 sq ft |
| Kitchen | 1 | 11'-3" × 10'-11" | 124 sq ft |
| Dining | 1 | 9'-9" × 10'-11" | 107 sq ft |
| Living Room | 1 | 10'-8" × 16'-10" | 179 sq ft |
| Suite 1 | 1 | 11'-1" × 9'-8" | 107 sq ft |
| Hall | 1 | 11'-1" × 6'-10" | 76 sq ft |
| Service Area / Laundry | 1 | 5'-5" × 11'-7" | 62 sq ft |
| Covered Carport (2 cars) | 1 | 26'-2" × 11'-7" | 304 sq ft |
| Entry Hall | 1 | 12'-5" × 5'-2" | 64 sq ft |
| Lavabo | 1 | 4'-10" × 6'-0" | 29 sq ft |
| Suite 2 Bath | 1 | 7'-2" × 6'-0" | 43 sq ft |
| Suite 1 Bath | 1 | 8'-4" × 5'-9" | 48 sq ft |
| Suite 2 | 1 | 8'-4" × 14'-11" | 124 sq ft |
| Family Room | 2 | 16'-6" × 12'-10" | 212 sq ft |
| Study | 2 | 12'-1" × 8'-4" | 101 sq ft |
| Suite 4 | 2 | 15'-4" × 8'-4" | 128 sq ft |
| Upper Hall | 2 | 27'-10" × 4'-1" | 113 sq ft |
| Suite 4 Bath | 2 | 8'-4" × 5'-9" | 48 sq ft |
| Stair | 2 | 8'-4" × 7'-6" | 62 sq ft |
| Master Suite | 2 | 21'-0" × 8'-2" | 171 sq ft |
| Master Closet | 2 | 8'-8" × 6'-4" | 55 sq ft |
| Master Bath | 2 | 11'-11" × 6'-4" | 76 sq ft |
Who this plan suits
This plan suits households that want every bedroom to have its own bathroom, such as multigenerational families or those who host guests often. It needs a lot that fits the 55'-5" × 30'-10" footprint plus the front carport and any required setbacks.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 4 bedrooms, 4.5 baths, all 4 bedrooms are suites with private bathrooms (2 downstairs, 2 upstairs), lavabo, integrated kitchen, dining and living, gourmet balcony, service area, covered carport for 2 cars at the front, about 220 m² (2,368 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are house plans with 4 suites?
They are plans where every bedroom has its own attached bathroom, so no one shares. In this plan two suites are on the entry level and two are upstairs, with a lavabo for guests, giving 4.5 baths in total.
What affects the lot and cost of building this plan?
The footprint is 55'-5" × 30'-10" over two levels with 2,420 sq ft of living space, so lot width and setbacks matter first. Four full baths, the kitchen and the laundry concentrate plumbing, and the roof terrace and balcony add structure and waterproofing. Local labor, materials and soil conditions set the final cost.
Can I change this plan by chat?
Yes. You can ask to resize or move rooms, switch the carport to the other side, or fit a narrower or wider lot. The layout is regenerated so the rooms still connect, and you can review the updated plan before downloading.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing and sharing the plan with family, a builder or a permit office. The DXF opens in CAD tools for drafting and detailing, and the IFC imports into BIM software for coordination with an architect or engineer. Local code review and engineering are still required before construction.
