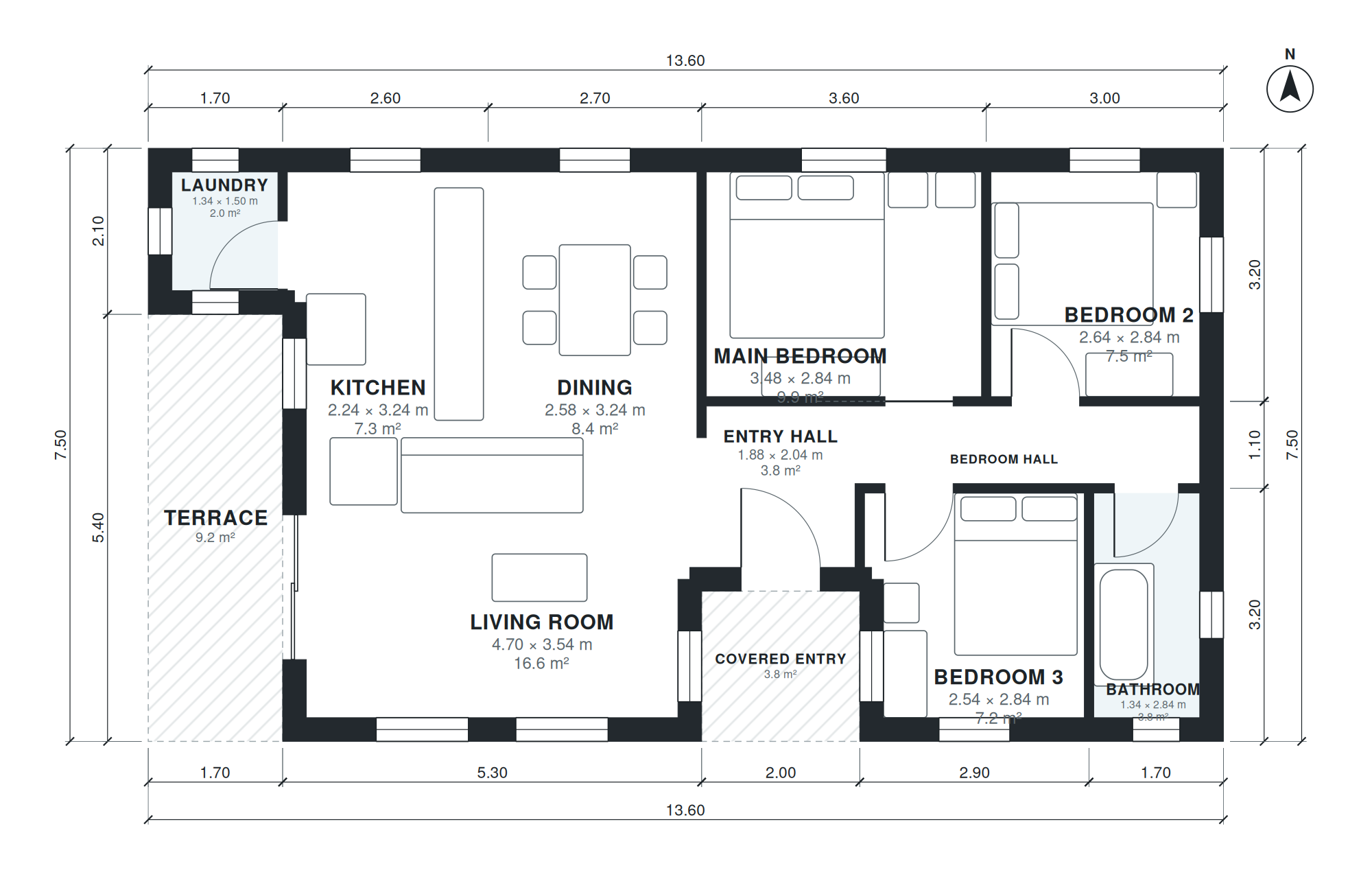

This single-story plan fits three bedrooms, one bathroom and an open kitchen, dining and living area into a 44'-7" × 24'-7" footprint, with 960 sq ft of living space. The garage is not included, and there is no basement. A covered entry leads into a 6'-2" × 6'-8" entry hall, which opens to the 15'-5" × 11'-7" living room.
The kitchen (7'-4" × 10'-8") and dining area (8'-6" × 10'-8") share the same depth, so cooking and eating stay in one connected space. A 4'-5" × 4'-11" laundry completes the day zone, and a terrace extends the living area outdoors. A 13'-11" × 3'-3" bedroom hall separates the sleeping wing: the main bedroom is 11'-5" × 9'-4", bedroom 2 is 8'-8" × 9'-4", and bedroom 3 is 8'-4" × 9'-4". All three share a 4'-5" × 9'-4" bathroom.
Layout highlights
- Open kitchen, dining and living area, with a 15'-5" × 11'-7" living room
- Covered entry opens to a 6'-2" × 6'-8" entry hall
- Main bedroom measures 11'-5" × 9'-4"; bedrooms 2 and 3 are 8'-8" and 8'-4" wide
- Bedroom hall, 13'-11" × 3'-3", keeps the sleeping wing apart from the living area
- One 4'-5" × 9'-4" bathroom serves all bedrooms; a 4'-5" × 4'-11" laundry is separate
Room sizes
| Room | Size | Area |
|---|---|---|
| Laundry | 4'-5" × 4'-11" | 22 sq ft |
| Living Room | 15'-5" × 11'-7" | 179 sq ft |
| Kitchen | 7'-4" × 10'-8" | 78 sq ft |
| Dining | 8'-6" × 10'-8" | 90 sq ft |
| Entry Hall | 6'-2" × 6'-8" | 41 sq ft |
| Bedroom 3 | 8'-4" × 9'-4" | 78 sq ft |
| Bathroom | 4'-5" × 9'-4" | 41 sq ft |
| Bedroom Hall | 13'-11" × 3'-3" | 45 sq ft |
| Main Bedroom | 11'-5" × 9'-4" | 106 sq ft |
| Bedroom 2 | 8'-8" × 9'-4" | 81 sq ft |
Who this plan suits
This plan suits small households, couples or families who want three bedrooms on one level with compact, efficient rooms. It needs a lot wider than the 44'-7" footprint once local setbacks are added, with a relatively level site since there is no basement.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 3 bedrooms, 1 bath, kitchen open to dining and living, laundry, covered entry and terrace, about 90 m² (969 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 90 square meter house plans?
They are plans for homes with roughly 90 m² of living space, which is a compact size for a family. This version measures 960 sq ft of living area on one level, with three bedrooms and one bathroom, and the garage is not counted.
What affects the lot and building cost of this plan?
The 44'-7" × 24'-7" footprint keeps the roof and foundation simple, but local setbacks, soil, site slope and finish level will still drive the cost. With no basement, excavation is limited, though the slab or foundation type depends on your site and local code.
Can I change this plan by chat?
Yes. You can ask to resize rooms, add a garage on either side, or adapt the layout to a narrower or wider lot. The plan is then regenerated with the new dimensions, so check the updated room sizes before you build.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the layout and sharing it with builders or permit offices. The DXF opens in CAD software for editing the 2D drawings, and the IFC imports into BIM tools for 3D coordination. Have a local professional check the plans against your code before construction.
