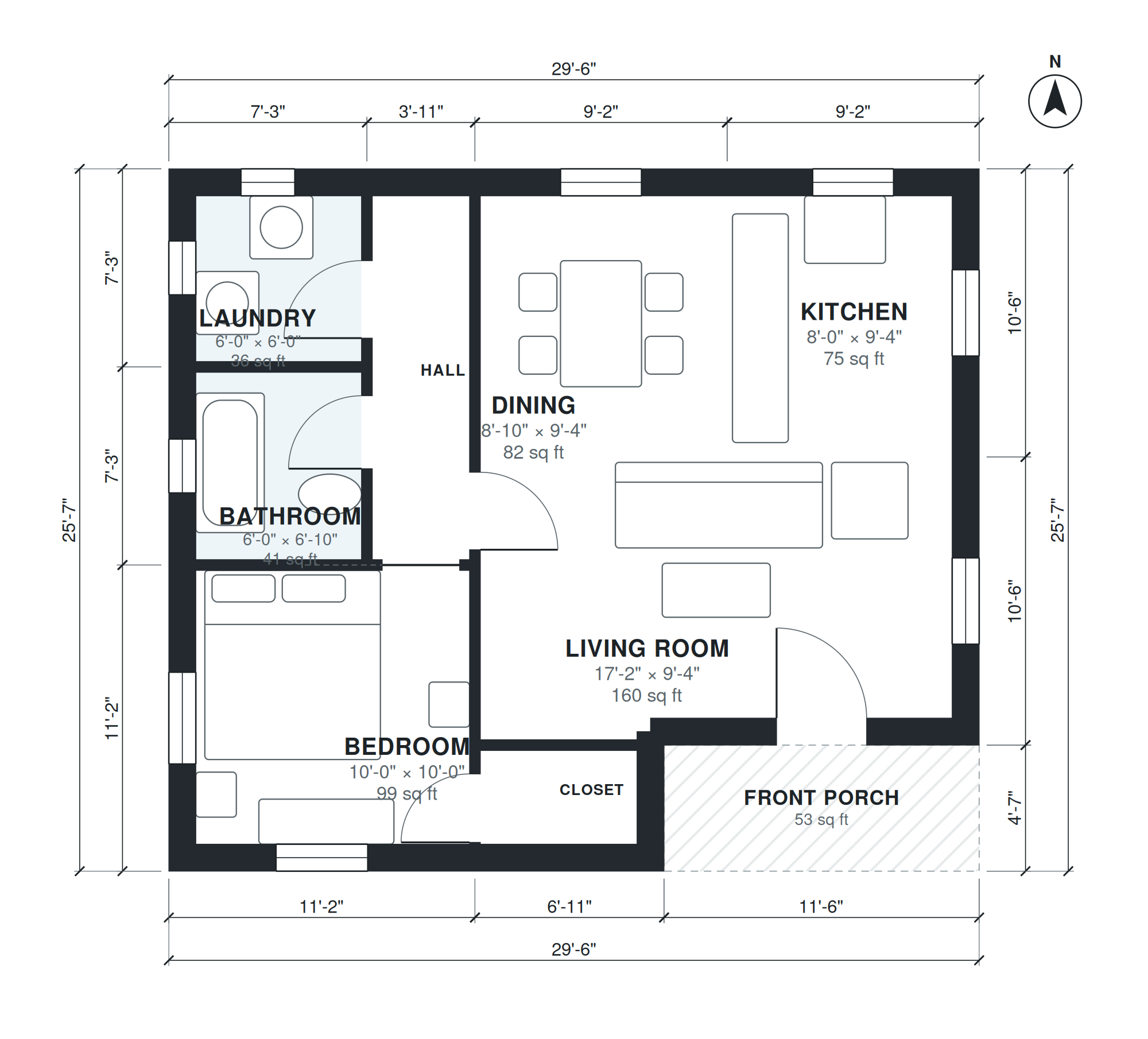

This single-story plan offers 700 sq ft of living space with one bedroom and one bathroom. The footprint measures 29'-6" × 25'-7", and there is no garage. A front porch leads into the main living area, where the living room (17'-2" × 9'-4"), dining area (8'-10" × 9'-4") and kitchen (8'-0" × 9'-4") sit side by side in one open row.
A hall (3'-7" × 13'-3") connects the living space to the private rooms. The bedroom (10'-0" × 10'-0") has a closet (5'-9" × 3'-5") nearby, and the bathroom (6'-0" × 6'-10") is steps away. The laundry room (6'-0" × 6'-0") is on the same circulation path, so daily routines stay on one level without crossing the living room.
Layout highlights
- Living room at 17'-2" × 9'-4" runs open to the dining area and kitchen
- Dining area at 8'-10" × 9'-4" sits between the living room and kitchen
- Kitchen at 8'-0" × 9'-4" shares the same depth as the living and dining spaces
- Bedroom at 10'-0" × 10'-0" is reached by a 3'-7" × 13'-3" hall
- Separate 6'-0" × 6'-0" laundry and 6'-0" × 6'-10" bathroom serve the bedroom side
Room sizes
| Room | Size | Area |
|---|---|---|
| Bedroom | 10'-0" × 10'-0" | 99 sq ft |
| Bathroom | 6'-0" × 6'-10" | 41 sq ft |
| Laundry | 6'-0" × 6'-0" | 36 sq ft |
| Hall | 3'-7" × 13'-3" | 47 sq ft |
| Closet | 5'-9" × 3'-5" | 19 sq ft |
| Living Room | 17'-2" × 9'-4" | 160 sq ft |
| Dining | 8'-10" × 9'-4" | 82 sq ft |
| Kitchen | 8'-0" × 9'-4" | 75 sq ft |
Who this plan suits
This plan suits one or two people, or anyone wanting a guest house, rental unit or downsized home with a simple one-level layout. It needs a lot that can fit the 29'-6" × 25'-7" footprint plus local setbacks, with no garage space required.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 1 bedroom, 1 bath, open kitchen, dining and living, laundry, front porch, about 700 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 700 sq ft house plans?
They are compact home designs with about 700 sq ft of living space. This plan fits one bedroom, one bathroom, an open kitchen, dining and living area, and a laundry room on a single level.
What affects the cost and lot requirements for this plan?
The 29'-6" × 25'-7" footprint sets the minimum lot size once setbacks are added. Site conditions, foundation type, finishes and local labor rates drive the build cost more than the floor area alone, so get local quotes.
Can I change this plan by chat?
Yes. You can ask for changes such as different room sizes, an added garage on a chosen side, or a narrower or wider footprint to suit your lot. The layout is updated to match your request.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and permit discussions. The DXF opens in CAD software for drafting and editing, and the IFC imports into BIM tools such as Revit or ArchiCAD for modeling and coordination.
