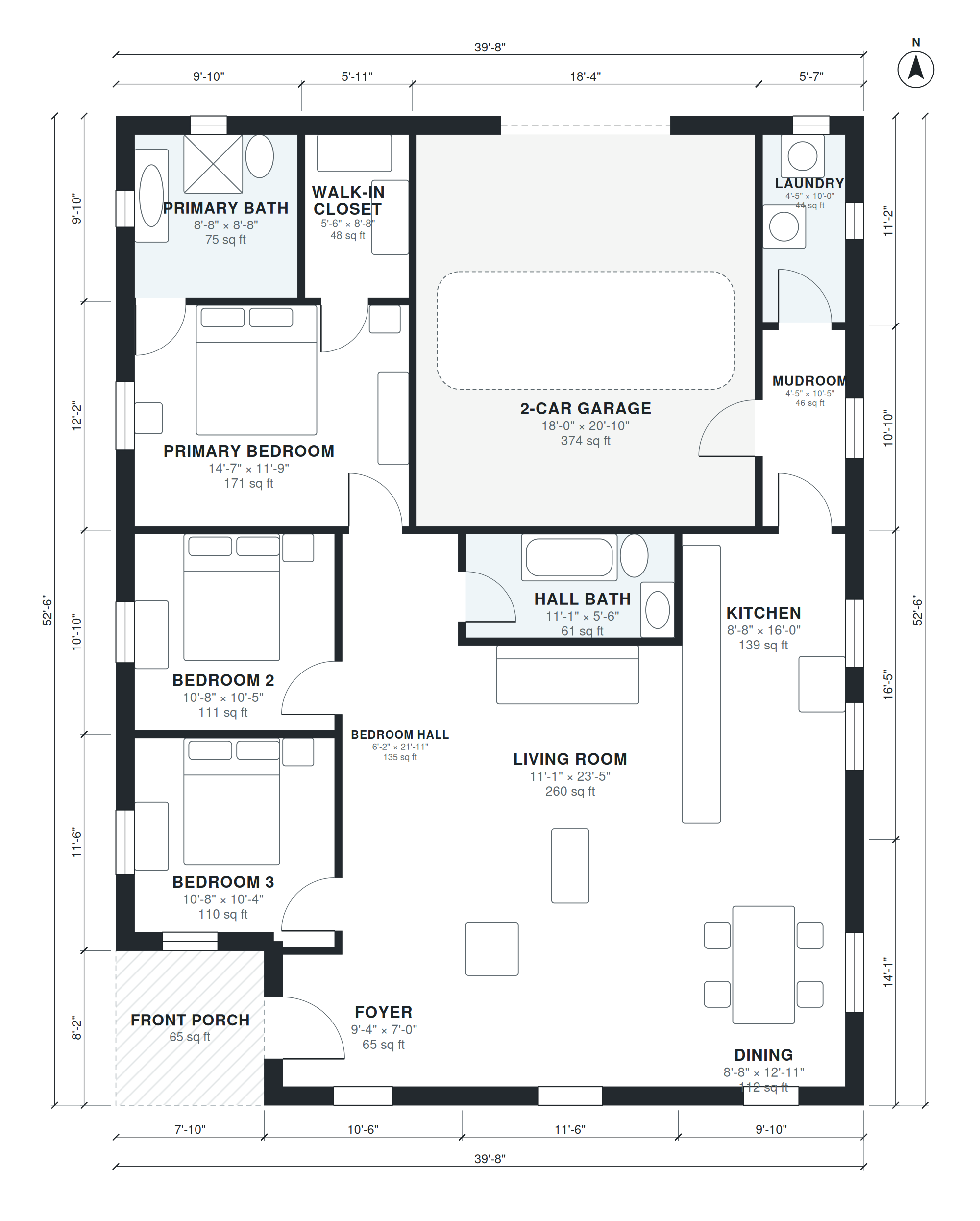

This single-story plan fits a 39'-8" × 52'-6" footprint, so it stays within a 40 ft wide lot while providing 1,620 sq ft of living space, not counting the garage. The 2-car garage, 18'-0" × 20'-10", faces the front, and a front porch leads into a 9'-4" × 7'-0" foyer.
Past the foyer, the living room (11'-1" × 23'-5"), dining area (8'-8" × 12'-11") and kitchen (8'-8" × 16'-0") run together as one open space. A 4'-5" × 10'-5" mudroom and a 4'-5" × 10'-0" laundry support everyday traffic from the garage. Bedrooms 2 and 3, both about 10'-8" wide, open off a 6'-2" × 21'-11" hall shared with the hall bath. The primary suite measures 14'-7" × 11'-9" and includes an 8'-8" × 8'-8" bath and a 5'-6" × 8'-8" walk-in closet.
Layout highlights
- Open living (11'-1" × 23'-5"), dining and kitchen (8'-8" × 16'-0") share one continuous space.
- Primary suite is 14'-7" × 11'-9" with an 8'-8" × 8'-8" bath and walk-in closet.
- Bedrooms 2 and 3 are 10'-8" × 10'-5" and 10'-8" × 10'-4", off a 21'-11" hall.
- Mudroom (4'-5" × 10'-5") and laundry (4'-5" × 10'-0") sit between the garage and the living areas.
- Footprint of 39'-8" × 52'-6" holds a front 2-car garage of 18'-0" × 20'-10".
Room sizes
| Room | Size | Area |
|---|---|---|
| Foyer | 9'-4" × 7'-0" | 65 sq ft |
| Bedroom 3 | 10'-8" × 10'-4" | 110 sq ft |
| Bedroom 2 | 10'-8" × 10'-5" | 111 sq ft |
| Bedroom Hall | 6'-2" × 21'-11" | 135 sq ft |
| Living Room | 11'-1" × 23'-5" | 260 sq ft |
| Hall Bath | 11'-1" × 5'-6" | 61 sq ft |
| Dining | 8'-8" × 12'-11" | 112 sq ft |
| Kitchen | 8'-8" × 16'-0" | 139 sq ft |
| Primary Bedroom | 14'-7" × 11'-9" | 171 sq ft |
| Primary Bath | 8'-8" × 8'-8" | 75 sq ft |
| Walk-in Closet | 5'-6" × 8'-8" | 48 sq ft |
| 2-Car Garage | 18'-0" × 20'-10" | 374 sq ft |
| Mudroom | 4'-5" × 10'-5" | 46 sq ft |
| Laundry | 4'-5" × 10'-0" | 44 sq ft |
Who this plan suits
This plan suits households that want three bedrooms and two baths on one level, with a front-loading garage and no stairs. It needs a lot at least 40 ft wide, plus room for setbacks and about 52'-6" of depth.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house at most 40 ft wide: 3 bedrooms, 2 baths, open kitchen, dining and living, laundry, 2-car garage at the front, about 1,550 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
