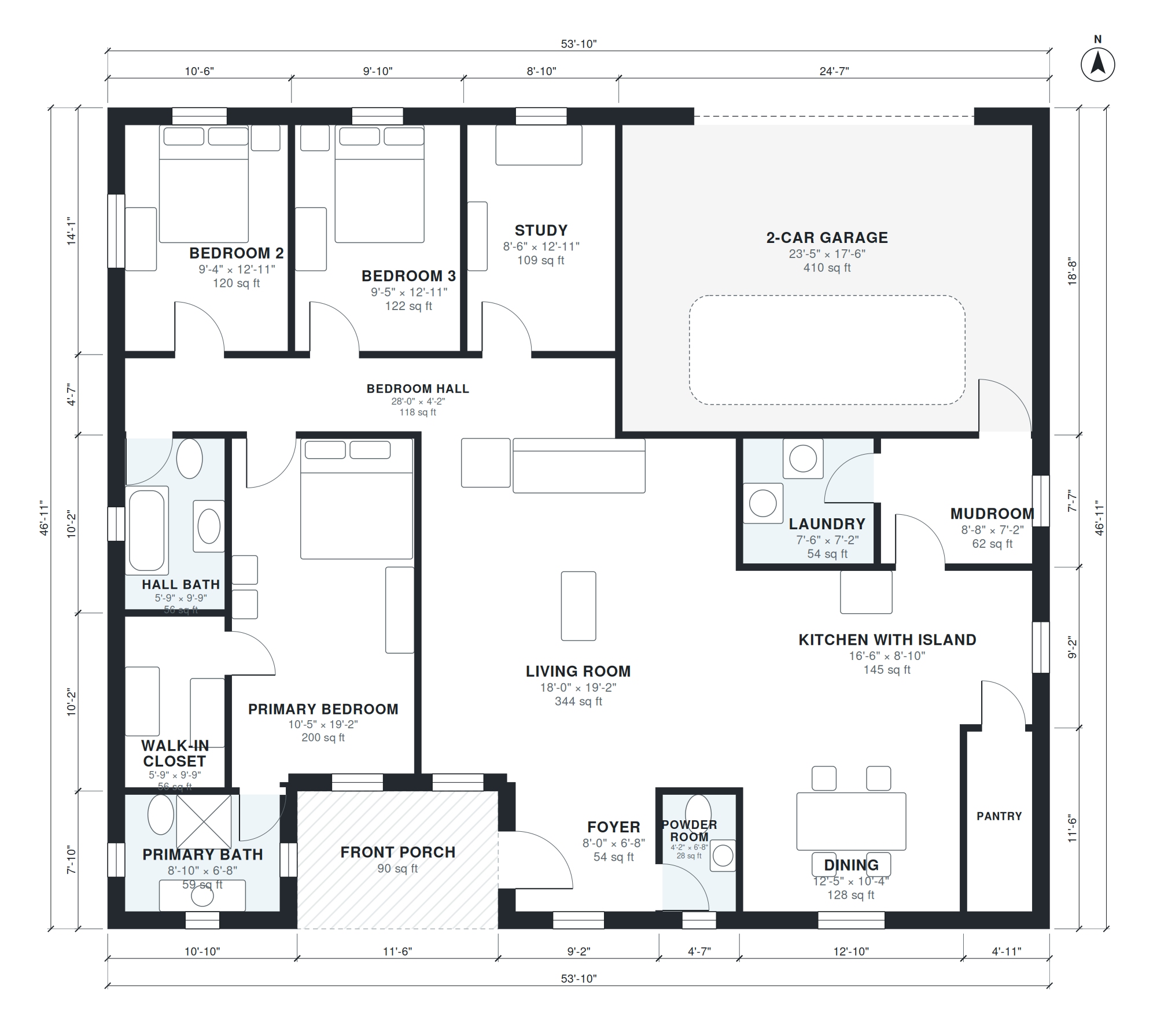

This single-story ranch plan has 1,970 square feet of living space, not counting the garage, within a 53'-10" × 46'-11" footprint. A front porch leads to an 8'-0" × 6'-8" foyer and the 18'-0" × 19'-2" living room. The dining area (12'-5" × 10'-4") sits beside the 16'-6" × 8'-10" kitchen with island, and a 3'-9" × 10'-4" pantry completes the kitchen side of the plan.
The mudroom (8'-8" × 7'-2") and laundry (7'-6" × 7'-2") form the entry from the 2-car garage. A 28'-0" bedroom hall serves Bedroom 2 (9'-4" × 12'-11"), Bedroom 3 (9'-5" × 12'-11"), a study (8'-6" × 12'-11") and the hall bath. The primary bedroom (10'-5" × 19'-2") has an 8'-10" × 6'-8" bath and a 5'-9" × 9'-9" walk-in closet. A 4'-2" × 6'-8" powder room serves guests.
Layout highlights
- Living room measures 18'-0" × 19'-2", the largest room on the single level.
- Kitchen with island (16'-6" × 8'-10") pairs with a 12'-5" × 10'-4" dining area and pantry.
- Mudroom (8'-8" × 7'-2") and laundry (7'-6" × 7'-2") sit at the garage entry.
- Primary suite combines a 10'-5" × 19'-2" bedroom, 8'-10" × 6'-8" bath and walk-in closet.
- Study (8'-6" × 12'-11") sits beside two 12'-11"-deep bedrooms along a 28'-0" hall.
Room sizes
| Room | Size | Area |
|---|---|---|
| Primary Bath | 8'-10" × 6'-8" | 59 sq ft |
| Foyer | 8'-0" × 6'-8" | 54 sq ft |
| Powder Room | 4'-2" × 6'-8" | 28 sq ft |
| Walk-in Closet | 5'-9" × 9'-9" | 56 sq ft |
| Hall Bath | 5'-9" × 9'-9" | 56 sq ft |
| Primary Bedroom | 10'-5" × 19'-2" | 200 sq ft |
| Living Room | 18'-0" × 19'-2" | 344 sq ft |
| Dining | 12'-5" × 10'-4" | 128 sq ft |
| Pantry | 3'-9" × 10'-4" | 39 sq ft |
| Kitchen with Island | 16'-6" × 8'-10" | 145 sq ft |
| Laundry | 7'-6" × 7'-2" | 54 sq ft |
| Mudroom | 8'-8" × 7'-2" | 62 sq ft |
| Bedroom Hall | 28'-0" × 4'-2" | 118 sq ft |
| Bedroom 2 | 9'-4" × 12'-11" | 120 sq ft |
| Bedroom 3 | 9'-5" × 12'-11" | 122 sq ft |
| Study | 8'-6" × 12'-11" | 109 sq ft |
| 2-Car Garage | 23'-5" × 17'-6" | 410 sq ft |
Who this plan suits
This plan suits households that want one-level living with three bedrooms plus a study, and a practical garage entry with mudroom and laundry. It needs a lot that fits the 53'-10" × 46'-11" footprint, plus room for the front porch approach and driveway.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story ranch house, 3 bedrooms, 2.5 baths, open kitchen with island, dining, living, laundry, mudroom, attached 2-car garage, front porch, about 2,000 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 2000 sq ft ranch house plans?
They are single-story homes with roughly 2,000 square feet of heated living space, usually with bedrooms, kitchen and living areas on one level. This plan has 1,970 sq ft of living space, with the 2-car garage not included.
What affects the cost and lot requirements for this plan?
The 53'-10" × 46'-11" footprint sets the minimum lot width and depth before setbacks. A single-story layout spreads the foundation and roof over more area than a two-story home of the same size, so site work, foundation type and local labor and material costs drive the total.
Can I change this plan by chat?
Yes. You can ask for changes such as resizing or swapping rooms, moving the garage to the other side, or fitting a narrower or wider lot. The layout is updated and the room sizes and living area are recalculated.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and permit-set discussions. The DXF opens in CAD software for 2D editing, and the IFC imports into BIM tools such as Revit or ArchiCAD for 3D work. Have a local engineer or architect confirm the plan meets your site and code requirements before construction.
