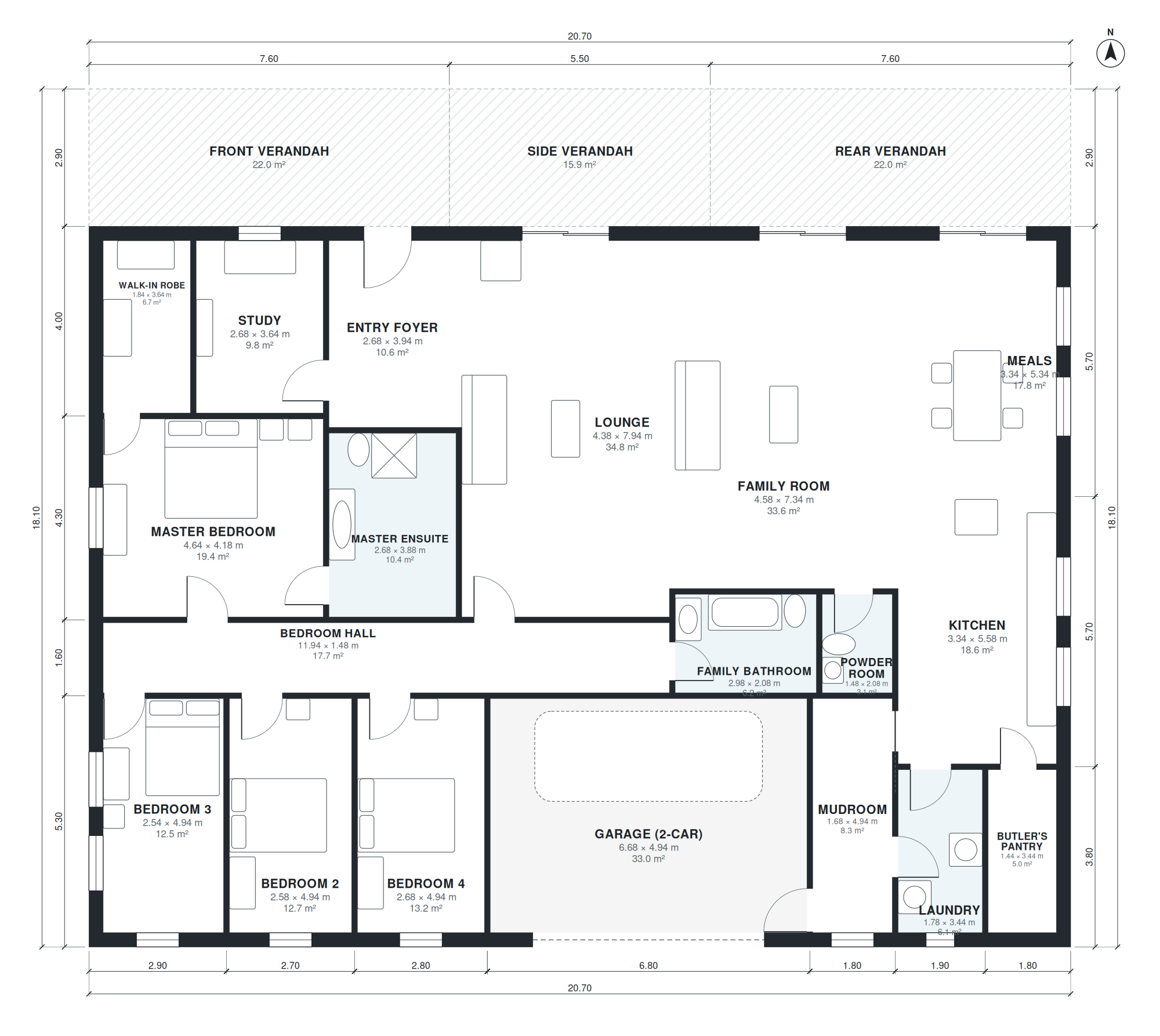

This single-story plan has 3,000 square feet of living space on a 67'-11" × 59'-5" footprint. The 2-car garage (21'-11" × 16'-2") is not counted in that figure. Verandahs wrap the front, one side and the rear, which gives the house a wide, low homestead profile.
Inside, the entry foyer (8'-10" × 12'-11") leads toward the living zone: a family room (15'-0" × 24'-1"), a lounge (14'-4" × 26'-1") and an open kitchen (10'-11" × 18'-4") beside the meals area (10'-11" × 17'-6"). A butler's pantry and laundry sit behind the kitchen, and the mudroom (5'-6" × 16'-2") links the garage to the house. The master suite has a walk-in robe and ensuite, with a study nearby. Bedrooms 2, 3 and 4 open off a 39'-2" hall.
Layout highlights
- Master bedroom is 15'-3" × 13'-9" with a 6'-0" × 11'-11" walk-in robe and ensuite.
- Bedrooms 2, 3 and 4 share a 39'-2" × 4'-10" hall, each room 16'-2" deep.
- Kitchen (10'-11" × 18'-4"), meals, family room and lounge form one connected living zone.
- Mudroom (5'-6" × 16'-2") sits between the 2-car garage and the house.
- Front, side and rear verandahs surround a 67'-11" × 59'-5" single-story footprint.
Room sizes
| Room | Size | Area |
|---|---|---|
| Bedroom 3 | 8'-4" × 16'-2" | 135 sq ft |
| Bedroom 2 | 8'-6" × 16'-2" | 137 sq ft |
| Bedroom 4 | 8'-10" × 16'-2" | 143 sq ft |
| Garage (2-car) | 21'-11" × 16'-2" | 355 sq ft |
| Mudroom | 5'-6" × 16'-2" | 89 sq ft |
| Bedroom Hall | 39'-2" × 4'-10" | 190 sq ft |
| Master Bedroom | 15'-3" × 13'-9" | 209 sq ft |
| Walk-in Robe | 6'-0" × 11'-11" | 72 sq ft |
| Study | 8'-10" × 11'-11" | 105 sq ft |
| Master Ensuite | 8'-10" × 12'-9" | 112 sq ft |
| Entry Foyer | 8'-10" × 12'-11" | 114 sq ft |
| Lounge | 14'-4" × 26'-1" | 374 sq ft |
| Family Bathroom | 9'-9" × 6'-10" | 67 sq ft |
| Powder Room | 4'-10" × 6'-10" | 33 sq ft |
| Family Room | 15'-0" × 24'-1" | 362 sq ft |
| Laundry | 5'-10" × 11'-3" | 66 sq ft |
| Butler's Pantry | 4'-9" × 11'-3" | 53 sq ft |
| Kitchen | 10'-11" × 18'-4" | 201 sq ft |
| Meals | 10'-11" × 17'-6" | 192 sq ft |
Who this plan suits
This plan suits families who want four bedrooms, a study and generous living space on one level, with outdoor living on three sides. It needs a wide lot, since the footprint is 67'-11" × 59'-5" before setbacks, such as a rural or acreage parcel.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 4 bedrooms, 2.5 baths, wide single-storey homestead with verandahs on 3 sides, master suite with ensuite, study, open kitchen with butler's pantry, family, meals and lounge, mudroom, laundry, attached 2-car garage, about 280 m² (3,014 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are acreage house plans?
Acreage house plans are designs for larger rural or semi-rural parcels, where width and outdoor space matter more than a compact footprint. This one is a single-story homestead with verandahs on three sides, so most rooms can open to the outdoors.
What affects the cost and lot requirements of this plan?
The main drivers are the 3,000 sq ft of living space, the 2-car garage, and the verandah roofs on three sides. The single-story layout spreads over a 67'-11" × 59'-5" footprint, so it needs a wide, reasonably level lot. Site works such as driveway length, septic and utilities will vary by parcel.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as moving the garage to the other side, resizing bedrooms or adjusting the layout for a narrower lot. The plan is then regenerated with updated room sizes.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the floor plan and room sizes. The DXF opens in most CAD programs for drafting or surveying work, and the IFC can be imported into BIM software. Have a local architect or engineer check any plan against your site and building code before construction.
