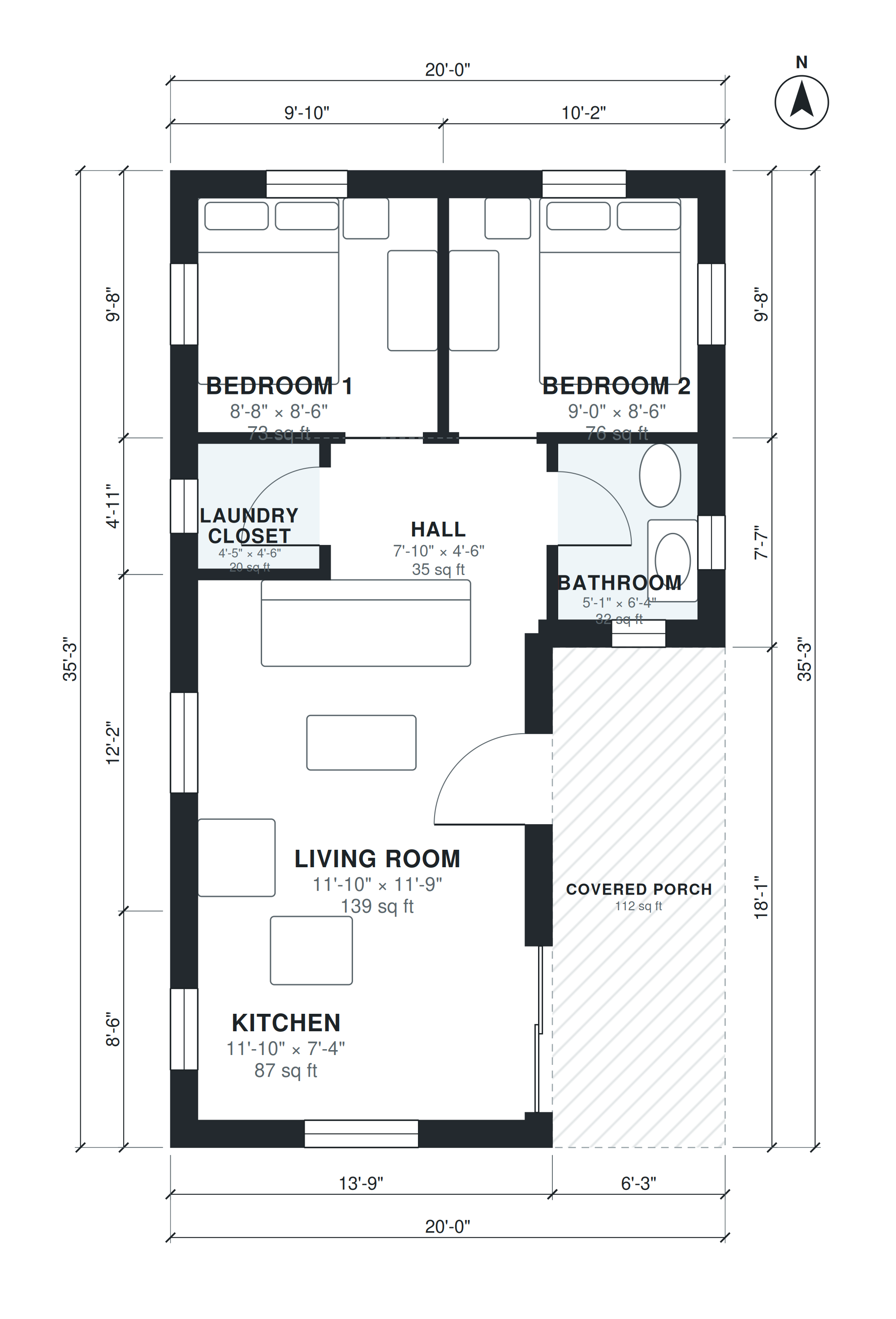

This single-level cabin plan has 590 sq ft of living space, not counting the porch, with two bedrooms and one bathroom. The kitchen (11'-10" × 7'-4") and the living room (11'-10" × 11'-9") share the same width and form one open room about 19 ft long, so cooking and sitting happen in the same space.
A hall (7'-10" × 4'-6") separates the open area from the private rooms. Bedroom 1 measures 8'-8" × 8'-6" and Bedroom 2 measures 9'-0" × 8'-6". The bathroom (5'-1" × 6'-4") and a laundry closet (4'-5" × 4'-6") sit close to both bedrooms. A covered porch extends the cabin at the front, which brings the overall footprint to 20'-0" × 35'-3".
Layout highlights
- Open kitchen (11'-10" × 7'-4") and living room (11'-10" × 11'-9") share one continuous space.
- Bedroom 1 is 8'-8" × 8'-6" and Bedroom 2 is 9'-0" × 8'-6".
- One bathroom, 5'-1" × 6'-4", serves both bedrooms and the living area.
- Laundry closet (4'-5" × 4'-6") keeps the washer and dryer out of the main rooms.
- Covered front porch sits outside the main rectangle; total footprint is 20'-0" × 35'-3".
Room sizes
| Room | Size | Area |
|---|---|---|
| Kitchen | 11'-10" × 7'-4" | 87 sq ft |
| Living Room | 11'-10" × 11'-9" | 139 sq ft |
| Laundry Closet | 4'-5" × 4'-6" | 20 sq ft |
| Hall | 7'-10" × 4'-6" | 35 sq ft |
| Bathroom | 5'-1" × 6'-4" | 32 sq ft |
| Bedroom 1 | 8'-8" × 8'-6" | 73 sq ft |
| Bedroom 2 | 9'-0" × 8'-6" | 76 sq ft |
Who this plan suits
This plan suits a weekend cabin, a guest house or a small full-time home for one to three people who want two separate bedrooms without extra circulation space. It needs a lot that can fit a 20'-0" × 35'-3" footprint with the porch, plus room for access and utilities.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Cabin on a 20 x 30 ft rectangle (600 sq ft): 2 small bedrooms, 1 bath, open kitchen and living, laundry closet, covered front porch outside the rectangle.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 20x30 cabin floor plans?
They are compact cabin layouts built around a rectangle of roughly 20 by 30 ft, usually on one level. This version has 590 sq ft of living space, two bedrooms, one bath and a covered front porch outside the main rectangle.
What affects the cost and lot requirements of this cabin?
The main drivers are the foundation type, the roof structure, the porch, and the plumbing and mechanical runs, which are short here because the bathroom, laundry closet and kitchen are close together. The lot needs to fit the 20'-0" × 35'-3" footprint, plus setbacks, a driveway and a water and septic or sewer connection.
Can I change this plan by chat?
Yes. You can ask for changes such as a different bedroom size, a swapped porch position or a narrower or wider lot, and the layout is updated to match. There is no garage in this plan, but you can ask about adding one to either side.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with a builder or a permit office. The DXF opens in CAD software for drafting and measuring, and the IFC loads into BIM tools for a 3D model. Local codes and structural requirements still need to be checked by a licensed professional before construction.
