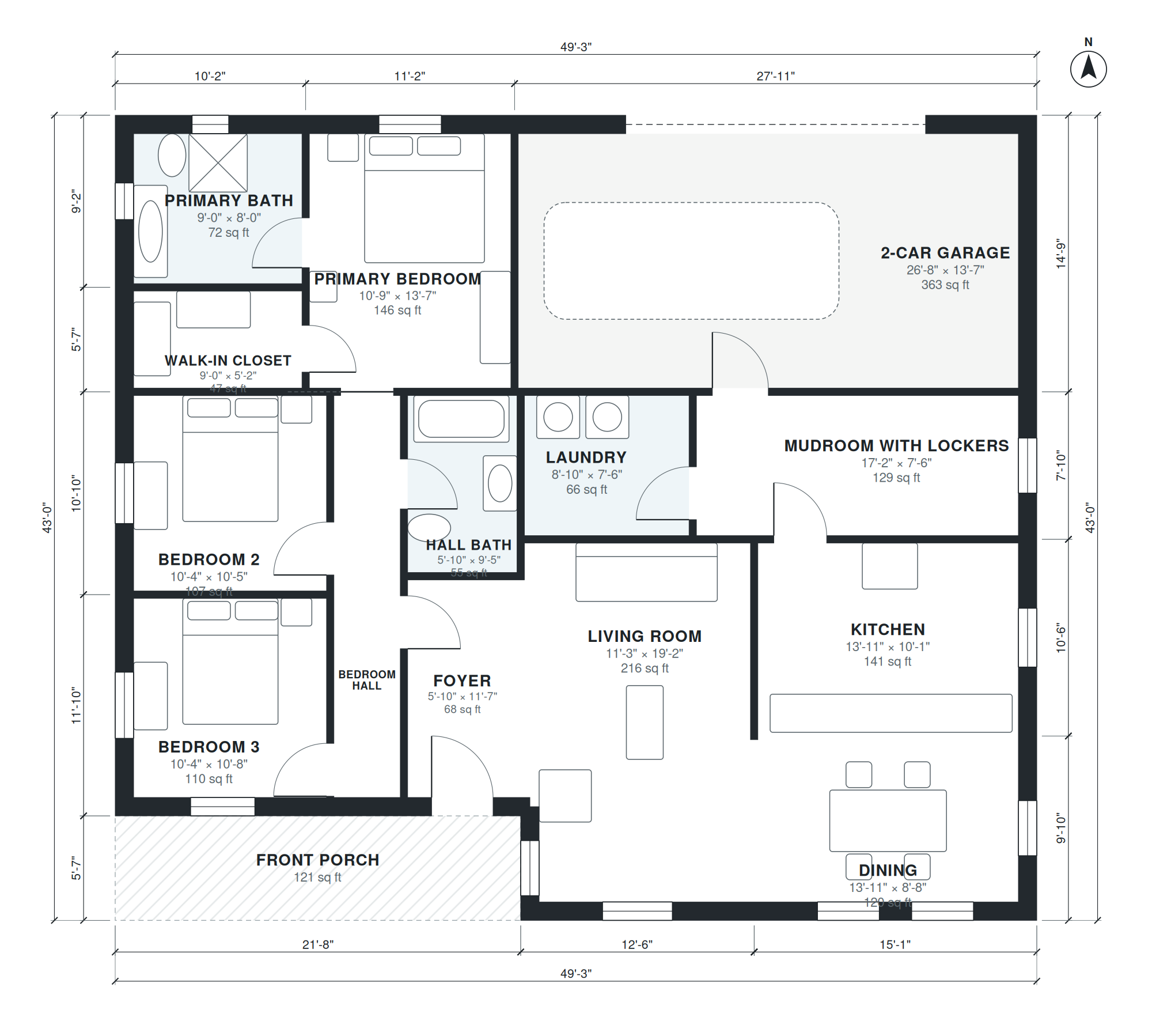

This single-story plan has 1,580 square feet of living space, not counting the garage, with three bedrooms and two baths on a 49'-3" × 43'-0" footprint. The entry sequence is the main feature. The attached 2-car garage, 26'-8" × 13'-7", opens into a 17'-2" × 7'-6" mudroom with lockers, which sits between the garage and the kitchen. Coats, bags and boots stay out of the main living areas.
From the front porch you enter a 5'-10" × 11'-7" foyer, with the living room at 11'-3" × 19'-2". The kitchen (13'-11" × 10'-1") and dining area (13'-11" × 8'-8") share the same 13'-11" width, so cooking and eating sit together. A separate laundry room measures 8'-10" × 7'-6". A 3'-7" × 21'-5" bedroom hall serves Bedroom 2 (10'-4" × 10'-5"), Bedroom 3 (10'-4" × 10'-8") and the 5'-10" × 9'-5" hall bath. The primary bedroom (10'-9" × 13'-7") has a 9'-0" × 8'-0" bath and a 9'-0" × 5'-2" walk-in closet.
Layout highlights
- Mudroom with lockers measures 17'-2" × 7'-6" and sits between the garage and kitchen.
- Attached 2-car garage is 26'-8" × 13'-7", entered through the mudroom.
- Kitchen at 13'-11" × 10'-1" and dining at 13'-11" × 8'-8" share one width.
- Primary suite combines a 10'-9" × 13'-7" bedroom, 9'-0" × 8'-0" bath and 9'-0" × 5'-2" closet.
- Two secondary bedrooms of about 10'-4" × 10'-5" and 10'-4" × 10'-8" share a hall bath.
Room sizes
| Room | Size | Area |
|---|---|---|
| Bedroom 3 | 10'-4" × 10'-8" | 110 sq ft |
| Bedroom 2 | 10'-4" × 10'-5" | 107 sq ft |
| Bedroom Hall | 3'-7" × 21'-5" | 76 sq ft |
| Foyer | 5'-10" × 11'-7" | 68 sq ft |
| Hall Bath | 5'-10" × 9'-5" | 55 sq ft |
| Living Room | 11'-3" × 19'-2" | 216 sq ft |
| Dining | 13'-11" × 8'-8" | 120 sq ft |
| Kitchen | 13'-11" × 10'-1" | 141 sq ft |
| Laundry | 8'-10" × 7'-6" | 66 sq ft |
| Mudroom with Lockers | 17'-2" × 7'-6" | 129 sq ft |
| Walk-in Closet | 9'-0" × 5'-2" | 47 sq ft |
| Primary Bath | 9'-0" × 8'-0" | 72 sq ft |
| Primary Bedroom | 10'-9" × 13'-7" | 146 sq ft |
| 2-Car Garage | 26'-8" × 13'-7" | 363 sq ft |
Who this plan suits
This plan suits households that come and go through the garage every day and want a dedicated place for coats, bags and shoes. It needs a lot that fits the 49'-3" × 43'-0" footprint plus setbacks, with room for the front porch and garage access.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 3 bedrooms, 2 baths, large mudroom with lockers between the garage and the kitchen, open kitchen, dining, living, separate laundry, attached 2-car garage, front porch, about 1,850 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are house plans with a mudroom?
They are home designs with a dedicated room, usually between the garage or back door and the main living space, for storing coats, shoes and bags. In this plan the 17'-2" × 7'-6" mudroom with lockers connects the garage to the kitchen.
What affects the cost and lot requirements of this plan?
The 49'-3" × 43'-0" footprint sets the minimum lot size once local setbacks are added. Cost depends mainly on your region, foundation type, finishes, and the 1,580 sq ft of living space plus the 2-car garage. A local builder should price it with your site conditions.
Can I change this plan by chat?
Yes. You can ask for changes such as moving the garage to the other side, resizing rooms, or adjusting the plan for a narrower or wider lot. The layout is updated and the mudroom connection between the garage and kitchen can be kept.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with a builder or permit office. The DXF opens in CAD software for editing the drawings, and the IFC imports into BIM tools for coordination. Local codes and engineering still need to be checked before construction.
