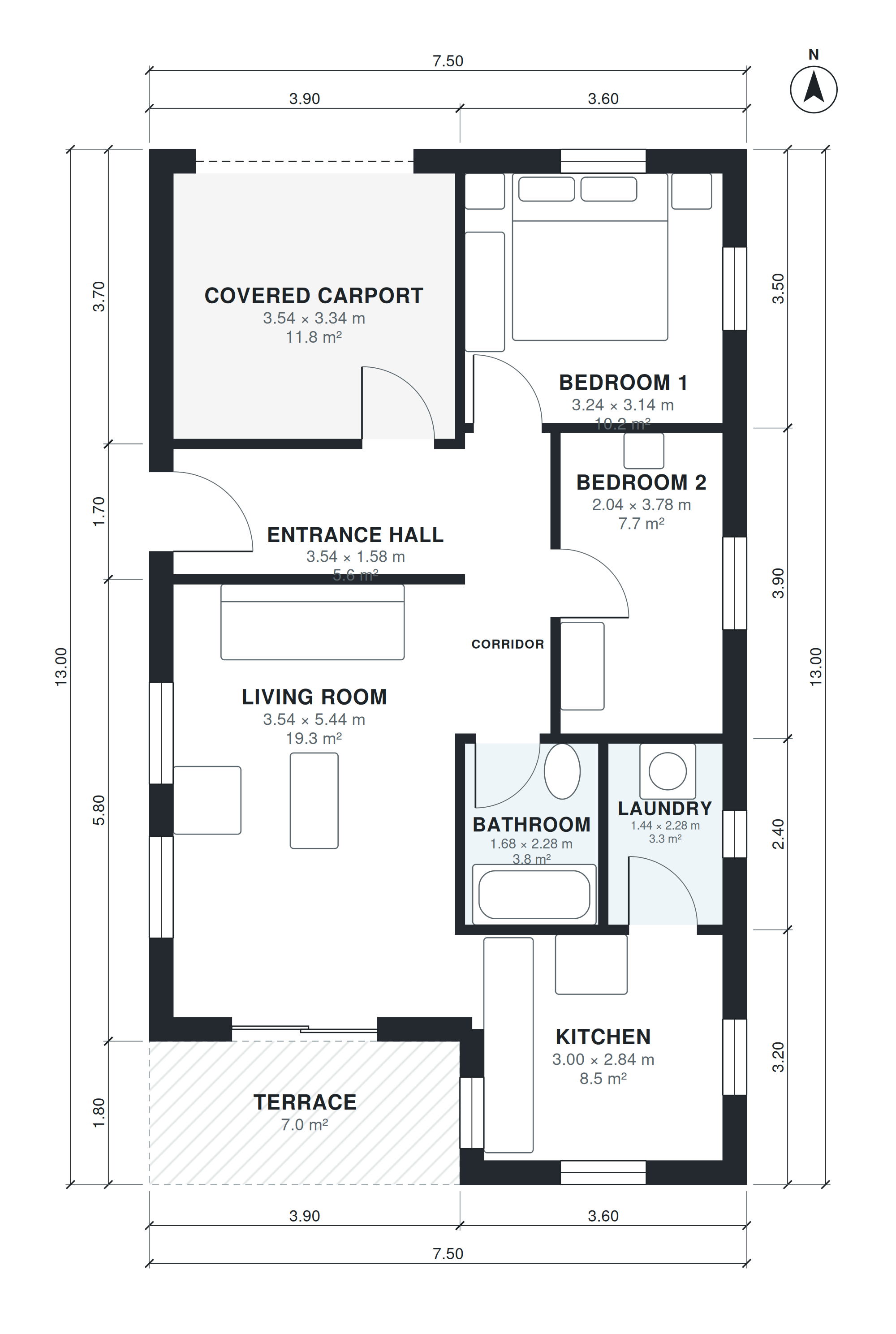

This single-story plan offers 820 sq ft of living space, not counting the carport, inside a footprint of 24'-7" × 42'-8". The long, narrow shape suits a tight lot. A covered carport (11'-7" × 10'-11") sits at the front, followed by an entrance hall (11'-7" × 5'-2") and a living room (11'-7" × 17'-10"). All three share the same 11'-7" width.
The kitchen (9'-10" × 9'-4") sits toward the back with the living room, and a terrace extends the living area outdoors. A corridor (3'-7" × 12'-5") leads to the two bedrooms, the bathroom (5'-6" × 7'-6") and the laundry (4'-9" × 7'-6"). Bedroom 1 measures 10'-8" × 10'-4" and Bedroom 2 measures 6'-8" × 12'-5". There is no basement, and every room is on one level.
Layout highlights
- Covered carport at the front measures 11'-7" × 10'-11" and holds one car.
- Entrance hall (11'-7" × 5'-2") leads into a living room of 11'-7" × 17'-10".
- Kitchen of 9'-10" × 9'-4" sits at the back, next to the living room and terrace.
- Bedroom 1 is 10'-8" × 10'-4"; Bedroom 2 is a narrower 6'-8" × 12'-5".
- Laundry (4'-9" × 7'-6") and bathroom (5'-6" × 7'-6") open off a 3'-7" wide corridor.
Room sizes
| Room | Size | Area |
|---|---|---|
| Living Room | 11'-7" × 17'-10" | 207 sq ft |
| Entrance Hall | 11'-7" × 5'-2" | 60 sq ft |
| Covered Carport | 11'-7" × 10'-11" | 127 sq ft |
| Kitchen | 9'-10" × 9'-4" | 92 sq ft |
| Bathroom | 5'-6" × 7'-6" | 41 sq ft |
| Laundry | 4'-9" × 7'-6" | 35 sq ft |
| Corridor | 3'-7" × 12'-5" | 44 sq ft |
| Bedroom 2 | 6'-8" × 12'-5" | 83 sq ft |
| Bedroom 1 | 10'-8" × 10'-4" | 110 sq ft |
Who this plan suits
This plan suits a couple, a small family or a downsizer who wants two bedrooms and one bath on a single level. It needs a narrow lot at least wide enough for the 24'-7" building width, and deep enough for the 42'-8" length.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 2 bedrooms, 1 bath, long single-story plan, open kitchen and living at the back, laundry, terrace, covered carport for 1 car at the front, about 75 m² (807 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement; the building is at most 8 m wide (narrow plot).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 8 meter wide house plans?
They are house plans designed so the building is no wider than about 8 meters, which makes them workable on narrow urban or suburban lots. Rooms are arranged along the length of the lot instead of side by side. This plan measures 24'-7" × 42'-8" and holds 820 sq ft of living space.
What affects the lot and building cost of this plan?
The main drivers are lot depth, since the plan is 42'-8" long, and local setbacks along both side boundaries. Foundation type, finishes and utility connections to the kitchen, bathroom and laundry also affect the cost. The covered carport adds roof and slab area that is not counted in the 820 sq ft of living space.
Can I change this plan by chat?
Yes. You can ask to resize rooms, swap the bedroom positions, move the carport to another side, or fit a different lot width. The layout is regenerated, and the room sizes and living area update to match.
How do I use the PDF, DXF and IFC files?
The PDF is for reading and sharing the floor plan with a builder or designer. The DXF opens in CAD software for editing the 2D drawing. The IFC file imports into BIM tools so you can work with the model in 3D. Local codes still need to be checked by a licensed professional before construction.
