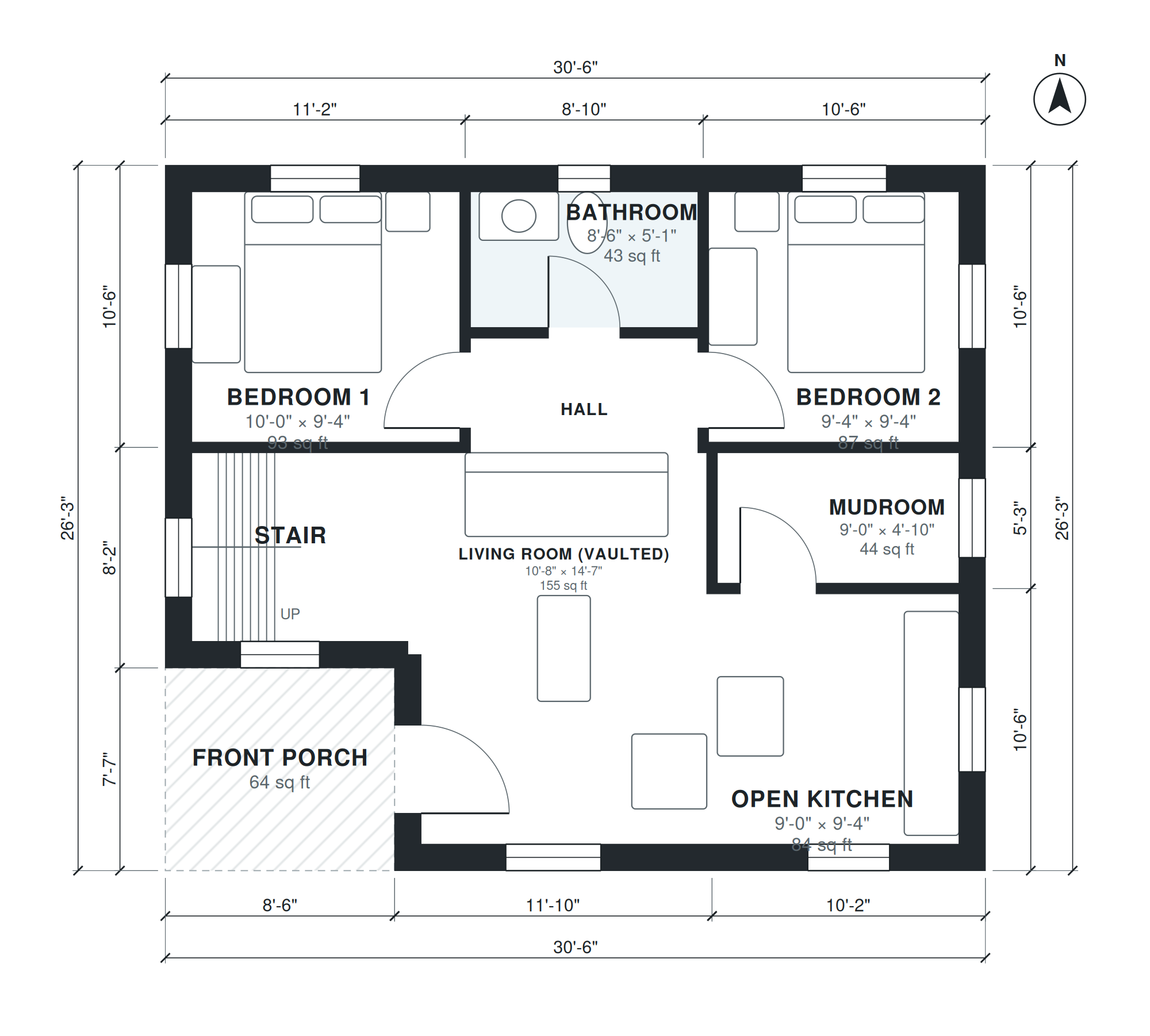

This 2 bedroom cabin with loft fits 1,030 sq ft of living space into a 30'-6" × 26'-3" footprint over two levels. A front porch leads inside, and a mudroom (9'-0" × 4'-10") handles boots and coats at the entry. The open kitchen (9'-0" × 9'-4") sits next to the vaulted living room (10'-8" × 14'-7"), so cooking, sitting and the stair share one open space.

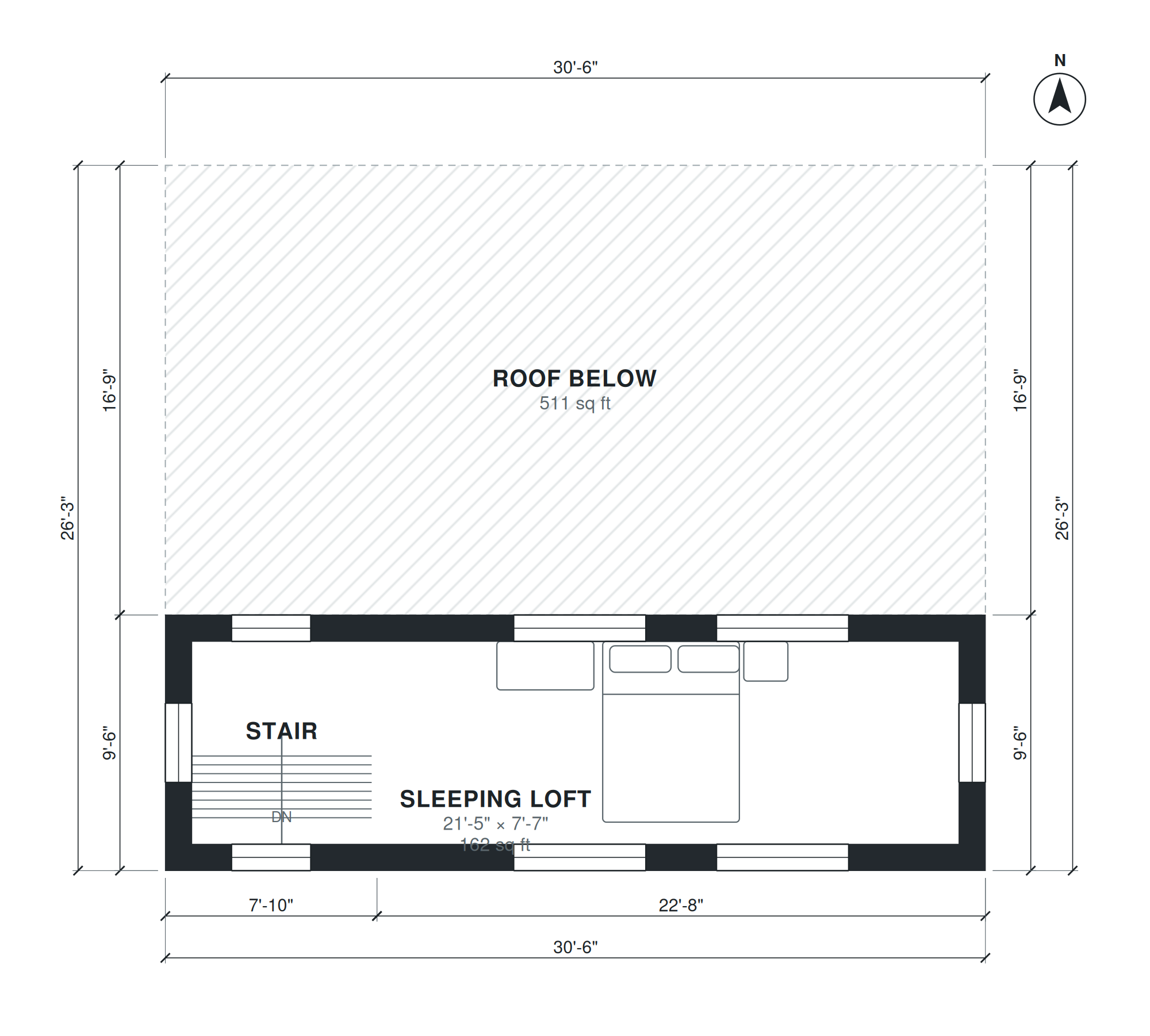

A short hall (8'-6" × 3'-10") connects the two ground-floor bedrooms, 10'-0" × 9'-4" and 9'-4" × 9'-4", with the single bathroom (8'-6" × 5'-1"). The stair (7'-4" × 7'-0") rises to an open sleeping loft of 21'-5" × 7'-7" above the bedrooms, with a 6'-8" × 7'-7" stair landing. The vaulted living room keeps the main space open to the roof line.
Layout highlights
- Vaulted living room of 10'-8" × 14'-7" opens up the main space.
- Open kitchen of 9'-0" × 9'-4" sits beside the living room.
- Two ground-floor bedrooms, 10'-0" × 9'-4" and 9'-4" × 9'-4", share one hall.
- Sleeping loft of 21'-5" × 7'-7" sits over the bedrooms.
- Mudroom of 9'-0" × 4'-10" and a front porch organize the entry.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 7'-4" × 7'-0" | 52 sq ft |
| Living Room (vaulted) | 1 | 10'-8" × 14'-7" | 155 sq ft |
| Open Kitchen | 1 | 9'-0" × 9'-4" | 84 sq ft |
| Mudroom | 1 | 9'-0" × 4'-10" | 44 sq ft |
| Bedroom 1 | 1 | 10'-0" × 9'-4" | 93 sq ft |
| Hall | 1 | 8'-6" × 3'-10" | 33 sq ft |
| Bathroom | 1 | 8'-6" × 5'-1" | 43 sq ft |
| Bedroom 2 | 1 | 9'-4" × 9'-4" | 87 sq ft |
| Stair | 2 | 6'-8" × 7'-7" | 51 sq ft |
| Sleeping Loft | 2 | 21'-5" × 7'-7" | 162 sq ft |
Who this plan suits
This plan suits couples, small families or weekend owners who want two bedrooms plus extra sleeping space in about 1,030 sq ft. It needs a lot that fits a 30'-6" × 26'-3" footprint plus the front porch, with no garage included.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Cabin with a sleeping loft: ground floor 2 bedrooms, 1 bath, open kitchen and living with vaulted part under the loft, mudroom; upstairs open loft over the bedrooms, about 1,000 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What is a 2 bedroom cabin with loft?
It is a compact cabin with two bedrooms plus an open loft used for extra sleeping or flexible space. In this plan the bedrooms are on the ground floor and the loft sits above them, reached by a stair.
What affects the cost and lot needs of this plan?
The 30'-6" × 26'-3" footprint keeps foundation and roof area modest, while the vaulted living room and the second-level loft add framing work. The lot must fit the footprint and porch, and local setbacks and soil conditions will also affect cost.
Can I change this plan by chat?
Yes. You can ask for changes such as different room sizes, a different bedroom layout or a narrower or wider lot. A garage can also be requested, since this version does not include one. The plan is updated to match your request.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with builders or permit offices. The DXF opens in CAD software for drawing edits, and the IFC imports into BIM tools for 3D coordination. Local codes and engineering still need to be checked before construction.
