This two-story plan stacks four 40 ft containers, two per floor, on a 16'-0" × 40'-0" footprint with 1,280 sq ft of living space. On the ground floor, the entry (5'-5" × 10'-11") leads to a 14'-1" × 15'-0" living room. The kitchen and dining area (14'-1" × 11'-3") sits alongside it, so the main living space reads as one open zone. An 8'-3" × 3'-10" powder room is on this level, which means guests do not need to go upstairs.

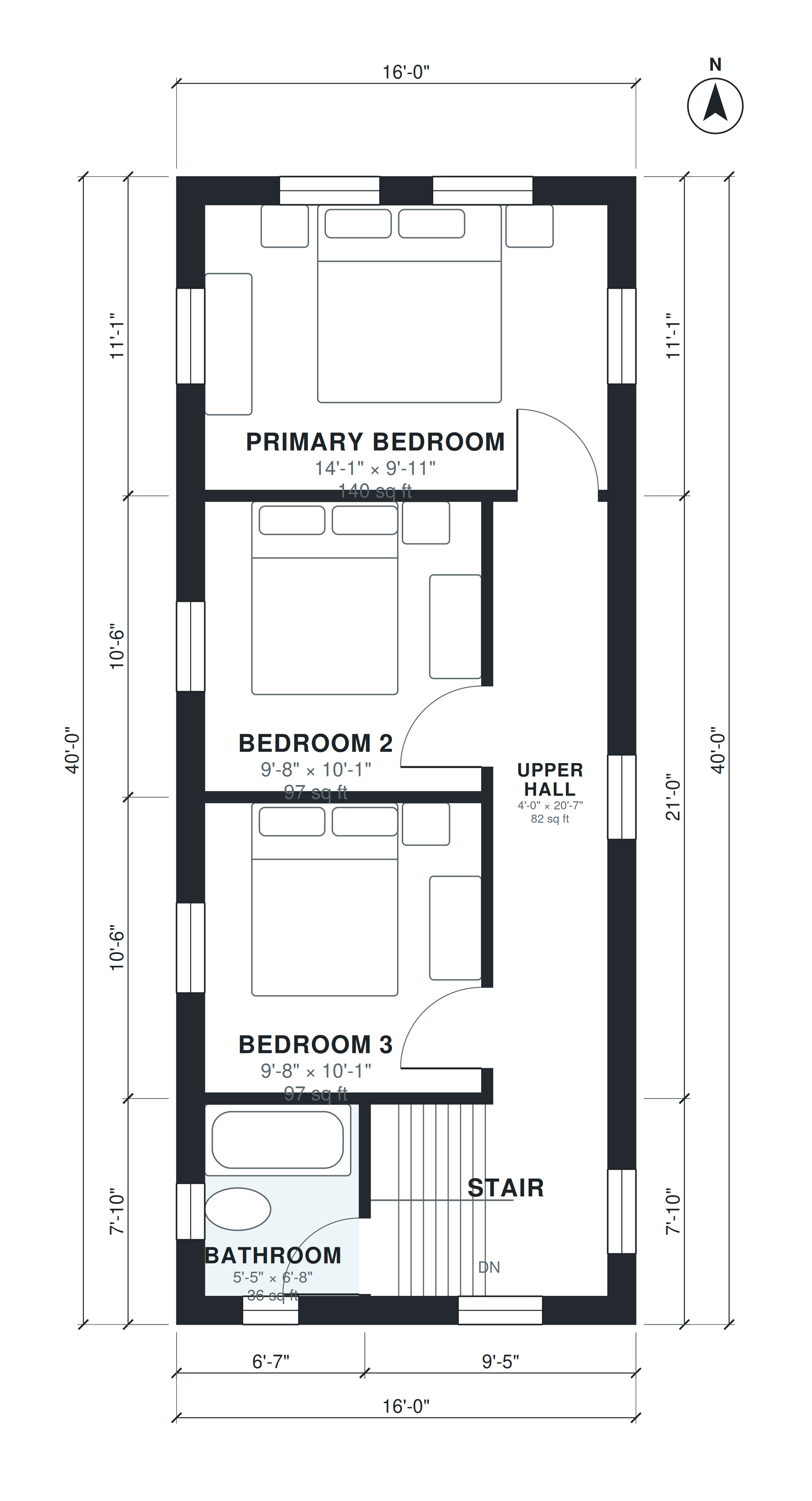

The stair (8'-3" × 6'-8") lands on a 4'-0" × 20'-7" upper hall that serves every room on the second floor. The primary bedroom measures 14'-1" × 9'-11". Bedrooms 2 and 3 are each 9'-8" × 10'-1", and the 5'-5" × 6'-8" bathroom serves the bedrooms from the hall. The plan has 3 bedrooms and 1.5 baths, with no garage.
Layout highlights
- Four 40 ft containers, two per level, make a compact 16'-0" × 40'-0" footprint.
- Living room (14'-1" × 15'-0") and kitchen/dining (14'-1" × 11'-3") share one open ground floor.
- Ground-floor powder room (8'-3" × 3'-10") keeps guests off the stairs.
- Primary bedroom is 14'-1" × 9'-11"; bedrooms 2 and 3 are 9'-8" × 10'-1" each.
- A 4'-0" × 20'-7" upper hall connects all three bedrooms and the 5'-5" × 6'-8" bathroom.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Entry | 1 | 5'-5" × 10'-11" | 59 sq ft |
| Stair | 1 | 8'-3" × 6'-8" | 55 sq ft |
| Powder Room | 1 | 8'-3" × 3'-10" | 32 sq ft |
| Living Room | 1 | 14'-1" × 15'-0" | 211 sq ft |
| Kitchen / Dining | 1 | 14'-1" × 11'-3" | 158 sq ft |
| Stair | 2 | 8'-3" × 6'-8" | 55 sq ft |
| Bedroom 3 | 2 | 9'-8" × 10'-1" | 97 sq ft |
| Bedroom 2 | 2 | 9'-8" × 10'-1" | 97 sq ft |
| Upper Hall | 2 | 4'-0" × 20'-7" | 82 sq ft |
| Primary Bedroom | 2 | 14'-1" × 9'-11" | 140 sq ft |
| Bathroom | 2 | 5'-5" × 6'-8" | 36 sq ft |
Who this plan suits
This plan suits small households or families who want three bedrooms in 1,280 sq ft and a simple, repeatable container layout. It needs a lot that fits a 16 ft by 40 ft footprint plus room for crane access and setbacks, with no garage included.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story container home made of four 40 ft containers, two on each floor (16 x 40 ft footprint, 1,280 sq ft): ground floor open kitchen, dining, living, powder room; upstairs 3 bedrooms and a bath.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 3 bedroom container home plans?
They are house plans that build a three-bedroom home from shipping containers, usually 20 ft or 40 ft long. This version uses four 40 ft containers, two on each floor, for 1,280 sq ft of living space. The ground floor holds the shared rooms and the upper floor holds the bedrooms.
What affects the lot and cost of building this plan?
The 16'-0" × 40'-0" footprint is narrow, so the lot needs enough width for setbacks and crane or truck access during delivery. Cost depends mainly on foundation type, container modification and insulation, stacking and structural connections, and local code requirements. Get local quotes, since these vary widely by region.
Can I change this plan by chat?
Yes. You can describe changes in the chat, such as different room sizes, a bedroom moved to the ground floor, or a narrower or wider lot, and the plan is regenerated to match. Changes to the container layout may affect the footprint, so check the updated sizes before you commit.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the layout and sharing it with others. The DXF opens in CAD software for drafting and detailing. The IFC imports into BIM tools so an architect or engineer can build on the model. Local permits still require stamped drawings from a licensed professional.
