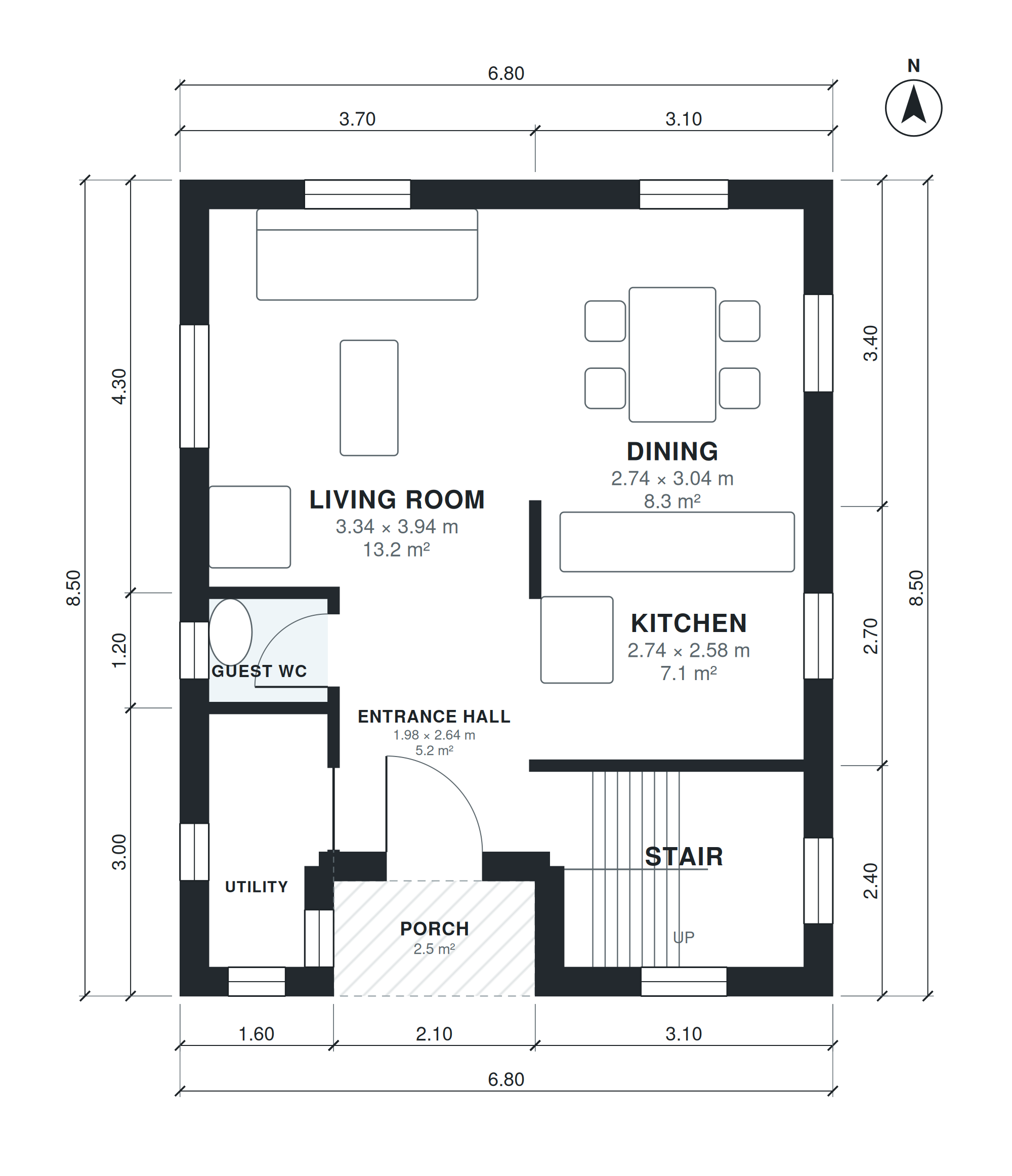

This two-story plan fits a 22'-4" × 27'-11" footprint and provides 1,220 sq ft of living space across two levels. It has no garage and no basement. A porch leads into a 6'-6" × 8'-8" entrance hall. The ground floor also holds a guest WC (4'-1" × 3'-7") and a utility room (3'-3" × 8'-8").

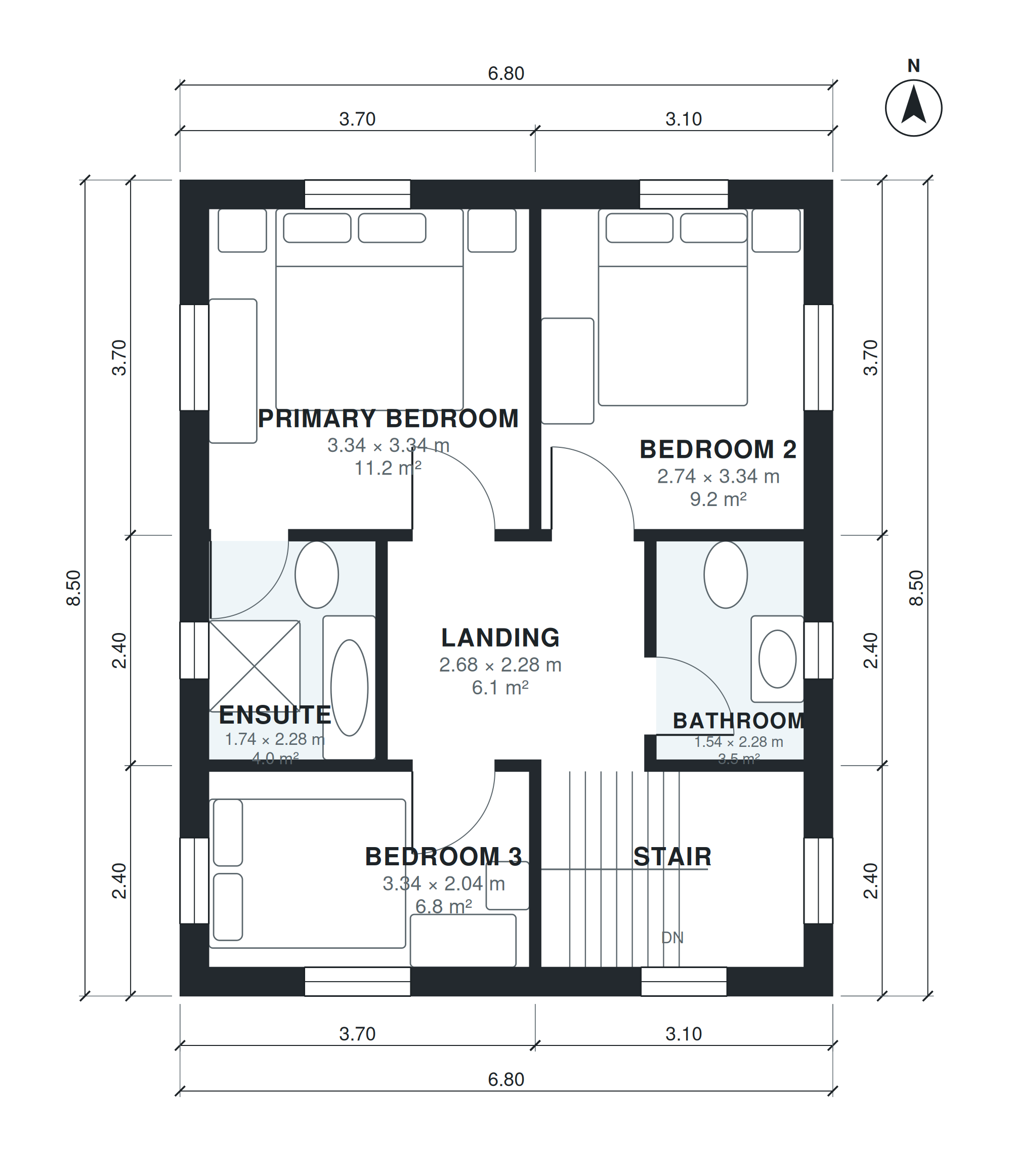

The living room (10'-11" × 12'-11"), dining area (9'-0" × 10'-0") and kitchen (9'-0" × 8'-6") make up the main living zone. A stair (8'-2" × 6'-8") rises to an 8'-10" × 7'-6" landing upstairs. The primary bedroom (10'-11" × 10'-11") has its own ensuite (5'-9" × 7'-6"). Bedroom 2 (9'-0" × 10'-11"), bedroom 3 (10'-11" × 6'-8") and a shared bathroom (5'-1" × 7'-6") complete the upper floor.
Layout highlights
- Living room of 10'-11" × 12'-11" is the largest room on the ground floor.
- Kitchen (9'-0" × 8'-6") and dining (9'-0" × 10'-0") share the same 9'-0" width.
- Guest WC and 3'-3" × 8'-8" utility room keep the ground floor practical.
- Primary bedroom of 10'-11" × 10'-11" has a 5'-9" × 7'-6" ensuite.
- Bedroom 2 (9'-0" × 10'-11") and bedroom 3 (10'-11" × 6'-8") share a 5'-1" × 7'-6" bathroom.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Utility | 1 | 3'-3" × 8'-8" | 28 sq ft |
| Guest WC | 1 | 4'-1" × 3'-7" | 14 sq ft |
| Entrance Hall | 1 | 6'-6" × 8'-8" | 56 sq ft |
| Living Room | 1 | 10'-11" × 12'-11" | 142 sq ft |
| Stair | 1 | 8'-2" × 6'-8" | 55 sq ft |
| Kitchen | 1 | 9'-0" × 8'-6" | 76 sq ft |
| Dining | 1 | 9'-0" × 10'-0" | 90 sq ft |
| Stair | 2 | 9'-0" × 6'-8" | 60 sq ft |
| Ensuite | 2 | 5'-9" × 7'-6" | 43 sq ft |
| Landing | 2 | 8'-10" × 7'-6" | 66 sq ft |
| Bathroom | 2 | 5'-1" × 7'-6" | 38 sq ft |
| Primary Bedroom | 2 | 10'-11" × 10'-11" | 120 sq ft |
| Bedroom 2 | 2 | 9'-0" × 10'-11" | 99 sq ft |
| Bedroom 3 | 2 | 10'-11" × 6'-8" | 73 sq ft |
Who this plan suits
This plan suits a small household or family that wants three bedrooms and 2.5 baths on a narrow plot, without a garage or basement. The lot must fit the 22'-4" × 27'-11" footprint plus the setbacks your local rules require.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 3 bedrooms, 2 baths, ground floor kitchen, dining, living, guest WC, utility; upstairs 3 bedrooms, bath and ensuite, about 115 m² (1,238 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement; the building is at most 7 m wide (narrow plot).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 7 meter wide house plans?
They are house plans where the building is no more than 7 m wide, so they fit narrow urban and suburban plots. This one packs 1,220 sq ft of living space into two levels, with compact rooms stacked along the length of the lot.
What affects the lot and building cost of this plan?
The lot needs to fit the 22'-4" × 27'-11" footprint plus side and front setbacks. Local labor, finishes, soil conditions and site work usually drive cost more than the plan itself. The compact two-story shape and the absence of a basement and garage keep the structure simple.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing rooms, adding a garage on a chosen side or adjusting the plan for a different lot width. The layout is regenerated so the rooms still connect.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with builders or planning authorities. The DXF opens in CAD software for 2D drafting and edits. The IFC loads into BIM tools for a 3D model you can check against your site and local requirements.
