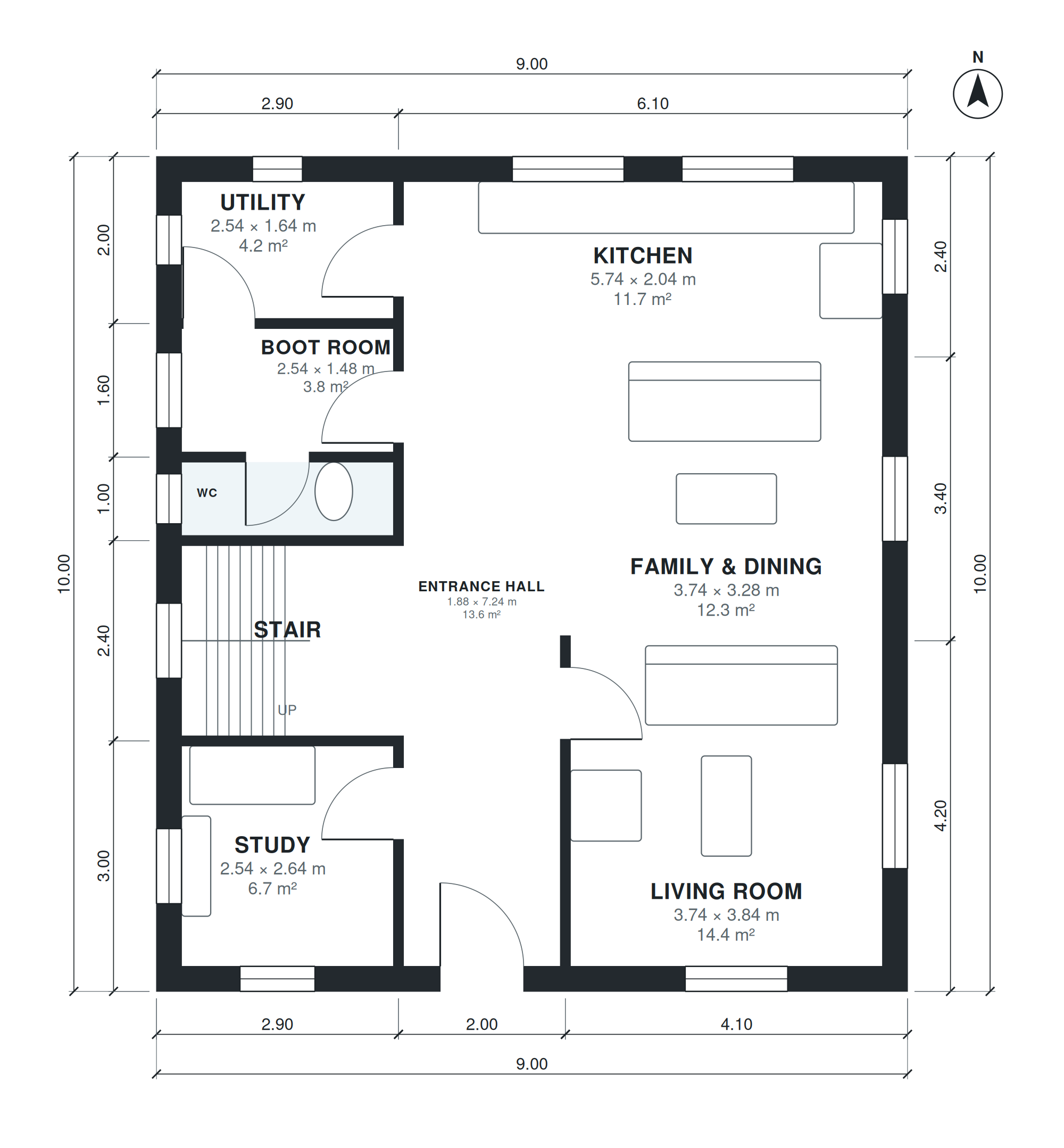

This two-story plan uses a plain rectangular footprint of 29'-6" × 32'-10", with 1,940 sq ft of living space across two levels. There is no basement and no garage. On the ground floor, a 23'-9" entrance hall serves the living room (12'-3" × 12'-7"), the study (8'-4" × 8'-8"), and the family and dining room (12'-3" × 10'-9"), which sits next to the 18'-10" × 6'-8" kitchen.

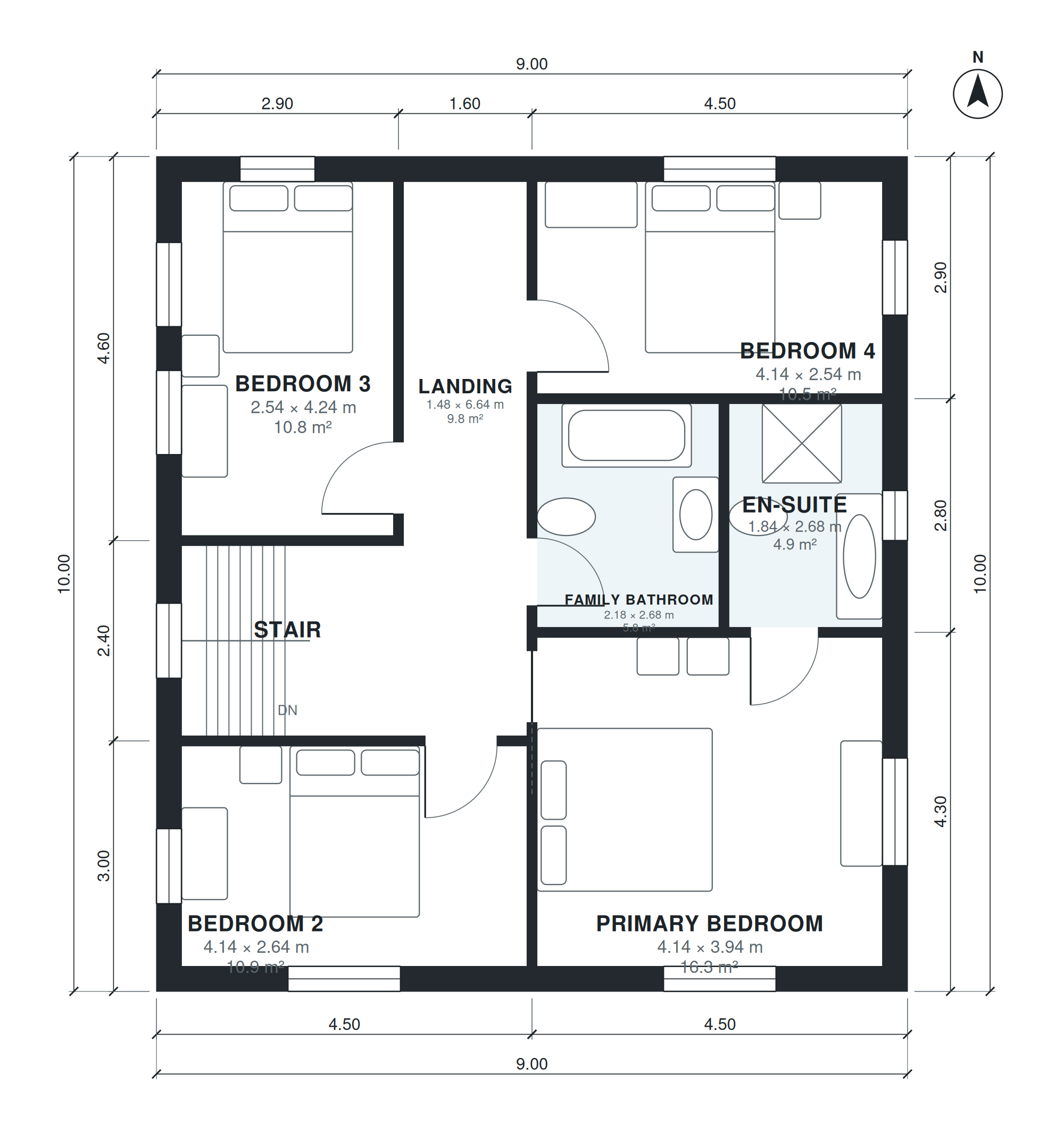

The service rooms share an 8'-4" width: boot room (4'-10" deep), utility (5'-5" deep), and WC (2'-11" deep). The stair (8'-4" × 7'-6") rises to a 4'-10" × 21'-9" landing that reaches all four bedrooms. The primary bedroom is 13'-7" × 12'-11" with an en-suite of 6'-0" × 8'-10". Bedrooms 2 and 4 are each 13'-7" long, bedroom 3 is 8'-4" × 13'-11", and the family bathroom is 7'-2" × 8'-10".
Layout highlights
- Rectangular 29'-6" × 32'-10" footprint keeps framing, roofing, and setting out straightforward.
- Kitchen at 18'-10" × 6'-8" runs alongside the 12'-3" × 10'-9" family and dining room.
- Separate living room (12'-3" × 12'-7") and study (8'-4" × 8'-8") give two quieter spaces.
- Boot room, utility, and WC share an 8'-4" width near the entrance hall.
- Primary bedroom of 13'-7" × 12'-11" has its own 6'-0" × 8'-10" en-suite.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 8'-4" × 7'-6" | 62 sq ft |
| Entrance Hall | 1 | 6'-2" × 23'-9" | 147 sq ft |
| Living Room | 1 | 12'-3" × 12'-7" | 155 sq ft |
| Family & Dining | 1 | 12'-3" × 10'-9" | 132 sq ft |
| Kitchen | 1 | 18'-10" × 6'-8" | 126 sq ft |
| Study | 1 | 8'-4" × 8'-8" | 72 sq ft |
| WC | 1 | 8'-4" × 2'-11" | 24 sq ft |
| Boot Room | 1 | 8'-4" × 4'-10" | 40 sq ft |
| Utility | 1 | 8'-4" × 5'-5" | 45 sq ft |
| Bedroom 2 | 2 | 13'-7" × 8'-8" | 118 sq ft |
| Stair | 2 | 8'-4" × 7'-6" | 62 sq ft |
| Bedroom 3 | 2 | 8'-4" × 13'-11" | 116 sq ft |
| Landing | 2 | 4'-10" × 21'-9" | 106 sq ft |
| Primary Bedroom | 2 | 13'-7" × 12'-11" | 176 sq ft |
| Family Bathroom | 2 | 7'-2" × 8'-10" | 63 sq ft |
| En-suite | 2 | 6'-0" × 8'-10" | 53 sq ft |
| Bedroom 4 | 2 | 13'-7" × 8'-4" | 113 sq ft |
Who this plan suits
This plan suits families who want four bedrooms and a study in a compact, buildable shape, and who plan to manage or carry out much of the build themselves. It needs a lot that fits the 29'-6" × 32'-10" footprint plus setbacks, and it has no garage or basement.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 4 bedrooms, 2.5 baths, simple rectangular footprint for an easy self build: ground floor open kitchen-dining-family room, living room, study, WC, utility, boot room; first floor 4 bedrooms, en-suite and bathroom, about 180 m² (1,938 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
