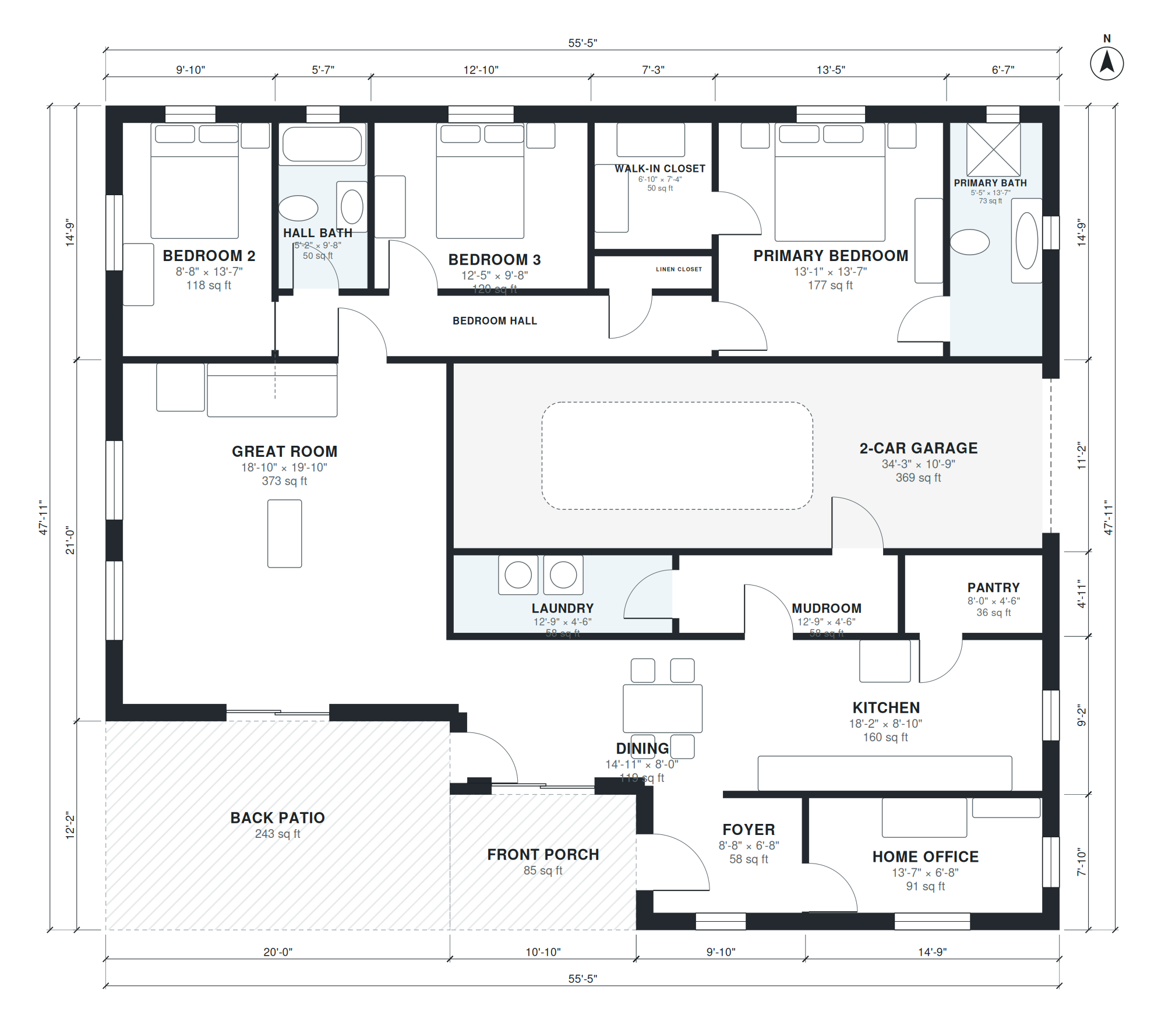

This modern ranch house plan places 1,930 square feet of living space on one level, within a footprint of 55'-5" × 47'-11". The foyer (8'-8" × 6'-8") leads into the great room, which measures 18'-10" × 19'-10" and shares its space with the kitchen (18'-2" × 8'-10") and the dining area (14'-11" × 8'-0"). The living spaces face the back patio, and a front porch marks the entry.
Service rooms include a mudroom and a laundry, each 12'-9" × 4'-6", plus an 8'-0" × 4'-6" pantry. A home office (13'-7" × 6'-8") gives you a dedicated workspace. The bedrooms are grouped along a 25'-2" hall: Bedroom 2 (8'-8" × 13'-7"), Bedroom 3 (12'-5" × 9'-8") and the primary bedroom (13'-1" × 13'-7"). The primary bedroom has a walk-in closet and a private bath. A hall bath and a linen closet serve the other two bedrooms.
Layout highlights
- Great room of 18'-10" × 19'-10" opens to the kitchen and dining area
- Kitchen of 18'-2" × 8'-10" has an adjoining 8'-0" × 4'-6" pantry
- Primary bedroom of 13'-1" × 13'-7" includes a 6'-10" × 7'-4" walk-in closet
- Bedrooms 2 and 3 share a 5'-2" × 9'-8" hall bath along a 25'-2" hall
- Home office of 13'-7" × 6'-8" and a separate laundry and mudroom, each 12'-9" × 4'-6"
Room sizes
| Room | Size | Area |
|---|---|---|
| Great Room | 18'-10" × 19'-10" | 373 sq ft |
| Foyer | 8'-8" × 6'-8" | 58 sq ft |
| Home Office | 13'-7" × 6'-8" | 91 sq ft |
| Dining | 14'-11" × 8'-0" | 119 sq ft |
| Kitchen | 18'-2" × 8'-10" | 160 sq ft |
| Laundry | 12'-9" × 4'-6" | 58 sq ft |
| Mudroom | 12'-9" × 4'-6" | 58 sq ft |
| Pantry | 8'-0" × 4'-6" | 36 sq ft |
| 2-Car Garage | 34'-3" × 10'-9" | 369 sq ft |
| Bedroom 2 | 8'-8" × 13'-7" | 118 sq ft |
| Bedroom Hall | 25'-2" × 3'-7" | 89 sq ft |
| Hall Bath | 5'-2" × 9'-8" | 50 sq ft |
| Bedroom 3 | 12'-5" × 9'-8" | 120 sq ft |
| Linen Closet | 6'-10" × 1'-11" | 13 sq ft |
| Walk-in Closet | 6'-10" × 7'-4" | 50 sq ft |
| Primary Bedroom | 13'-1" × 13'-7" | 177 sq ft |
| Primary Bath | 5'-5" × 13'-7" | 73 sq ft |
Who this plan suits
This plan suits households that want one-level living with three bedrooms, a home office and an open main living area. It needs a lot wide enough for a 55'-5" × 47'-11" footprint plus setbacks, with the back of the house facing the yard.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Modern ranch house, single story, 3 bedrooms, 2 baths, large open kitchen, dining and living with a wall of glass to the back patio, home office, laundry, 2-car garage, low-pitch roof, about 1,900 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are modern ranch house plans?
Modern ranch house plans are single-story homes with a low-pitch roof, a simple horizontal form and large areas of glass. This plan follows that approach with 1,930 square feet of living space on one level and an open great room facing the back patio.
What affects the cost and lot requirements of this plan?
The 55'-5" × 47'-11" footprint sets the minimum lot size once you add setbacks. Cost depends mostly on your local labor and material rates, foundation type, roof and glazing choices, and finishes. A single-story layout means a larger foundation and roof area than a two-story home of similar size.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing rooms, moving the garage to the other side or adjusting the plan for a narrower lot. The layout is then regenerated so the rooms still connect.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and printing. The DXF opens in CAD software for drafting and detailing. The IFC file imports into BIM tools so a designer or builder can work with the model. Have a local professional check the plan against your site and code requirements before construction.
