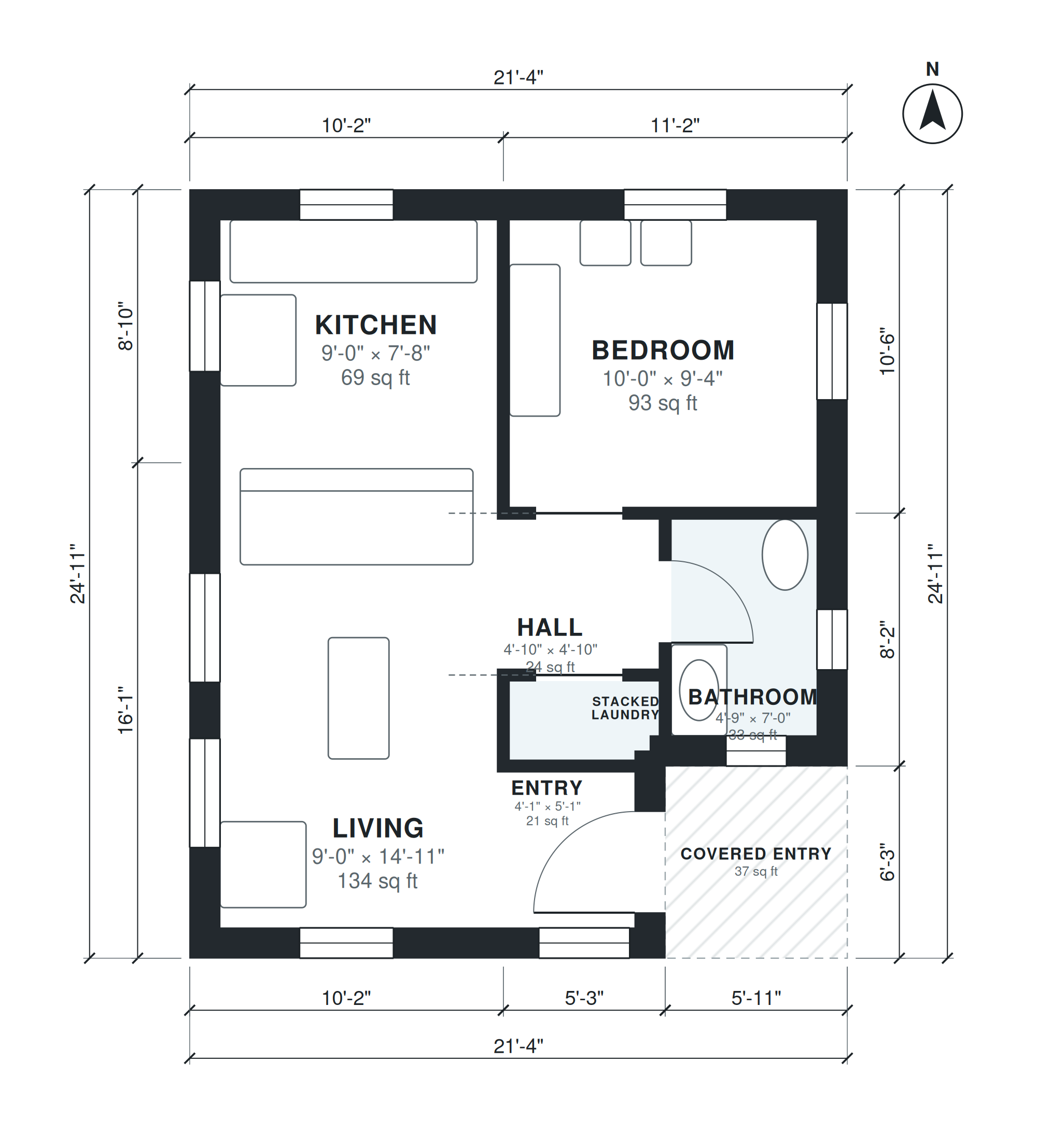

This backyard ADU plan provides 490 sq ft of living space on a single level, within a 21'-4" × 24'-11" footprint. A small covered entry leads to a 4'-1" × 5'-1" entry, which opens into the living room at 9'-0" × 14'-11". The kitchen, 9'-0" × 7'-8", shares that open space, so cooking, dining and sitting happen in one connected room.
A compact 4'-10" × 4'-10" hall links the private rooms to the main living area. Off the hall are the 4'-9" × 7'-0" bathroom and the stacked laundry, which measures 4'-10" × 2'-7". The bedroom, 10'-0" × 9'-4", completes the plan with enough floor area for a bed and storage. There is no garage, and every square foot is assigned to a room, which keeps the unit simple to frame and to furnish.
Layout highlights
- Open living room at 9'-0" × 14'-11" connects directly to the kitchen.
- Kitchen at 9'-0" × 7'-8" shares the open space with the living area.
- Stacked laundry at 4'-10" × 2'-7" sits close to the bathroom and hall.
- Bedroom at 10'-0" × 9'-4" is reached from a 4'-10" × 4'-10" hall.
- Covered entry and 4'-1" × 5'-1" foyer protect the door within a 21'-4" × 24'-11" footprint.
Room sizes
| Room | Size | Area |
|---|---|---|
| Living | 9'-0" × 14'-11" | 134 sq ft |
| Kitchen | 9'-0" × 7'-8" | 69 sq ft |
| Entry | 4'-1" × 5'-1" | 21 sq ft |
| Stacked Laundry | 4'-10" × 2'-7" | 12 sq ft |
| Hall | 4'-10" × 4'-10" | 24 sq ft |
| Bathroom | 4'-9" × 7'-0" | 33 sq ft |
| Bedroom | 10'-0" × 9'-4" | 93 sq ft |
Who this plan suits
This plan suits a homeowner adding a one-bedroom rental, guest house or home for a family member behind an existing house. It needs a rear yard that can fit a 21'-4" × 24'-11" footprint plus the setbacks and utility access your local rules require.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Backyard ADU with about 500 sq ft of living space: 1 bedroom, 1 bath, open kitchen and living, stacked laundry, small covered entry.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
