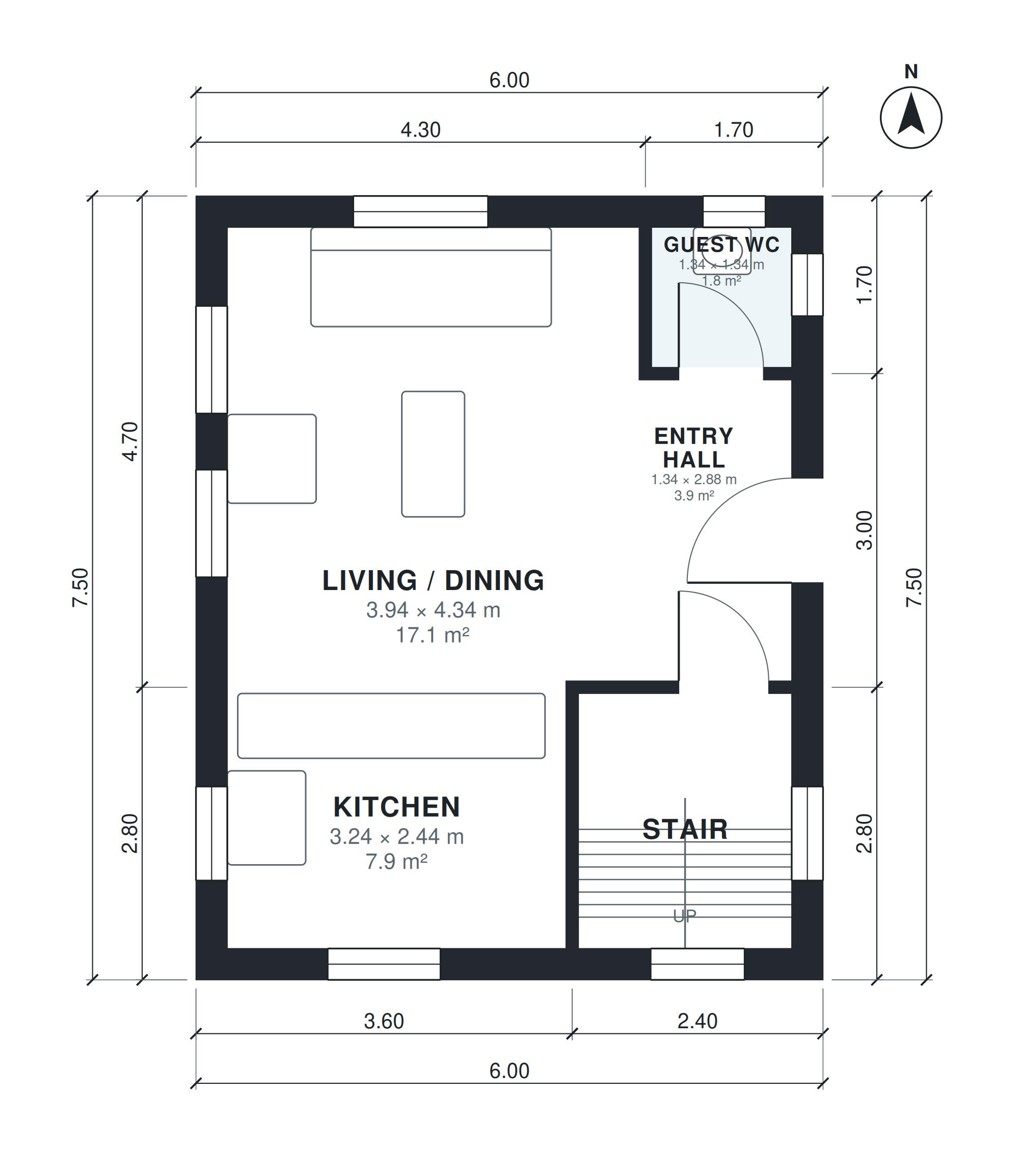

This two-story plan fits a footprint of 19'-8" × 24'-7" and provides 970 sq ft of living space across two levels. It has no garage and no basement. The entry hall (4'-5" × 9'-5") passes a guest WC (4'-5" × 4'-5") and opens into a 12'-11" × 14'-3" living and dining room. The kitchen (10'-8" × 8'-0") sits beside it, so cooking, eating and sitting share one open ground floor.

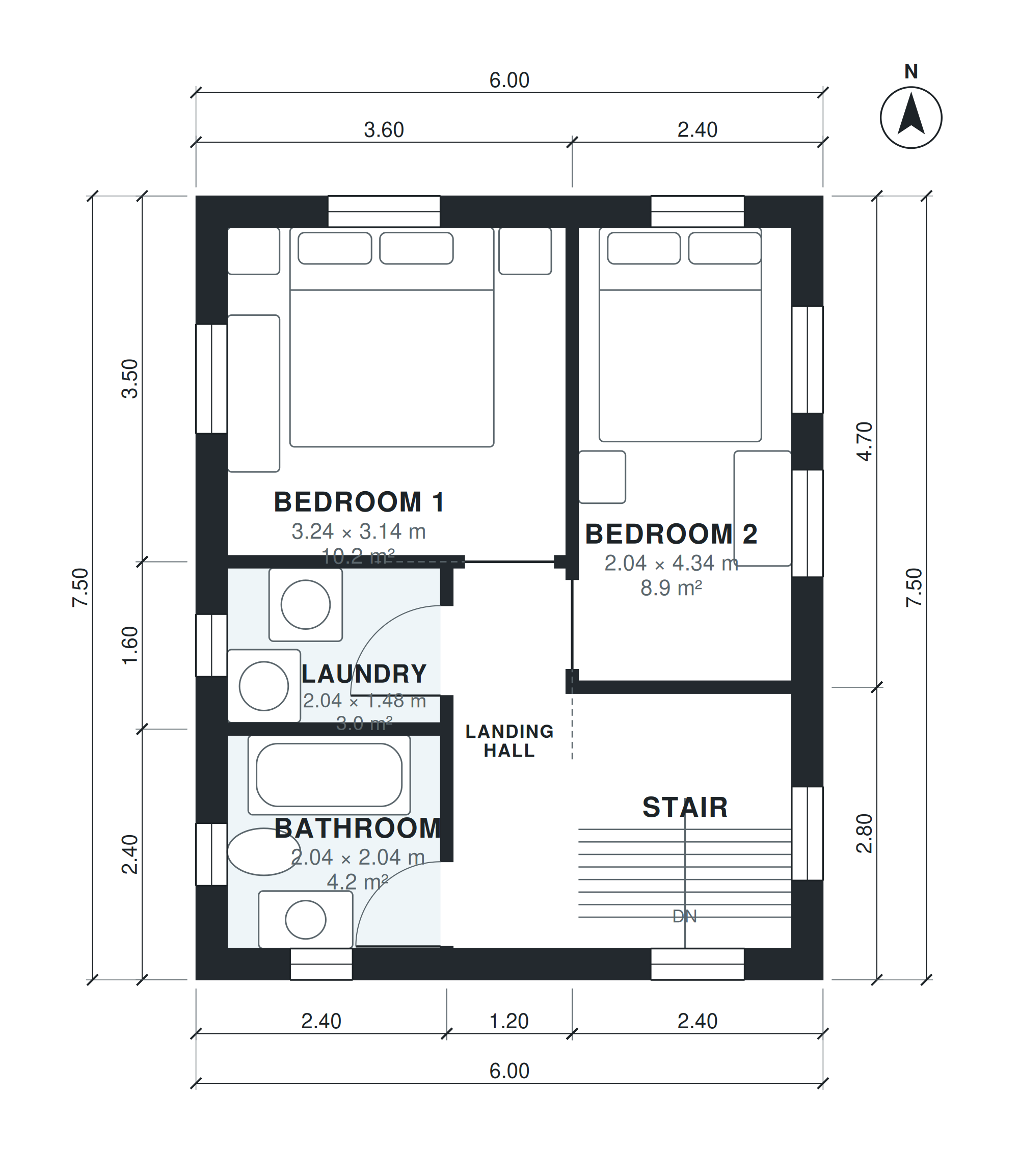

The stair (6'-8" × 8'-0") rises to a landing hall (3'-7" × 11'-11") that serves every upstairs room. Bedroom 1 measures 10'-8" × 10'-4" and Bedroom 2 measures 6'-8" × 14'-3". The bathroom (6'-8" × 6'-8") and the laundry (6'-8" × 4'-10") sit together, which keeps the wet rooms in one zone and puts the washer on the same floor as the bedrooms.
Layout highlights
- Living and dining room of 12'-11" × 14'-3" shares the ground floor with the kitchen.
- Kitchen of 10'-8" × 8'-0" sits next to the dining area.
- Guest WC of 4'-5" × 4'-5" opens off the entry hall, so visitors stay downstairs.
- Bedroom 1 at 10'-8" × 10'-4" and Bedroom 2 at 6'-8" × 14'-3" open off one landing.
- Upstairs bathroom (6'-8" × 6'-8") and laundry (6'-8" × 4'-10") sit side by side.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 6'-8" × 8'-0" | 54 sq ft |
| Living / Dining | 1 | 12'-11" × 14'-3" | 184 sq ft |
| Entry Hall | 1 | 4'-5" × 9'-5" | 42 sq ft |
| Guest WC | 1 | 4'-5" × 4'-5" | 19 sq ft |
| Kitchen | 1 | 10'-8" × 8'-0" | 85 sq ft |
| Bathroom | 2 | 6'-8" × 6'-8" | 45 sq ft |
| Laundry | 2 | 6'-8" × 4'-10" | 32 sq ft |
| Landing Hall | 2 | 3'-7" × 11'-11" | 42 sq ft |
| Bedroom 1 | 2 | 10'-8" × 10'-4" | 110 sq ft |
| Stair | 2 | 6'-8" × 8'-0" | 54 sq ft |
| Bedroom 2 | 2 | 6'-8" × 14'-3" | 95 sq ft |
Who this plan suits
This plan suits a couple, a small family or a home office household that wants two bedrooms and a compact footprint without a garage. It needs a narrow lot wide enough for the 19'-8" × 24'-7" footprint plus your local side setbacks.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 2 bedrooms, 1.5 baths, ground floor open kitchen, dining, living, guest WC; upstairs 2 bedrooms, bath, laundry, about 90 m² (969 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement; the building is at most 6 m wide (narrow plot).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 6 meter wide house plans?
They are house plans where the building is no more than about 6 meters (19'-8") wide, designed for narrow urban lots. This plan stacks its rooms over two floors, giving 970 sq ft of living space on a 19'-8" × 24'-7" footprint.
What affects the lot and building cost of this plan?
The lot must fit the 19'-8" × 24'-7" footprint plus the setbacks your local code requires. Cost depends on your region, finishes and site conditions. The compact two-story shape and the stacked bathroom and laundry keep the structure and the plumbing runs simple.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing a bedroom, adding or moving rooms, or adapting the plan to a different lot width. The plan is then regenerated with the new room sizes. This plan has no garage, so a garage and its side would be an addition you ask for.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing and sharing the floor plans with family, a builder or a permit office. The DXF opens in CAD software for drafting and measuring. The IFC loads into BIM tools such as Revit, ArchiCAD or BIMvision for 3D coordination. A local architect or engineer should check the plan against your local code before you build.
