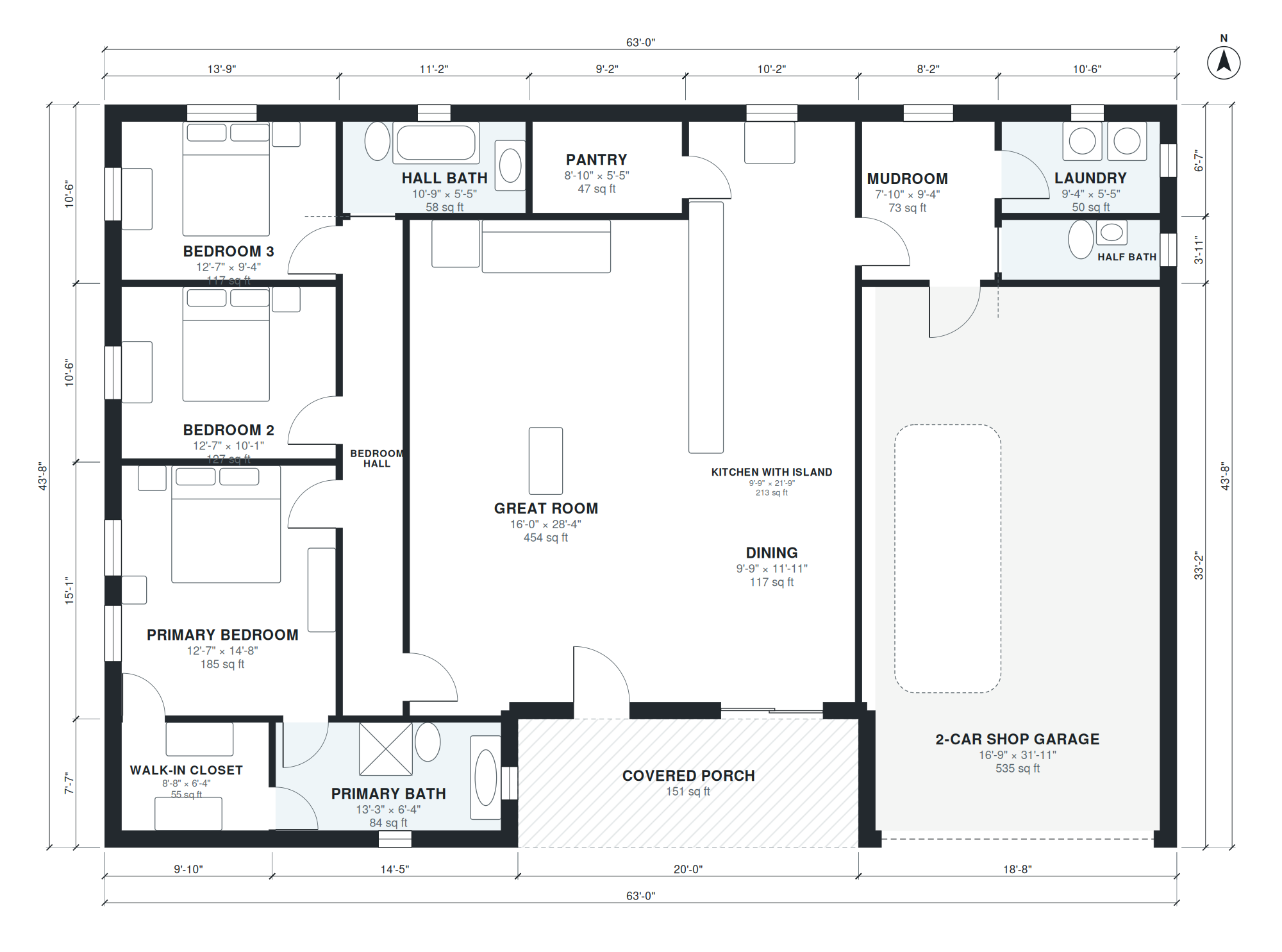

This single-story barndominium plan has 1,980 square feet of living space inside a 63'-0" × 43'-8" footprint, with the shop garage counted separately. It has three bedrooms and 2.5 baths. The primary suite combines a 12'-7" × 14'-8" bedroom, a 13'-3" × 6'-4" bath and an 8'-8" × 6'-4" walk-in closet. Bedrooms 2 and 3 open off a 3'-7" × 29'-2" bedroom hall and share a 10'-9" × 5'-5" hall bath.
The 16'-0" × 28'-4" great room anchors the living area. The kitchen measures 9'-9" × 21'-9" and includes an island, with a 9'-9" × 11'-11" dining space and an 8'-10" × 5'-5" pantry. The 2-car shop garage, 16'-9" × 31'-11", connects to a 7'-10" × 9'-4" mudroom. A 9'-4" × 5'-5" laundry and a half bath serve daily traffic, and a covered porch extends the plan outdoors.
Layout highlights
- Primary suite with a 12'-7" × 14'-8" bedroom, 13'-3" × 6'-4" bath and walk-in closet.
- Great room of 16'-0" × 28'-4" opens to a 9'-9" × 21'-9" kitchen with island.
- Pantry at 8'-10" × 5'-5" and a 9'-9" × 11'-11" dining area support the kitchen.
- Mudroom of 7'-10" × 9'-4" sits between the shop garage and the living space.
- Shop garage at 16'-9" × 31'-11" fits two vehicles plus workbench space.
Room sizes
| Room | Size | Area |
|---|---|---|
| Walk-in Closet | 8'-8" × 6'-4" | 55 sq ft |
| Primary Bath | 13'-3" × 6'-4" | 84 sq ft |
| Primary Bedroom | 12'-7" × 14'-8" | 185 sq ft |
| Bedroom 2 | 12'-7" × 10'-1" | 127 sq ft |
| Bedroom 3 | 12'-7" × 9'-4" | 117 sq ft |
| Bedroom Hall | 3'-7" × 29'-2" | 103 sq ft |
| Great Room | 16'-0" × 28'-4" | 454 sq ft |
| Hall Bath | 10'-9" × 5'-5" | 58 sq ft |
| Pantry | 8'-10" × 5'-5" | 47 sq ft |
| Dining | 9'-9" × 11'-11" | 117 sq ft |
| Kitchen with Island | 9'-9" × 21'-9" | 213 sq ft |
| 2-Car Shop Garage | 16'-9" × 31'-11" | 535 sq ft |
| Mudroom | 7'-10" × 9'-4" | 73 sq ft |
| Half Bath | 9'-4" × 3'-7" | 33 sq ft |
| Laundry | 9'-4" × 5'-5" | 50 sq ft |
Who this plan suits
This plan suits households that want one-level living with a working shop attached, such as hobbyists, tradespeople or small-acreage owners. It needs a lot at least wide enough for the 63'-0" × 43'-8" footprint plus setbacks and driveway access to the garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story barndominium, simple rectangular metal building with about 2,000 sq ft of living space (shop not included): 3 bedrooms, 2.5 baths, primary suite with walk-in closet, open great room with kitchen island, pantry, laundry, mudroom, attached 2-car shop garage, covered porch.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What is a 2000 sq ft barndominium floor plan?
It is a residential layout built inside a barn-style, usually metal-framed, building with about 2,000 square feet of living space. This plan has 1,980 square feet of living area, three bedrooms and 2.5 baths, with the shop garage counted separately.
What affects the cost and lot requirements of this plan?
The main drivers are the 63'-0" × 43'-8" footprint, the foundation type, the metal building package, the finishes and your local labor rates. The lot must fit the footprint with setbacks, and the garage needs a driveway approach. Utilities and site work can change the total significantly.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as moving the garage to the other side, resizing or adding rooms, or adapting the layout to a narrower lot. The plan is regenerated with the updated room sizes and footprint.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and quick measurements. The DXF opens in CAD software for drafting and editing, and the IFC imports into BIM tools for coordination. Have a licensed local designer or engineer check the plan before permits and construction.
