This two-story plan fits five bedrooms and three baths into 1,850 sq ft of living space, on a footprint of 36'-9" × 31'-10". The garage is not counted in that figure. The entrance hall (9'-1" × 7'-0") leads to the living room (19'-2" × 12'-3"), which is open to the dining area (12'-3" × 8'-10") and the kitchen (12'-3" × 8'-0"). A utility room (6'-6" × 6'-0") is also on this level.

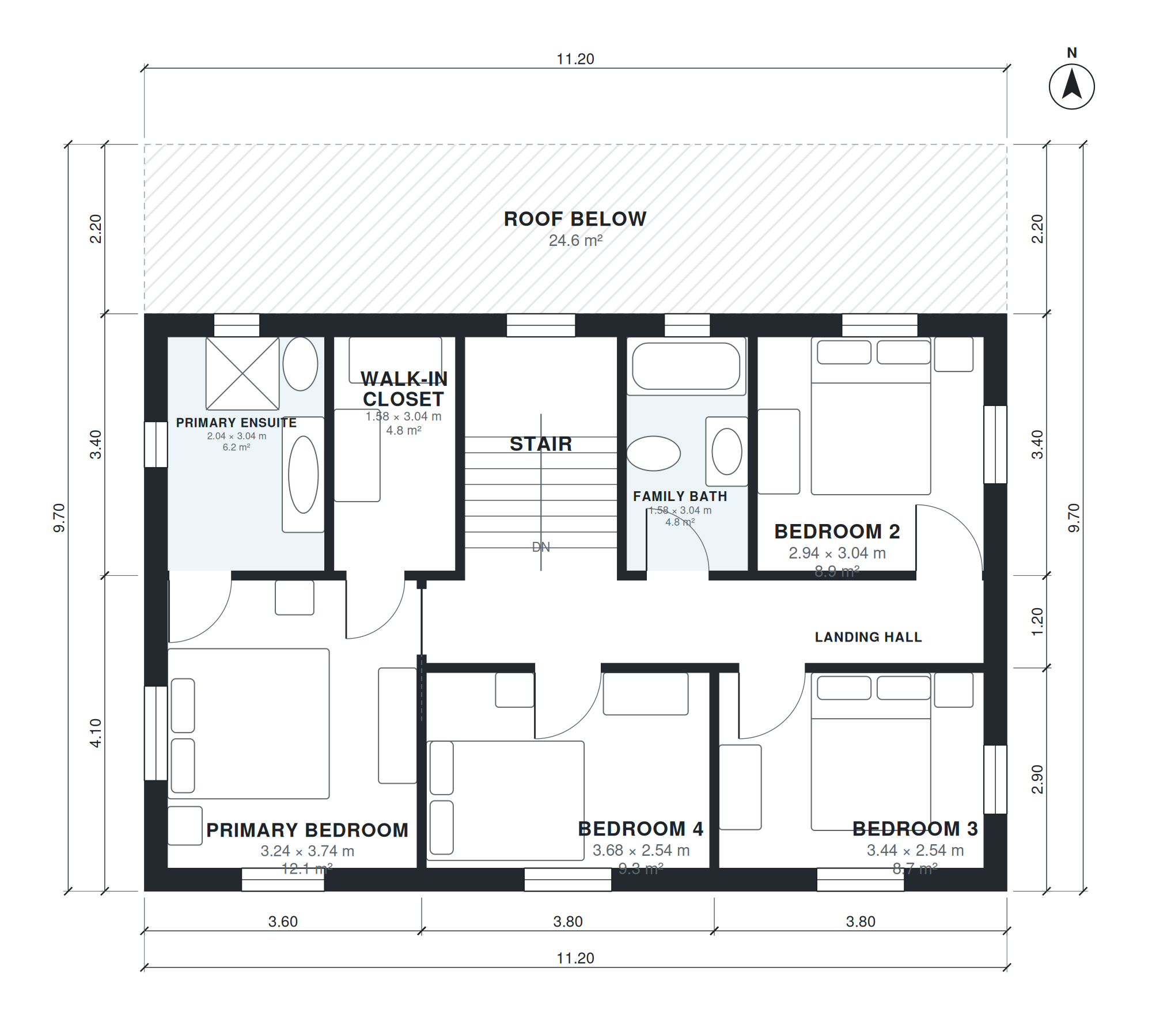

The ground floor bedroom (10'-0" × 9'-5") is paired with a shower room (5'-9" × 7'-0"), which suits guests or relatives who prefer to avoid stairs. Upstairs, a landing hall (23'-9" × 3'-7") serves the primary bedroom (10'-8" × 12'-3"), its ensuite and walk-in closet, bedrooms 2, 3 and 4, and a family bath. The attached garage measures 15'-3" × 12'-7".
Layout highlights
- Living room of 19'-2" × 12'-3" is open to a 12'-3" × 8'-10" dining area.
- Kitchen at 12'-3" × 8'-0" shares the open ground floor with a separate utility room.
- Ground floor bedroom of 10'-0" × 9'-5" sits beside a 5'-9" × 7'-0" shower room.
- Upstairs primary bedroom of 10'-8" × 12'-3" has an ensuite and a walk-in closet.
- Three more upstairs bedrooms share a family bath, reached from a 23'-9" landing hall.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Living Room | 1 | 19'-2" × 12'-3" | 235 sq ft |
| Dining | 1 | 12'-3" × 8'-10" | 108 sq ft |
| Kitchen | 1 | 12'-3" × 8'-0" | 98 sq ft |
| Stair | 1 | 6'-6" × 10'-9" | 70 sq ft |
| Utility | 1 | 6'-6" × 6'-0" | 39 sq ft |
| Entrance Hall | 1 | 9'-1" × 7'-0" | 64 sq ft |
| Shower Room | 1 | 5'-9" × 7'-0" | 40 sq ft |
| Hall | 1 | 4'-10" × 9'-5" | 46 sq ft |
| Ground Floor Bedroom | 1 | 10'-0" × 9'-5" | 94 sq ft |
| Garage | 1 | 15'-3" × 12'-7" | 192 sq ft |
| Stair | 2 | 6'-6" × 10'-0" | 65 sq ft |
| Primary Bedroom | 2 | 10'-8" × 12'-3" | 130 sq ft |
| Bedroom 4 | 2 | 12'-1" × 8'-4" | 101 sq ft |
| Bedroom 3 | 2 | 11'-3" × 8'-4" | 94 sq ft |
| Landing Hall | 2 | 23'-9" × 3'-7" | 84 sq ft |
| Primary Ensuite | 2 | 6'-8" × 10'-0" | 67 sq ft |
| Walk-in Closet | 2 | 5'-2" × 10'-0" | 52 sq ft |
| Family Bath | 2 | 5'-2" × 10'-0" | 52 sq ft |
| Bedroom 2 | 2 | 9'-8" × 10'-0" | 96 sq ft |
Who this plan suits
This plan suits families that need five bedrooms, including one on the ground floor for guests or older relatives, without a large footprint. It needs a lot that can take a 36'-9" × 31'-10" footprint plus access to the attached 1-car garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 5 bedrooms, 3 baths, ground floor bedroom with shower room, open kitchen, dining, living, utility; upstairs primary suite and 3 bedrooms, bath, attached 1-car garage, about 170 m² (1,830 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What is a 5 bedroom house plan at 170 m2?
It is a layout with five bedrooms in roughly 170 m2 of heated living area, excluding the garage. This version is two stories with 1,850 sq ft of living space and 3 baths. One bedroom and a shower room are on the ground floor, and four bedrooms are upstairs.
What affects the lot and building cost for this plan?
The footprint is 36'-9" × 31'-10", so the lot must fit that plus setbacks and a driveway to the garage. Cost depends mainly on local labor and materials, foundation conditions, and finishes. The two-story form keeps the footprint and roof area smaller than a single-story plan of the same size.
Can I change this plan by chat?
Yes. You can describe changes such as swapping a room, moving the garage to the other side, or fitting a narrower lot, and the plan is regenerated. Room sizes and the overall footprint update to match the new layout.
How do I use the PDF, DXF and IFC files?
The PDF is for reading and sharing the plan with a builder or designer. The DXF opens in CAD software for editing and drafting, and the IFC imports into BIM tools. Local code checks and engineering are still needed before construction.
