This row house 4 bedroom plan measures 24'-7" × 31'-10" on two levels and provides 1,570 sq ft of living space, with no garage. The entry (8'-4" × 10'-4") opens to a 3'-7" × 12'-5" hall that passes the guest WC and the study (8'-4" × 10'-11") on the way to the living room at 14'-7" × 10'-0". The kitchen and dining area, 10'-8" × 14'-11", sits beside a 10'-8" × 4'-2" utility room.

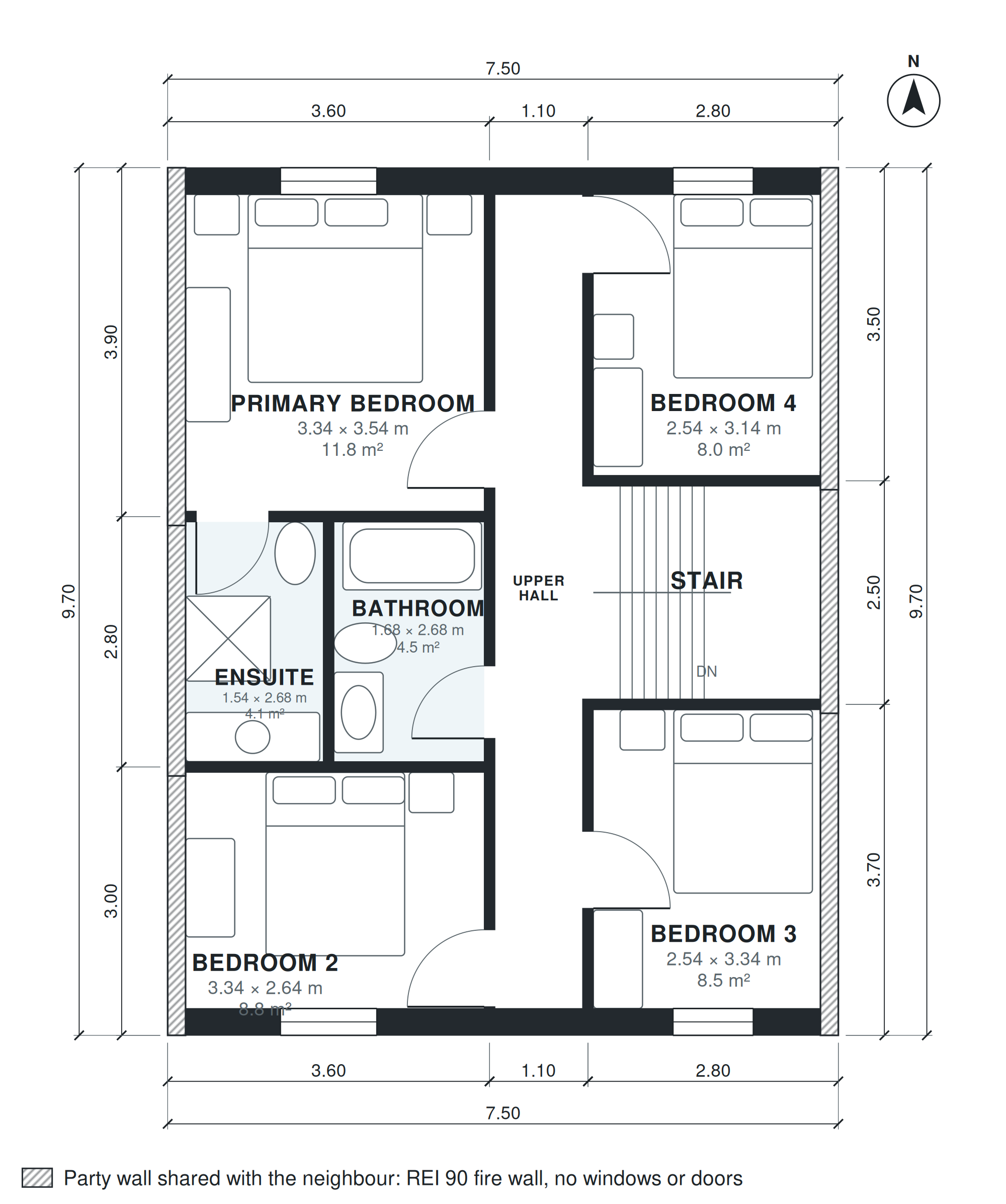

The stair (8'-4" × 7'-10") rises to a 3'-3" × 29'-10" upper hall that serves all four bedrooms. The primary bedroom (10'-11" × 11'-7") has an ensuite of 5'-1" × 8'-10", and the shared bathroom is 5'-6" × 8'-10". Bedroom 2 is 10'-11" × 8'-8", bedroom 3 is 8'-4" × 10'-11" and bedroom 4 is 8'-4" × 10'-4". Windows face only the front and rear, which suits a terrace with shared walls on both long sides.
Layout highlights
- Kitchen and dining share one 10'-8" × 14'-11" room, with a 10'-8" × 4'-2" utility alongside.
- Living room at 14'-7" × 10'-0" is reached along a 3'-7" × 12'-5" hall.
- Ground-floor study of 8'-4" × 10'-11" and a guest WC avoid trips upstairs.
- Primary bedroom of 10'-11" × 11'-7" has its own 5'-1" × 8'-10" ensuite.
- A 3'-3" × 29'-10" upper hall links four bedrooms and the 5'-6" × 8'-10" bathroom.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 8'-4" × 7'-10" | 65 sq ft |
| Kitchen / Dining | 1 | 10'-8" × 14'-11" | 158 sq ft |
| Utility | 1 | 10'-8" × 4'-2" | 45 sq ft |
| Guest WC | 1 | 3'-7" × 6'-8" | 24 sq ft |
| Hall | 1 | 3'-7" × 12'-5" | 44 sq ft |
| Living | 1 | 14'-7" × 10'-0" | 145 sq ft |
| Study | 1 | 8'-4" × 10'-11" | 91 sq ft |
| Entry | 1 | 8'-4" × 10'-4" | 86 sq ft |
| Bedroom 2 | 2 | 10'-11" × 8'-8" | 95 sq ft |
| Ensuite | 2 | 5'-1" × 8'-10" | 44 sq ft |
| Bathroom | 2 | 5'-6" × 8'-10" | 48 sq ft |
| Primary Bedroom | 2 | 10'-11" × 11'-7" | 127 sq ft |
| Upper Hall | 2 | 3'-3" × 29'-10" | 96 sq ft |
| Bedroom 3 | 2 | 8'-4" × 10'-11" | 91 sq ft |
| Stair | 2 | 8'-4" × 7'-10" | 65 sq ft |
| Bedroom 4 | 2 | 8'-4" × 10'-4" | 86 sq ft |
Who this plan suits
This plan suits families or households that want four bedrooms and a separate study within 1,570 sq ft of living space. It needs a narrow terrace lot of at least 24'-7" × 31'-10" with shared walls on both long sides and no garage or parking on the plot.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Wide two-story row house 7.5 m wide, party walls on both long sides (no windows there), windows only on the front and rear facades: ground floor kitchen, dining, living, study, guest WC, utility; upstairs 4 bedrooms, bath and ensuite, about 145 m² (1,560 sq ft).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What is a row house 4 bedroom plan?
A row house 4 bedroom plan is a narrow, attached home that shares walls with its neighbors and fits four bedrooms on two levels. This one places living spaces and a study on the ground floor and all four bedrooms upstairs.
What affects the lot and building cost of this plan?
The 24'-7" × 31'-10" footprint needs a lot with shared walls on both long sides, so party wall construction and access to the front and rear are key factors. Cost also depends on local labor, finishes, and the two bathrooms plus guest WC, which add plumbing runs.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing rooms, swapping the study for another use, adding a garage on one side, or adjusting the lot width. The layout is then updated to match.
How do I use the PDF, DXF and IFC files?
The PDF is for reading and sharing the floor plans and room sizes. The DXF opens in CAD software for drafting and editing, and the IFC imports into BIM tools so an architect or engineer can build on the model.
