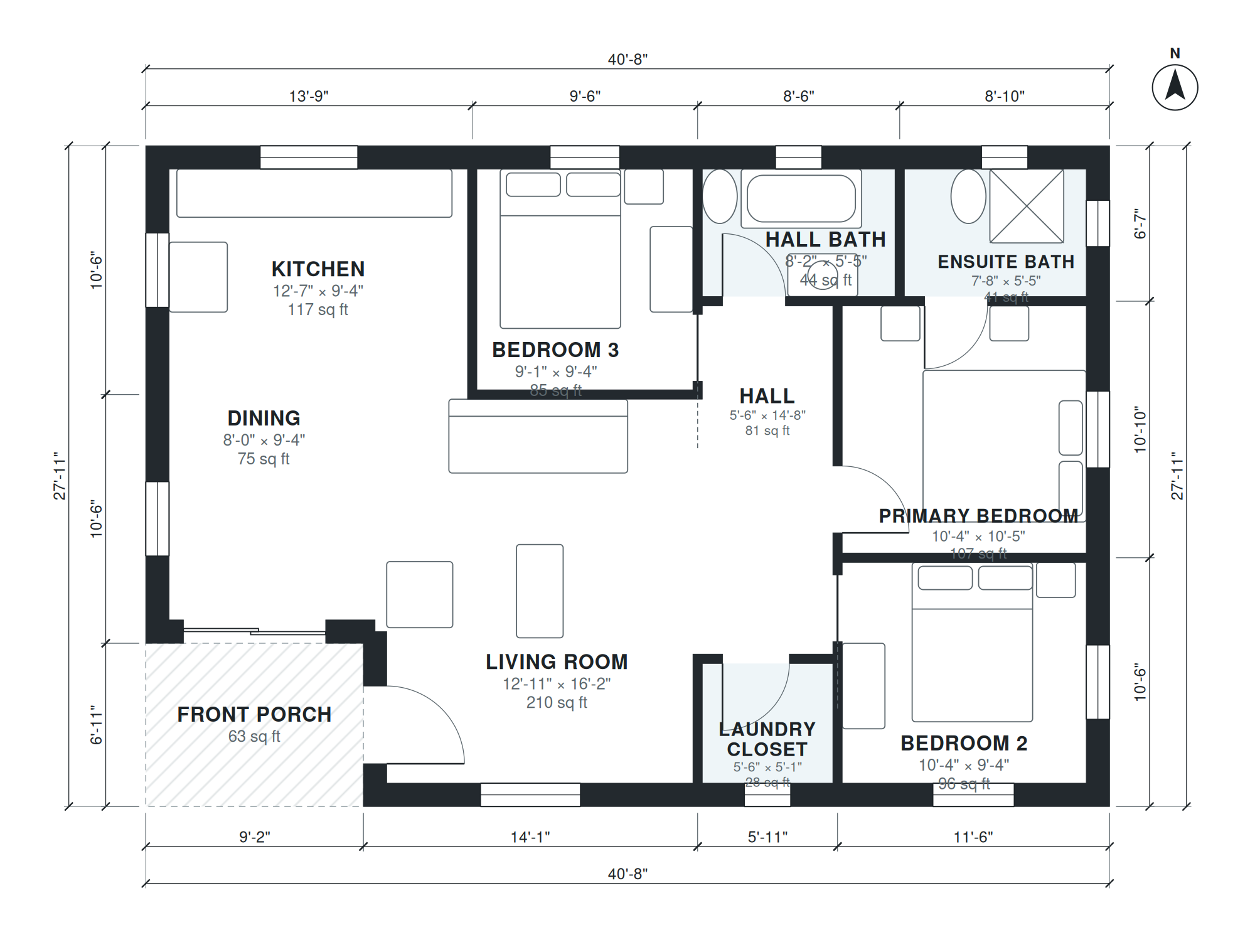

This single-story plan has 1,070 sq ft of living space on a plain rectangular footprint of 40'-8" × 27'-11", under a simple roof. A front porch opens into the Living Room at 12'-11" × 16'-2". The Kitchen (12'-7" × 9'-4") and Dining area (8'-0" × 9'-4") share the same open space, so cooking, eating and sitting happen in one room. A Laundry Closet of 5'-6" × 5'-1" is included, and there is no garage.
A Hall measuring 5'-6" × 14'-8" links the living area to the three bedrooms and the Hall Bath (8'-2" × 5'-5"). The Primary Bedroom is 10'-4" × 10'-5" and has its own Ensuite Bath at 7'-8" × 5'-5". Bedroom 2 is 10'-4" × 9'-4" and Bedroom 3 is 9'-1" × 9'-4". The compact shape and straight walls keep the structure easy to frame.
Layout highlights
- Open Living Room (12'-11" × 16'-2") shares space with the Kitchen and Dining area.
- Kitchen at 12'-7" × 9'-4" sits beside an 8'-0" × 9'-4" Dining area.
- Primary Bedroom of 10'-4" × 10'-5" has a 7'-8" × 5'-5" Ensuite Bath.
- Bedrooms 2 and 3 measure 10'-4" × 9'-4" and 9'-1" × 9'-4", off a 5'-6" wide hall.
- Laundry Closet (5'-6" × 5'-1") and a front porch fit within a 40'-8" × 27'-11" footprint.
Room sizes
| Room | Size | Area |
|---|---|---|
| Dining | 8'-0" × 9'-4" | 75 sq ft |
| Living Room | 12'-11" × 16'-2" | 210 sq ft |
| Kitchen | 12'-7" × 9'-4" | 117 sq ft |
| Bedroom 3 | 9'-1" × 9'-4" | 85 sq ft |
| Laundry Closet | 5'-6" × 5'-1" | 28 sq ft |
| Hall | 5'-6" × 14'-8" | 81 sq ft |
| Bedroom 2 | 10'-4" × 9'-4" | 96 sq ft |
| Primary Bedroom | 10'-4" × 10'-5" | 107 sq ft |
| Hall Bath | 8'-2" × 5'-5" | 44 sq ft |
| Ensuite Bath | 7'-8" × 5'-5" | 41 sq ft |
Who this plan suits
This plan suits small households and first-time builders who want three bedrooms and two baths in a compact, single-level home. It needs a lot at least a little wider than 40'-8" and deeper than 27'-11", with room for the front porch and no garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Affordable single-story house: simple rectangular footprint and roof, 3 bedrooms, 2 baths, open kitchen and living, laundry closet, no garage, front porch, about 1,150 sq ft.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
