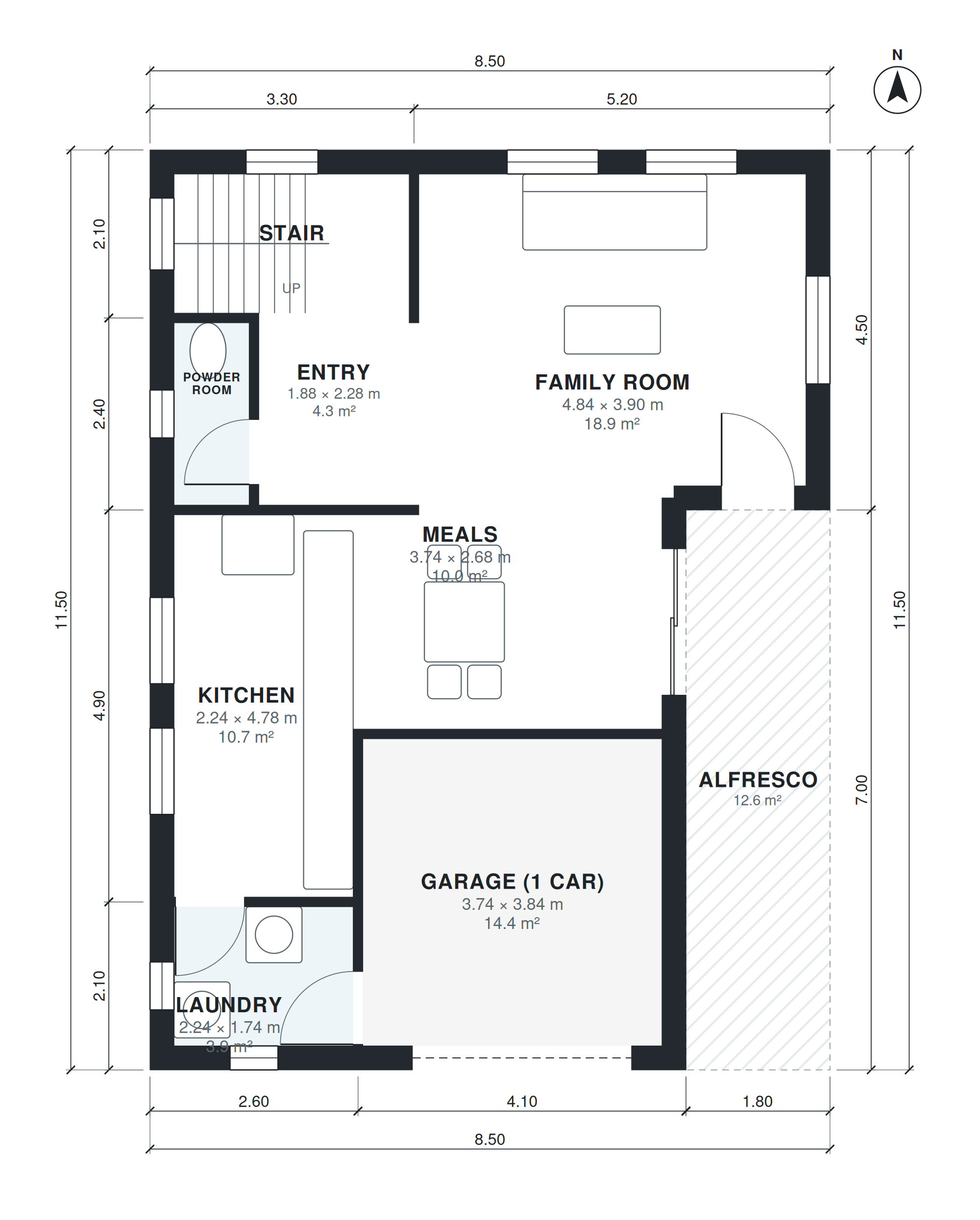

This two-story plan fits 1,780 sq ft of living space, garage excluded, into a footprint of 27'-11" × 37'-9". On the ground floor, a 6'-2" × 7'-6" entry leads past the powder room and the stair into the open living area. The 7'-4" × 15'-8" kitchen runs beside a 12'-3" × 8'-10" meals area and a 15'-11" × 12'-10" family room, which opens to the alfresco. The laundry and the 12'-3" × 12'-7" one-car garage are on the same level.

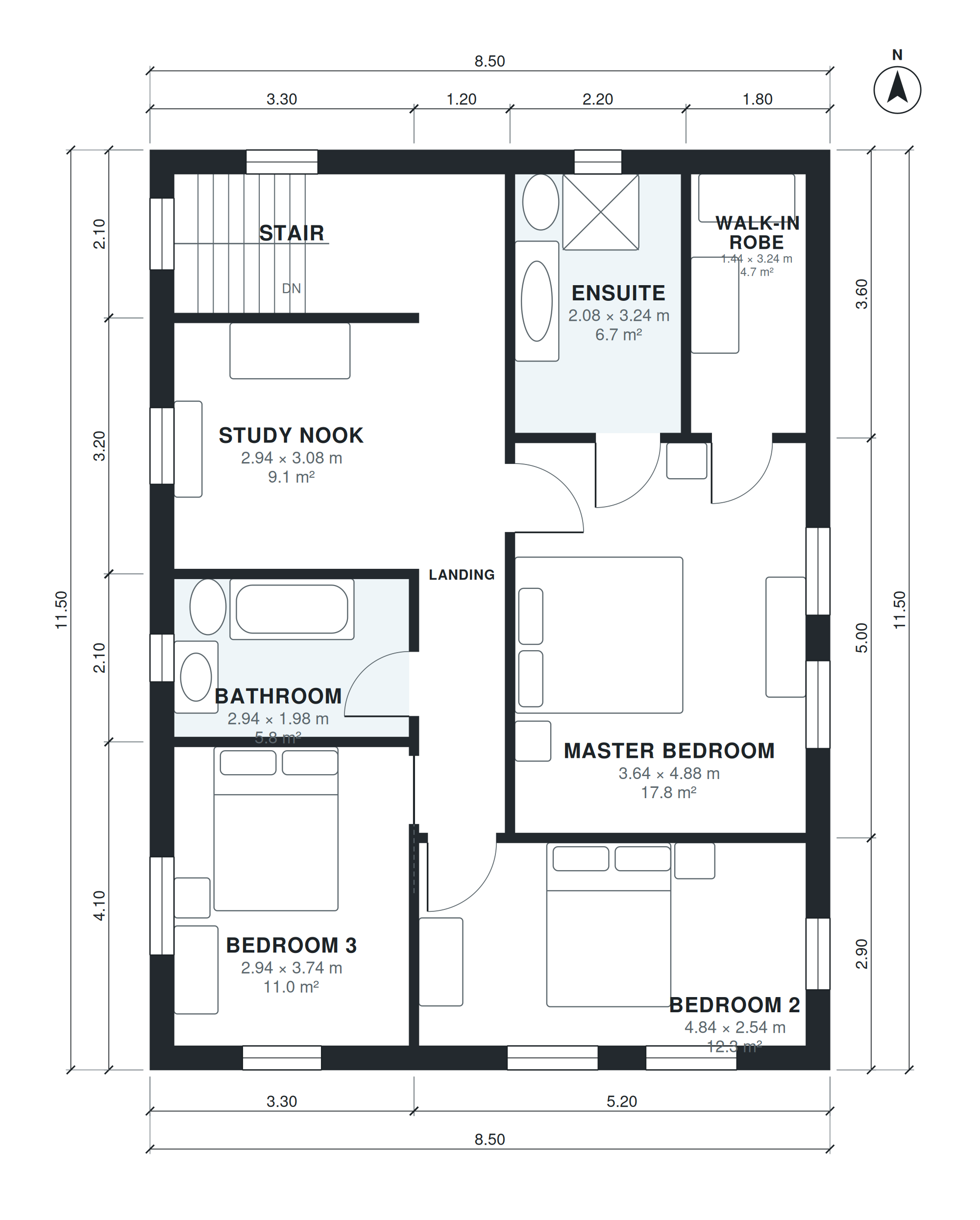

Upstairs, a 3'-7" × 27'-0" landing links every room. The 11'-11" × 16'-0" master bedroom has a 4'-9" × 10'-8" walk-in robe and a 6'-10" × 10'-8" ensuite. Bedroom 2 is 15'-11" × 8'-4" and bedroom 3 is 9'-8" × 12'-3". They share a 9'-8" × 6'-6" bathroom, and a 9'-8" × 10'-1" study nook sits nearby.
Layout highlights
- Open kitchen (7'-4" × 15'-8"), meals and family room run in one line on the ground floor.
- Family room at 15'-11" × 12'-10" opens directly to the alfresco.
- Powder room and laundry are on the ground floor, so the upper level stays for bedrooms.
- Master suite pairs an 11'-11" × 16'-0" bedroom with a walk-in robe and ensuite.
- A 27'-0" landing serves two bedrooms, the bathroom and a 9'-8" × 10'-1" study nook.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Laundry | 1 | 7'-4" × 5'-9" | 42 sq ft |
| Kitchen | 1 | 7'-4" × 15'-8" | 115 sq ft |
| Garage (1 car) | 1 | 12'-3" × 12'-7" | 155 sq ft |
| Meals | 1 | 12'-3" × 8'-10" | 108 sq ft |
| Powder Room | 1 | 3'-1" × 7'-6" | 23 sq ft |
| Entry | 1 | 6'-2" × 7'-6" | 46 sq ft |
| Stair | 1 | 9'-8" × 5'-9" | 55 sq ft |
| Family Room | 1 | 15'-11" × 12'-10" | 203 sq ft |
| Stair | 2 | 9'-8" × 5'-9" | 55 sq ft |
| Bedroom 2 | 2 | 15'-11" × 8'-4" | 132 sq ft |
| Landing | 2 | 3'-7" × 27'-0" | 96 sq ft |
| Master Bedroom | 2 | 11'-11" × 16'-0" | 191 sq ft |
| Ensuite | 2 | 6'-10" × 10'-8" | 73 sq ft |
| Walk-in Robe | 2 | 4'-9" × 10'-8" | 50 sq ft |
| Bedroom 3 | 2 | 9'-8" × 12'-3" | 118 sq ft |
| Bathroom | 2 | 9'-8" × 6'-6" | 63 sq ft |
| Study Nook | 2 | 9'-8" × 10'-1" | 97 sq ft |
Who this plan suits
This plan suits small households or families who want three bedrooms and a study space on a compact, narrow footprint. It needs a lot that can take a building 27'-11" wide and 37'-9" deep, with room for the alfresco and a one-car garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 3 bedrooms, 2.5 baths, for a 10 m wide block, building at most 8.5 m wide: ground floor open kitchen, family and meals to an alfresco, powder room, laundry; upstairs master suite, 2 bedrooms, bathroom, attached 1-car garage, about 165 m² (1,776 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
