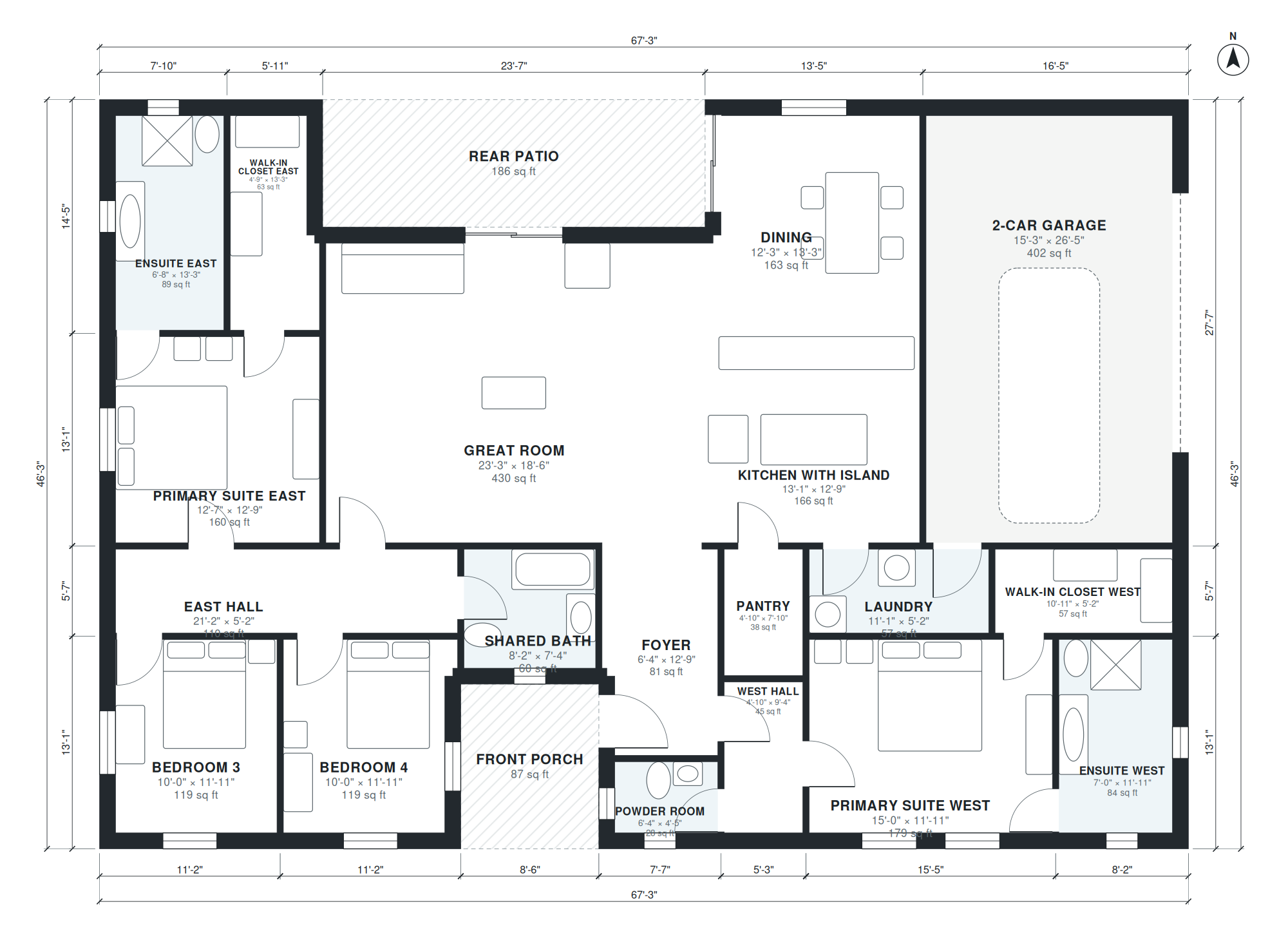

This single-story plan places a primary suite at each end of a 67'-3" × 46'-3" footprint, with 2,390 sq ft of living space excluding the garage. The west suite has a 15'-0" × 11'-11" bedroom, a 7'-0" × 11'-11" ensuite and a 10'-11" × 5'-2" walk-in closet. The east suite has a 12'-7" × 12'-9" bedroom, a 6'-8" × 13'-3" ensuite and a 4'-9" × 13'-3" walk-in closet.
The middle of the house is the living core. A 6'-4" × 12'-9" foyer, reached from the front porch, leads toward the 23'-3" × 18'-6" great room. The great room opens to the 13'-1" × 12'-9" kitchen with island and the 12'-3" × 13'-3" dining area. A 4'-10" × 7'-10" pantry supports the kitchen. Bedrooms 3 and 4, each 10'-0" × 11'-11", share an 8'-2" × 7'-4" bath off the 21'-2" east hall. The laundry, powder room and 2-car garage complete the plan, and a rear patio extends the living space outdoors.
Layout highlights
- Two primary suites sit at opposite ends, so each has its own wing and privacy.
- West suite: 15'-0" × 11'-11" bedroom, ensuite and 10'-11" × 5'-2" walk-in closet.
- East suite: 12'-7" × 12'-9" bedroom with a 6'-8" × 13'-3" ensuite.
- Great room at 23'-3" × 18'-6" opens to the island kitchen and 12'-3" × 13'-3" dining.
- Bedrooms 3 and 4 measure 10'-0" × 11'-11" each and share an 8'-2" × 7'-4" bath.
Room sizes
| Room | Size | Area |
|---|---|---|
| Bedroom 3 | 10'-0" × 11'-11" | 119 sq ft |
| Bedroom 4 | 10'-0" × 11'-11" | 119 sq ft |
| East Hall | 21'-2" × 5'-2" | 110 sq ft |
| Shared Bath | 8'-2" × 7'-4" | 60 sq ft |
| Powder Room | 6'-4" × 4'-5" | 28 sq ft |
| Foyer | 6'-4" × 12'-9" | 81 sq ft |
| West Hall | 4'-10" × 9'-4" | 45 sq ft |
| Pantry | 4'-10" × 7'-10" | 38 sq ft |
| Primary Suite West | 15'-0" × 11'-11" | 179 sq ft |
| Ensuite West | 7'-0" × 11'-11" | 84 sq ft |
| Laundry | 11'-1" × 5'-2" | 57 sq ft |
| Walk-in Closet West | 10'-11" × 5'-2" | 57 sq ft |
| Primary Suite East | 12'-7" × 12'-9" | 160 sq ft |
| Ensuite East | 6'-8" × 13'-3" | 89 sq ft |
| Walk-in Closet East | 4'-9" × 13'-3" | 63 sq ft |
| Great Room | 23'-3" × 18'-6" | 430 sq ft |
| Kitchen with Island | 13'-1" × 12'-9" | 166 sq ft |
| Dining | 12'-3" × 13'-3" | 163 sq ft |
| 2-Car Garage | 15'-3" × 26'-5" | 402 sq ft |
Who this plan suits
This plan suits multigenerational households, guests who stay for long periods, or owners who want two equal primary bedrooms on one level. It needs a lot that fits the 67'-3" × 46'-3" footprint plus setbacks, with room for a front porch, rear patio and a garage approach.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house with 2 primary suites at opposite ends (each with walk-in closet and ensuite), 2 more bedrooms sharing a bath, open kitchen with island, dining, great room, laundry, 2-car garage, about 2,400 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are house plans with 2 primary suites?
They are home designs with two full primary bedrooms, each with its own bath and walk-in closet. In this plan the suites sit at opposite ends of a single-story layout, so both keep their privacy. This works well for multigenerational living or long-term guests.
What affects the cost and lot requirements of this plan?
The 67'-3" × 46'-3" footprint sets the minimum lot width and depth once setbacks are added. Cost drivers include the 2,390 sq ft of living space, the garage, the porch and patio, and the 3.5 baths with their plumbing. Local codes, soil, finishes and labor rates also change the final figure.
Can I change this plan by chat?
Yes. You can ask for changes such as moving the garage to the other side, resizing rooms or fitting a narrower lot, and the plan is updated to match. Describe the change in plain language and review the revised layout before you download it.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with builders or clients. The DXF opens in CAD software for drafting and edits. The IFC loads into BIM tools so you can check the model in 3D and coordinate it with other disciplines.
