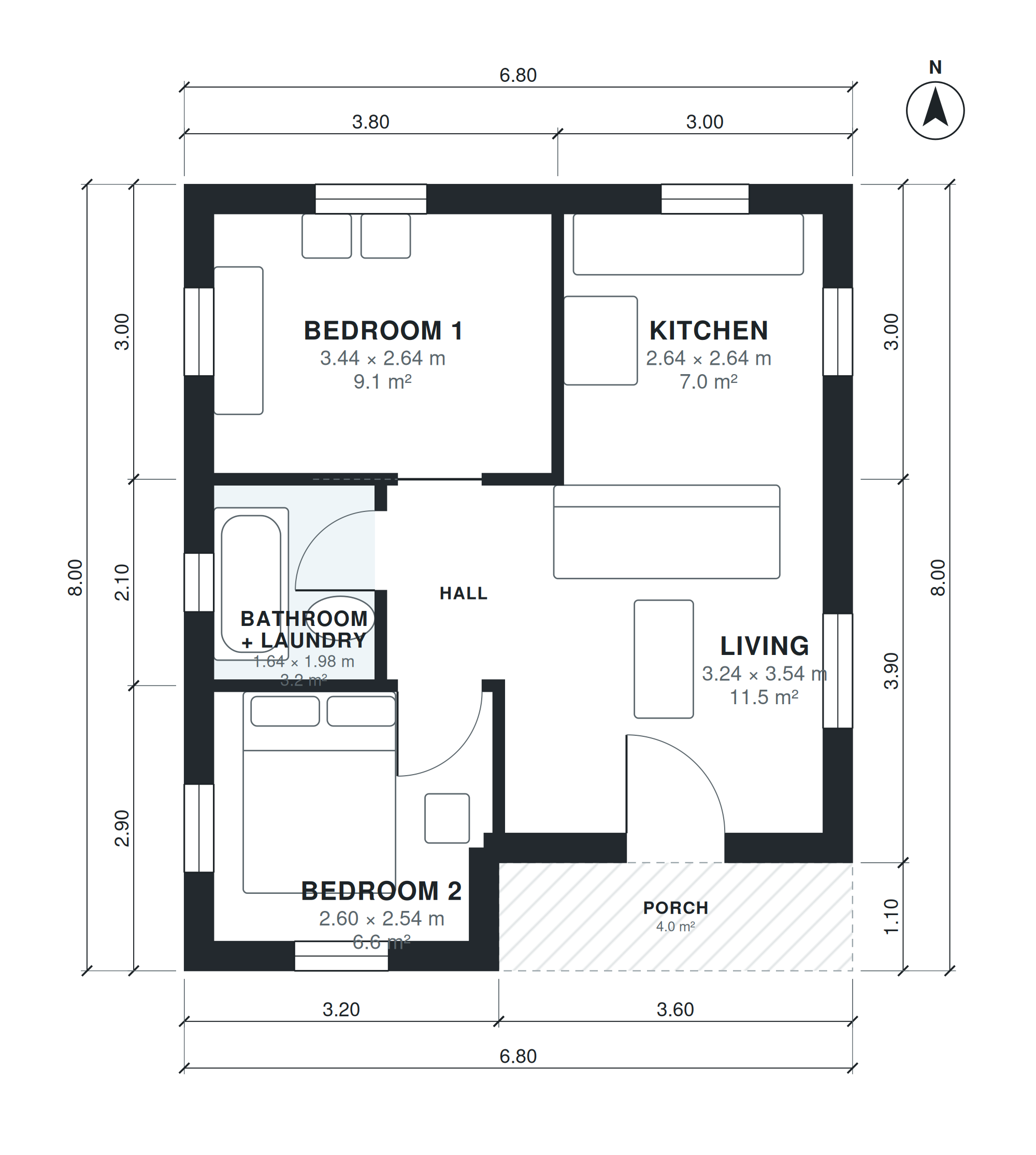

This 2 bedroom house plan packs 540 sq ft of living space onto a single level with a footprint of 22'-4" × 26'-3". There is no garage and no basement. A small porch marks the entry and leads into the living room, which measures 10'-8" × 11'-7" and is the center of the plan.
The kitchen, at 8'-8" × 8'-8", opens directly to the living room, so cooking and sitting share one space. A short 3'-7" × 6'-6" hall connects the living area to the rest of the house. Bedroom 1 (11'-3" × 8'-8") and Bedroom 2 (8'-6" × 8'-4") sit on either side of the shared bathroom, a 5'-5" × 6'-6" room with a laundry corner built in.
Layout highlights
- Living room of 10'-8" × 11'-7" open to the kitchen for a single shared space.
- Kitchen of 8'-8" × 8'-8" sits directly beside the living room.
- Bedroom 1 measures 11'-3" × 8'-8"; Bedroom 2 measures 8'-6" × 8'-4".
- One 5'-5" × 6'-6" bathroom includes a laundry corner, so no separate utility room.
- A 3'-7" × 6'-6" hall links the bedrooms and bath to the living area.
Room sizes
| Room | Size | Area |
|---|---|---|
| Bedroom 2 | 8'-6" × 8'-4" | 71 sq ft |
| Bathroom + Laundry | 5'-5" × 6'-6" | 35 sq ft |
| Hall | 3'-7" × 6'-6" | 23 sq ft |
| Living | 10'-8" × 11'-7" | 123 sq ft |
| Bedroom 1 | 11'-3" × 8'-8" | 98 sq ft |
| Kitchen | 8'-8" × 8'-8" | 75 sq ft |
Who this plan suits
This plan suits a couple, a small family, a guest house or a rental unit that needs two bedrooms in the smallest practical footprint. It needs a lot that fits 22'-4" × 26'-3" plus setbacks and a flat or gently sloping site, since there is no basement.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 2 bedrooms, 1 bath, very compact plan, open kitchen and living, bathroom with laundry corner, small porch, about 50 m² (538 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 2 bedroom house plans of 50 m2 like?
They are compact one-story layouts, usually around 540 sq ft, where rooms are sized tightly and the kitchen and living room share one space. This plan has 2 bedrooms, 1 bathroom with a laundry corner and a small porch, with no garage or basement.
What affects the cost and lot needs of this plan?
The main drivers are the 22'-4" × 26'-3" footprint, your foundation type, local labor and material prices, and the finishes you choose. The simple single-level shape keeps the structure and roof straightforward. Check setbacks and utility connections for your lot before you build.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing a bedroom, moving the porch, adding a garage on a chosen side or adapting the plan to a narrower lot. The layout is regenerated so the rooms still connect.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with builders or permit offices. The DXF opens in CAD software for drafting and editing, and the IFC loads into BIM tools for 3D coordination. A local architect or engineer should check the plan against your local code.
