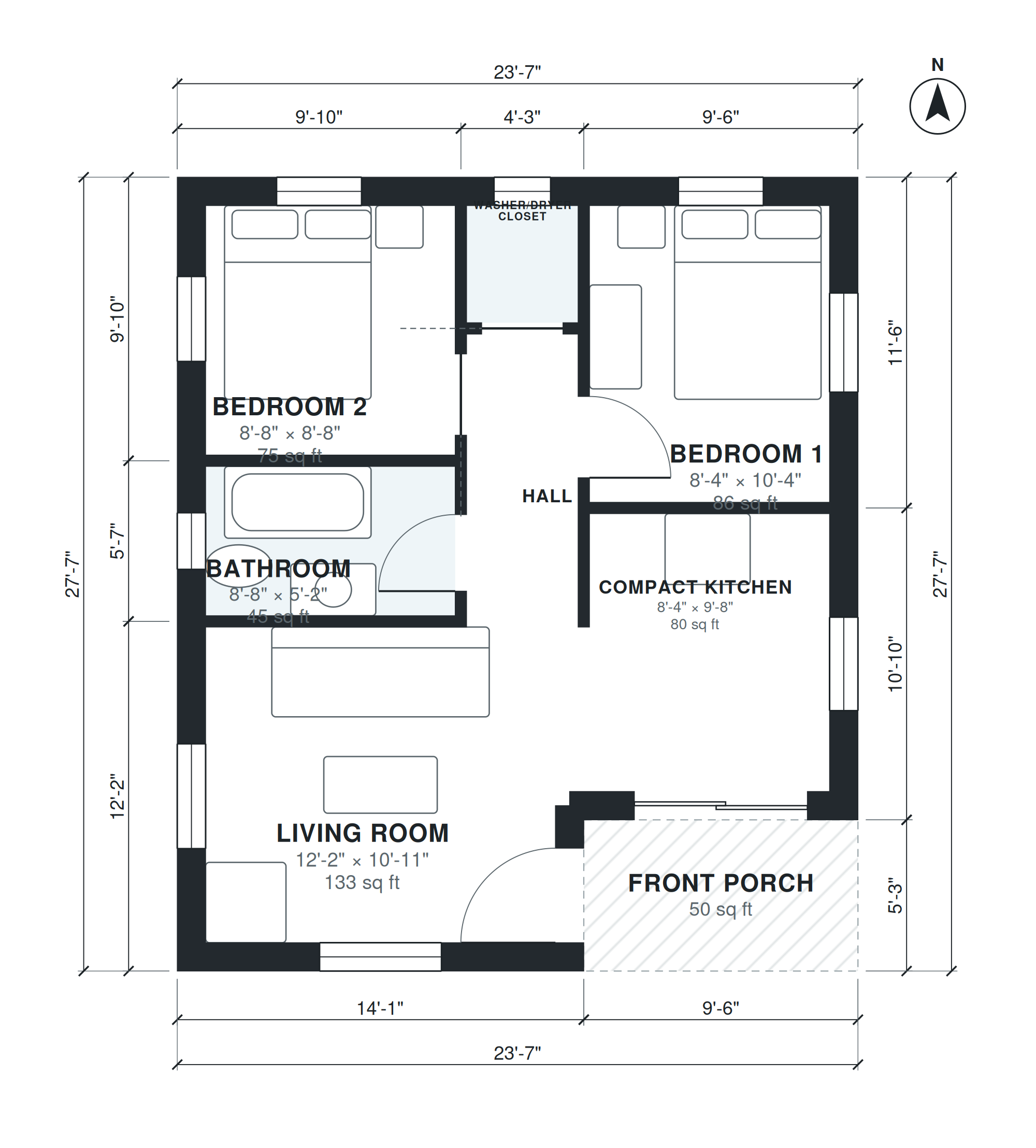

This 2 bedroom tiny house plan fits 600 sq ft of living space on one level, within a footprint of 23'-7" × 27'-7". A front porch leads into the living room, which measures 12'-2" × 10'-11". The compact kitchen, at 8'-4" × 9'-8", connects to the living room, so cooking and sitting share one zone at the front of the house.
A hall, 3'-10" × 9'-9", links the living area to the private rooms. Bedroom 1 measures 8'-4" × 10'-4" and Bedroom 2 measures 8'-8" × 8'-8". The bathroom, 8'-8" × 5'-2", opens off the hall. A 3'-10" × 4'-1" closet holds a stacked washer and dryer close to both bedrooms. The plan has no garage and sits on a foundation.
Layout highlights
- Living room of 12'-2" × 10'-11" sits directly behind the front porch entry.
- Compact kitchen of 8'-4" × 9'-8" connects straight to the living room.
- Bedroom 1 is 8'-4" × 10'-4"; Bedroom 2 is 8'-8" × 8'-8".
- One 8'-8" × 5'-2" bathroom opens off the 3'-10" × 9'-9" hall.
- Stacked washer/dryer closet of 3'-10" × 4'-1" keeps laundry near the bedrooms.
Room sizes
| Room | Size | Area |
|---|---|---|
| Living Room | 12'-2" × 10'-11" | 133 sq ft |
| Bathroom | 8'-8" × 5'-2" | 45 sq ft |
| Bedroom 2 | 8'-8" × 8'-8" | 75 sq ft |
| Hall | 3'-10" × 9'-9" | 38 sq ft |
| Washer/Dryer Closet | 3'-10" × 4'-1" | 16 sq ft |
| Compact Kitchen | 8'-4" × 9'-8" | 80 sq ft |
| Bedroom 1 | 8'-4" × 10'-4" | 86 sq ft |
Who this plan suits
This plan suits one or two people, a couple with a child, or a guest or rental unit that needs two separate sleeping rooms in 600 sq ft. It needs a lot that fits the 23'-7" × 27'-7" footprint plus setbacks and a foundation, with no garage space required.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Tiny house on a foundation with 2 small bedrooms, 1 bath, compact kitchen and living, stacked washer/dryer, small porch, about 600 sq ft.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 2 bedroom tiny house plans?
They are compact layouts that fit two separate bedrooms, a bath, a kitchen and living space into a small footprint. This version is a single-level, 600 sq ft plan on a foundation. It keeps both bedrooms off one hall, with a bathroom and laundry closet nearby.
What affects the lot and building cost for this plan?
The 23'-7" × 27'-7" footprint sets the minimum lot size once setbacks are added. Foundation type, site slope, utility connections and local code requirements are the main cost drivers. The plan has no garage, which keeps the built area limited to the 600 sq ft of living space and the porch.
Can I change this plan by chat?
Yes. You can ask for changes in chat, such as resizing rooms, adding a garage on a chosen side or adapting the plan to a narrower lot. The layout is then updated to match your request.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the layout, room sizes and sharing with a builder or permit office. The DXF opens in CAD software for 2D drafting and edits. The IFC loads into BIM tools so you can inspect the model in 3D and coordinate with engineers.
