This two-story plan has 2,510 sq ft of living space, excluding the garage, on a 38'-9" × 45'-7" footprint. The ground floor includes a 12'-11" × 21'-2" living room, a 12'-11" × 9'-9" dining room and an open kitchen with island measuring 8'-2" × 17'-10". A 12'-11" × 7'-8" study and an 8'-2" × 6'-10" utility room support daily use. A 7'-4" × 9'-4" foyer and a 3'-3" × 18'-2" hall connect the entry to these rooms, and the 2-car garage measures 14'-11" × 25'-1".

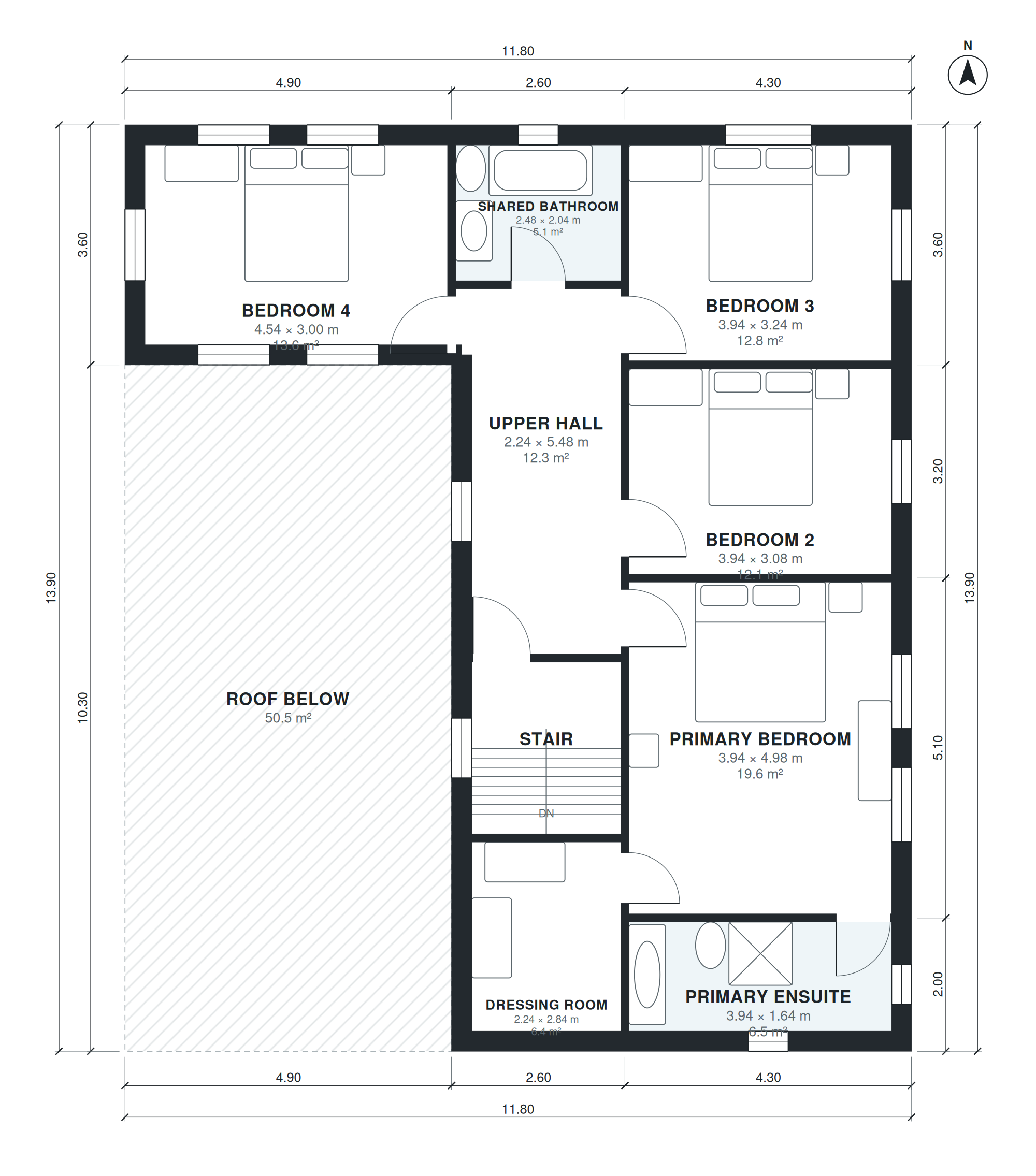

The guest bedroom, 11'-3" × 10'-5", has its own 6'-4" × 7'-4" ensuite, and a 4'-6" × 7'-4" powder room adds a half bath downstairs. Upstairs, the primary bedroom (12'-11" × 16'-4") comes with a 12'-11" × 5'-5" ensuite and a 7'-4" × 9'-4" dressing room. Three more bedrooms, at 14'-11" × 9'-10", 12'-11" × 10'-1" and 12'-11" × 10'-8", share an 8'-2" × 6'-8" bathroom off the upper hall.
Layout highlights
- Open kitchen with island, 8'-2" × 17'-10", sits within the main living level.
- Ground-floor guest bedroom, 11'-3" × 10'-5", has a 6'-4" × 7'-4" ensuite.
- Upstairs primary suite: 12'-11" × 16'-4" bedroom, 7'-4" × 9'-4" dressing room, private ensuite.
- Study at 12'-11" × 7'-8" and utility room at 8'-2" × 6'-10" on the ground floor.
- Attached 2-car garage, 14'-11" × 25'-1", on a compact 38'-9" × 45'-7" footprint.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 8'-2" × 8'-6" | 69 sq ft |
| Guest Ensuite | 1 | 6'-4" × 7'-4" | 47 sq ft |
| Powder Room | 1 | 4'-6" × 7'-4" | 33 sq ft |
| Guest Bedroom | 1 | 11'-3" × 10'-5" | 118 sq ft |
| Hall | 1 | 3'-3" × 18'-2" | 58 sq ft |
| 2-Car Garage | 1 | 14'-11" × 25'-1" | 373 sq ft |
| Living Room | 1 | 12'-11" × 21'-2" | 273 sq ft |
| Dining Room | 1 | 12'-11" × 9'-9" | 126 sq ft |
| Study | 1 | 12'-11" × 7'-8" | 99 sq ft |
| Foyer | 1 | 7'-4" × 9'-4" | 68 sq ft |
| Utility Room | 1 | 8'-2" × 6'-10" | 56 sq ft |
| Open Kitchen with Island | 1 | 8'-2" × 17'-10" | 145 sq ft |
| Bedroom 4 | 2 | 14'-11" × 9'-10" | 147 sq ft |
| Dressing Room | 2 | 7'-4" × 9'-4" | 68 sq ft |
| Stair | 2 | 7'-4" × 8'-6" | 62 sq ft |
| Upper Hall | 2 | 7'-4" × 18'-0" | 132 sq ft |
| Shared Bathroom | 2 | 8'-2" × 6'-8" | 54 sq ft |
| Primary Ensuite | 2 | 12'-11" × 5'-5" | 70 sq ft |
| Primary Bedroom | 2 | 12'-11" × 16'-4" | 211 sq ft |
| Bedroom 2 | 2 | 12'-11" × 10'-1" | 131 sq ft |
| Bedroom 3 | 2 | 12'-11" × 10'-8" | 137 sq ft |
Who this plan suits
This plan suits families who want a guest or in-law bedroom on the entry level and four bedrooms upstairs, including a primary suite with a dressing room. It needs a lot that fits a 38'-9" × 45'-7" footprint plus the entrance porch, with no basement required.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 5 bedrooms, 4 baths, ground floor guest suite, open kitchen with island, dining, living, study, utility room; upstairs primary suite with dressing room, 3 bedrooms, 2 baths, attached 2-car garage, about 230 m² (2,476 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What is a 5 bedroom house plan?
A 5 bedroom house plan lays out five sleeping rooms along with the shared living, cooking and bathing spaces they depend on. In this plan, one bedroom is on the ground floor with its own ensuite and four are upstairs. Total living area is 2,510 sq ft, not counting the garage.
What affects the lot and building cost of this plan?
The main drivers are the 38'-9" × 45'-7" footprint, the two-story structure, the attached garage and the number of wet rooms, which total 3.5 baths plus a utility room. Local soil, climate, finishes and labor rates will change the final cost more than the layout does. A local builder should price the plan before you commit.
Can I change this plan by chat?
Yes. You can ask for changes in chat, such as swapping room sizes, moving the garage to the other side, or adjusting the plan to a narrower or wider lot. The layout is regenerated so the rooms still connect.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and permit discussions. The DXF opens in most CAD programs for drafting and detailing, and the IFC imports into BIM software for coordination and quantity checks. Have a licensed local professional confirm the drawings against your codes before construction.
