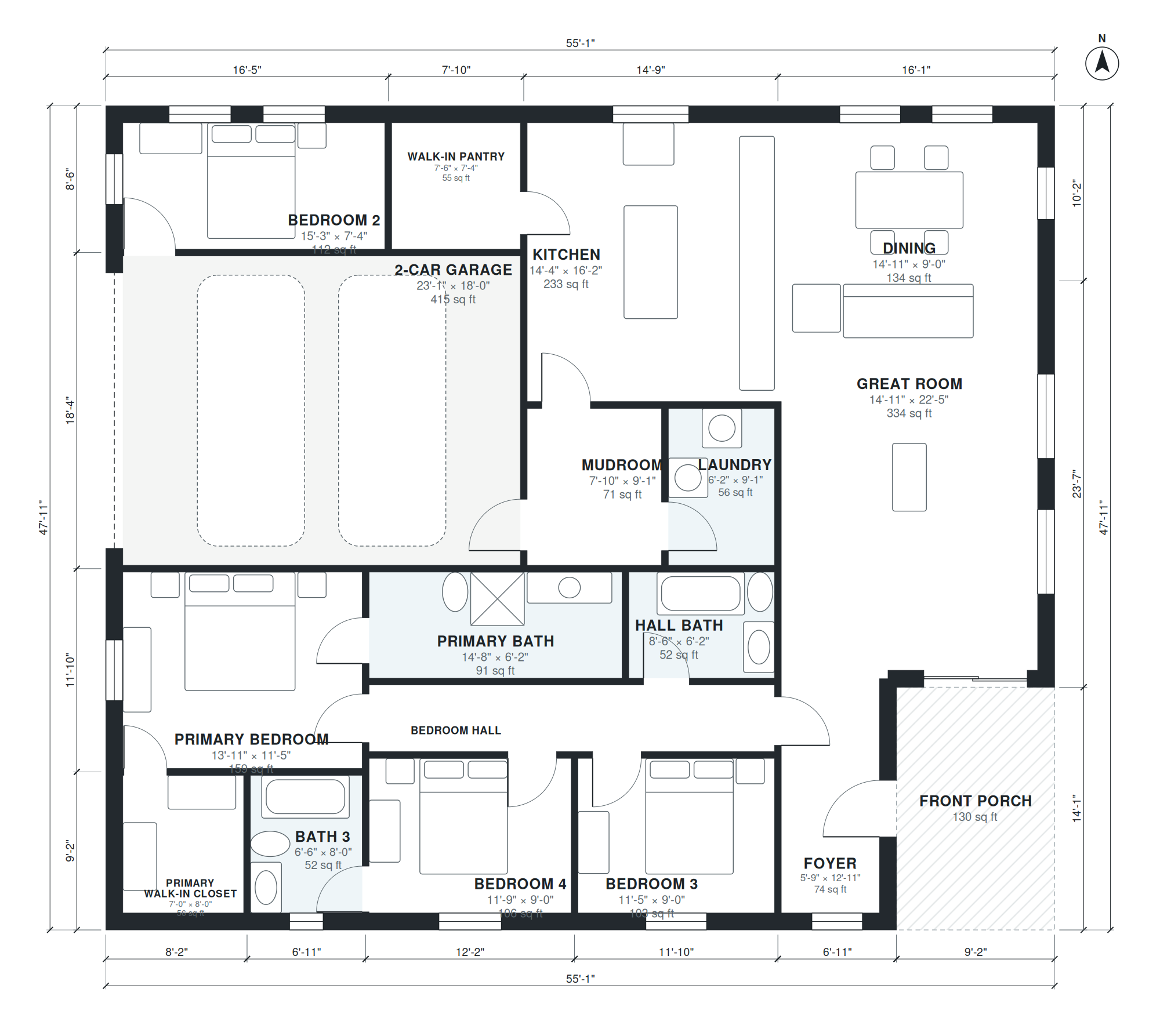

This single-story plan places a 14'-4" × 16'-2" kitchen at the center of 2,060 square feet of living space, with a long island and a 7'-6" × 7'-4" walk-in pantry. The great room measures 14'-11" × 22'-5" and the dining area is 14'-11" × 9'-0", so cooking, eating and sitting stay in one connected zone. A front porch leads into a 5'-9" × 12'-11" foyer.
A 7'-10" × 9'-1" mudroom and a 6'-2" × 9'-1" laundry handle daily traffic from the 23'-1" × 18'-0" two-car garage. The plan has four bedrooms and three baths. The primary suite has a 13'-11" × 11'-5" bedroom, a 7'-0" × 8'-0" walk-in closet and a 14'-8" × 6'-2" bath. A 23'-7" bedroom hall serves the other bedrooms. The overall footprint is 55'-1" × 47'-11".
Layout highlights
- Kitchen of 14'-4" × 16'-2" with room for a long island.
- Walk-in pantry of 7'-6" × 7'-4" sits next to the kitchen.
- Great room at 14'-11" × 22'-5" with a 14'-11" × 9'-0" dining area.
- Mudroom (7'-10" × 9'-1") and laundry (6'-2" × 9'-1") support the garage entry.
- Primary suite: 13'-11" × 11'-5" bedroom, 7'-0" × 8'-0" closet, 14'-8" × 6'-2" bath.
Room sizes
| Room | Size | Area |
|---|---|---|
| Primary Walk-in Closet | 7'-0" × 8'-0" | 56 sq ft |
| Bath 3 | 6'-6" × 8'-0" | 52 sq ft |
| Primary Bedroom | 13'-11" × 11'-5" | 159 sq ft |
| Bedroom 4 | 11'-9" × 9'-0" | 106 sq ft |
| Bedroom 3 | 11'-5" × 9'-0" | 103 sq ft |
| Bedroom Hall | 23'-7" × 3'-10" | 91 sq ft |
| Primary Bath | 14'-8" × 6'-2" | 91 sq ft |
| Hall Bath | 8'-6" × 6'-2" | 52 sq ft |
| 2-Car Garage | 23'-1" × 18'-0" | 415 sq ft |
| Bedroom 2 | 15'-3" × 7'-4" | 112 sq ft |
| Walk-in Pantry | 7'-6" × 7'-4" | 55 sq ft |
| Mudroom | 7'-10" × 9'-1" | 71 sq ft |
| Laundry | 6'-2" × 9'-1" | 56 sq ft |
| Kitchen | 14'-4" × 16'-2" | 233 sq ft |
| Foyer | 5'-9" × 12'-11" | 74 sq ft |
| Great Room | 14'-11" × 22'-5" | 334 sq ft |
| Dining | 14'-11" × 9'-0" | 134 sq ft |
Who this plan suits
This plan suits households that cook and entertain often and want four bedrooms on one level without stairs. It needs a lot at least 55'-1" wide and 47'-11" deep before setbacks, plus driveway access to the two-car garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 4 bedrooms, 3 baths, very large kitchen with a long island and walk-in pantry, dining, great room, mudroom, laundry, attached 2-car garage, front porch, about 2,500 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are house plans with a large kitchen?
They are layouts where the kitchen is a major room rather than a corner of the plan, usually with an island, a pantry and open links to dining and living space. In this plan the kitchen is 14'-4" × 16'-2" and the walk-in pantry adds 7'-6" × 7'-4" of storage.
What affects the cost and lot needs of this plan?
The main drivers are the 2,060 sq ft of living space, the separate 23'-1" × 18'-0" garage and the 55'-1" × 47'-11" footprint. A single-story layout spreads the foundation and roof over a larger area than a two-story plan. Local codes, soil, finishes and site work will change the final figure, so get quotes from local builders.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing rooms, moving the garage to the other side or fitting a narrower lot. The layout is then regenerated so the rooms still connect.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with a builder or designer. The DXF opens in CAD software for editing and drafting. The IFC loads into BIM tools for coordination. Local permit sets still need review by a licensed professional.
