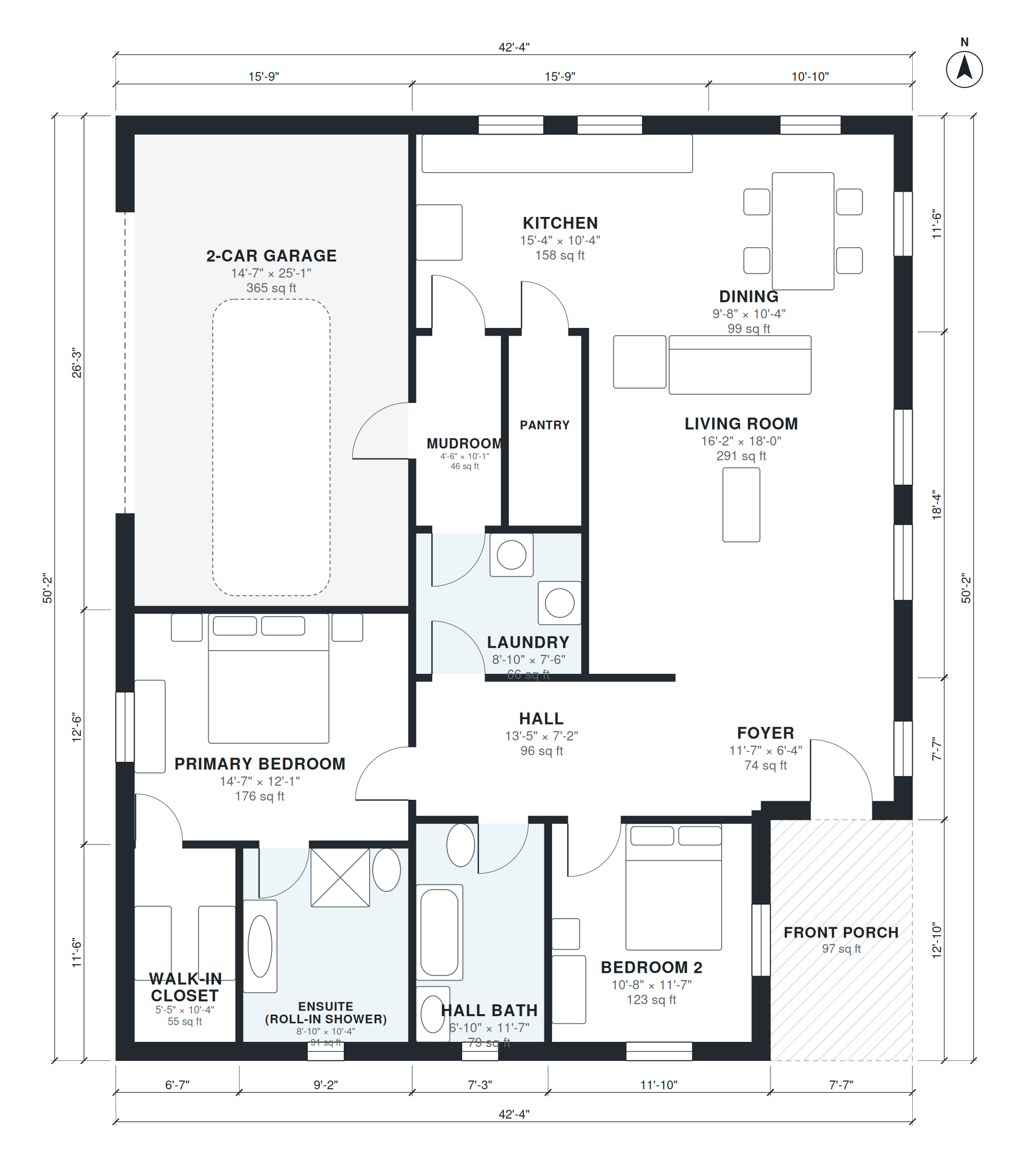

This single-story accessible ranch plan offers 1,610 sq ft of living space, not counting the garage, on a footprint of 42'-4" × 50'-2". Entry is step-free from the front porch into an 11'-7" × 6'-4" foyer. From there, the 16'-2" × 18'-0" living room opens to the 15'-4" × 10'-4" kitchen and the 9'-8" × 10'-4" dining area, so the main living space reads as one open room.
The garage connects through a 4'-6" × 10'-1" mudroom, with a 3'-10" × 10'-1" pantry and an 8'-10" × 7'-6" laundry close by. A 13'-5" × 7'-2" hall leads to both bedrooms. The 14'-7" × 12'-1" primary bedroom has a 5'-5" × 10'-4" walk-in closet and an 8'-10" × 10'-4" ensuite with a roll-in shower. Bedroom 2 measures 10'-8" × 11'-7" and sits beside the 6'-10" × 11'-7" hall bath.
Layout highlights
- Step-free entry from the front porch into an 11'-7" × 6'-4" foyer.
- Living room (16'-2" × 18'-0"), kitchen and dining share one open space.
- Primary suite: 14'-7" × 12'-1" bedroom, 5'-5" × 10'-4" walk-in closet.
- Ensuite with roll-in shower measures 8'-10" × 10'-4".
- Mudroom, pantry and 8'-10" × 7'-6" laundry sit between garage and kitchen.
Room sizes
| Room | Size | Area |
|---|---|---|
| Walk-in Closet | 5'-5" × 10'-4" | 55 sq ft |
| Ensuite (Roll-in Shower) | 8'-10" × 10'-4" | 91 sq ft |
| Primary Bedroom | 14'-7" × 12'-1" | 176 sq ft |
| 2-Car Garage | 14'-7" × 25'-1" | 365 sq ft |
| Hall Bath | 6'-10" × 11'-7" | 79 sq ft |
| Bedroom 2 | 10'-8" × 11'-7" | 123 sq ft |
| Hall | 13'-5" × 7'-2" | 96 sq ft |
| Foyer | 11'-7" × 6'-4" | 74 sq ft |
| Laundry | 8'-10" × 7'-6" | 66 sq ft |
| Mudroom | 4'-6" × 10'-1" | 46 sq ft |
| Pantry | 3'-10" × 10'-1" | 39 sq ft |
| Living Room | 16'-2" × 18'-0" | 291 sq ft |
| Kitchen | 15'-4" × 10'-4" | 158 sq ft |
| Dining | 9'-8" × 10'-4" | 99 sq ft |
Who this plan suits
This plan suits households that want a step-free home with a roll-in shower, whether for a wheelchair user, aging in place, or visitors. It needs a lot at least about 42'-4" wide and 50'-2" deep, plus room for driveway access to the 2-car garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story wheelchair-accessible ranch house, 2 bedrooms, 2 baths, no steps, 5 ft turning circles in baths, roll-in shower, open kitchen and living, laundry, attached 2-car garage, front porch, about 1,600 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are accessible ranch house plans?
Accessible ranch house plans put all living space on one level with no steps at the entry. They use wider circulation and bathrooms sized for wheelchair turning. This plan adds a roll-in shower in the ensuite and a step-free route from porch to bedrooms.
What affects the cost of building this plan and the lot it needs?
Cost drivers include the 42'-4" × 50'-2" footprint, the 1,610 sq ft of living space, the attached 2-car garage and local labor and material rates. The lot should be fairly level so the entry and garage stay step-free, and it must fit the footprint plus setbacks.
Can I change this plan by chat?
Yes. You can ask in chat to resize rooms, move the garage to the other side, or adapt the layout to a narrower or wider lot. The plan is then regenerated with updated dimensions.
How do I use the PDF, DXF and IFC files?
The PDF is for review and sharing with family, builders or permit offices. The DXF opens in CAD software for drafting and edits, and the IFC imports into BIM tools for coordination. Have a local licensed professional check the plan against your site and codes before construction.
