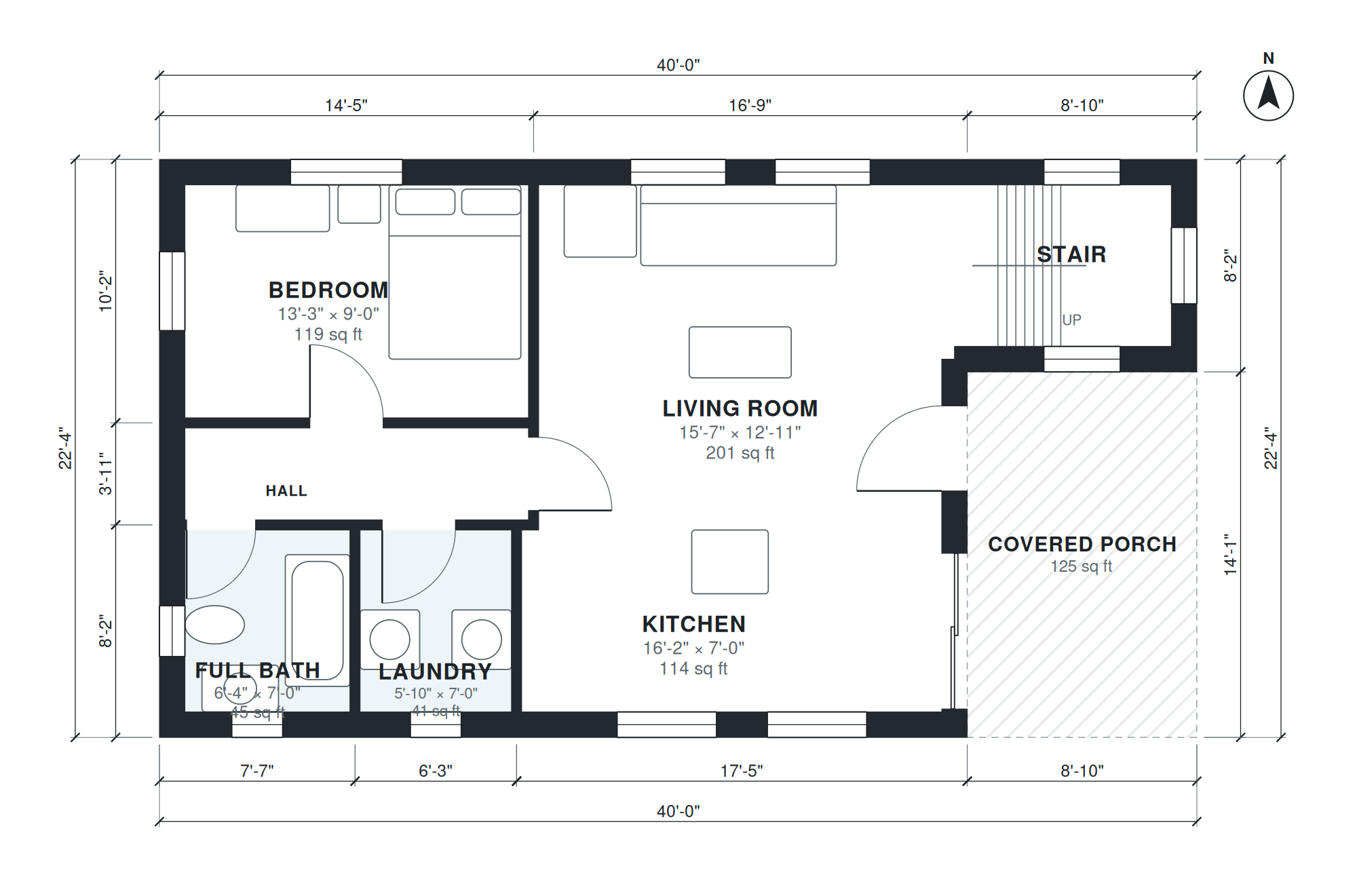

This two-level cabin plan has a 40'-0" × 22'-4" footprint and 1,190 sq ft of living space. The ground floor is organized around a 15'-7" × 12'-11" living room, with a 16'-2" × 7'-0" kitchen beside it and a covered porch outside. A 13'-3" × 3'-7" hall serves the 13'-3" × 9'-0" bedroom, the 6'-4" × 7'-0" full bath and the 5'-10" × 7'-0" laundry, so sleeping and utility spaces stay apart from the main living area.

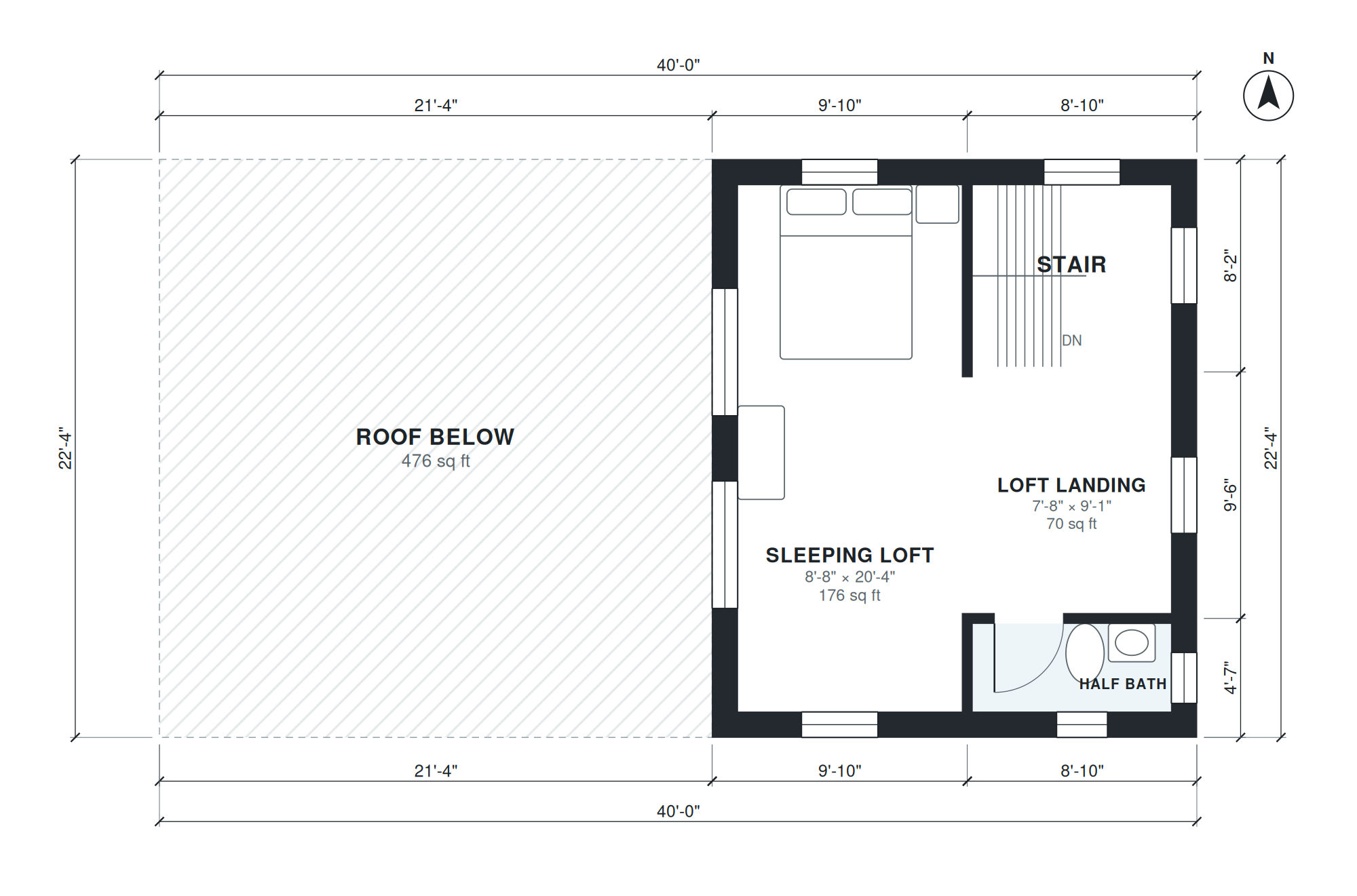

A 7'-8" × 6'-3" stair rises to a 7'-8" × 9'-1" landing on the upper level. From there you reach the 8'-8" × 20'-4" sleeping loft, which works as the second bedroom, and a 7'-8" × 3'-5" half bath. The result is 2 bedrooms and 1.5 baths in a simple rectangular shape, with no garage.
Layout highlights
- Open living room at 15'-7" × 12'-11" sits next to a 16'-2" × 7'-0" kitchen.
- Ground-floor bedroom measures 13'-3" × 9'-0" and connects to the full bath through the hall.
- Full bath (6'-4" × 7'-0") and laundry (5'-10" × 7'-0") sit together on level 1.
- Sleeping loft of 8'-8" × 20'-4" serves as the second bedroom upstairs.
- Upper landing of 7'-8" × 9'-1" gives access to the loft and a 7'-8" × 3'-5" half bath.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Full Bath | 1 | 6'-4" × 7'-0" | 45 sq ft |
| Laundry | 1 | 5'-10" × 7'-0" | 41 sq ft |
| Kitchen | 1 | 16'-2" × 7'-0" | 114 sq ft |
| Hall | 1 | 13'-3" × 3'-7" | 47 sq ft |
| Bedroom | 1 | 13'-3" × 9'-0" | 119 sq ft |
| Living Room | 1 | 15'-7" × 12'-11" | 201 sq ft |
| Stair | 1 | 7'-8" × 6'-3" | 48 sq ft |
| Stair | 2 | 7'-8" × 7'-0" | 54 sq ft |
| Sleeping Loft | 2 | 8'-8" × 20'-4" | 176 sq ft |
| Half Bath | 2 | 7'-8" × 3'-5" | 26 sq ft |
| Loft Landing | 2 | 7'-8" × 9'-1" | 70 sq ft |
Who this plan suits
This plan suits couples, small households or a weekend retreat that wants a main-floor bedroom plus a separate upstairs sleeping space. It needs a lot that can fit a 40'-0" × 22'-4" footprint plus the covered porch, with no garage to accommodate.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Cabin with a sleeping loft: ground floor with 1 bedroom, full bath, open living room and kitchen, laundry, covered porch; upper level loft used as a second bedroom with a half bath. About 1,100 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
