Floor Plan Software That Measures the Plan for You

Floor plan software for people who need the numbers right: describe the house, get a plan with real room sizes and dimension strings that add up, change it by chat, and export PDF, DXF and IFC. Runs in the browser, nothing to install.

Opens Plan Chat with your brief filled in. Nothing is sent until you press send there.

Paid plans from $19/month for 50 generations ($190/year billed annually) + VAT where applicable (EU). One floor plan = one generation. No free tier. Same account and credits in Plan Chat. Have a sketch or a photo of a plan instead? Upload it below.

What the software gives you: every size on the drawing, checked

Drafted by Plan Chat from the one-line brief below, not retouched. The dimension strings, room sizes and areas are read from the plan geometry, so they agree with each other. The checker report under the plan is the engine's own, unedited: it says where the plan falls short of the brief instead of hiding it.

Brief: “Single-story 3 bedroom, 2 bath house plan, open kitchen, dining and living, laundry, 2-car garage, covered back patio, about 1,650 sq ft.”

single-storey 3-bedroom floor plan, about 1,659 sq ft, generated by AI from the brief "Single-story 3 bedroom, 2 bath house plan, open kitchen, dining and living, laundry, 2-car garage, covered back patio, about 1,650 sq ft." with labeled rooms, room sizes, doors, windows and overall dimensions; dimension strings 56'-9" by 39'-4" overall
Overall 56'-9" × 39'-4" · 1,659 sq ft living

What makes it floor plan software, not a picture generator

  • Measured geometry. Rooms are closed shapes with real sizes; walls, doors, dimension strings, room labels and areas are derived from them. That is why the dimension chain along a wall adds up to the overall length.
  • An automatic plan check. Every version is checked: rooms reachable from the front door, halls at least 36 in wide, bedrooms with egress windows, rooms close to the size you asked for. Warnings are shown, not hidden.
  • Edit by chat, with versions. Change one room in plain words and the rest of the house stays. Every change is a version you can go back to.
  • Real files. PDF plan set, layered DXF for AutoCAD and other CAD programs, IFC for BIM tools, GLB for 3D. See the DXF details.
  • Templates. 70 house plans with the brief each was drafted from: copy one, change it, export.

Floor plan software with real dimensions: the 1,650 sq ft example

The plan above came from one sentence. It has a 56'-9" × 39'-4" footprint, a 22'-11" × 13'-7" great room and a 13'-11" × 11'-9" primary bedroom, and the table next to it shows that the room areas add up. Open the 3 bedroom plan to download its PDF, DXF and IFC and check them in your own CAD program.

Floor plan software compared: Plan Chat vs Planner 5D, RoomSketcher, Cedreo and Floorplanner

Facts about other tools come from their public pricing pages, checked October 2026; Planner 5D we also tested hands-on (our test). Where a page does not say something, the table says so instead of guessing. Prices change; check their page before you buy.

SoftwareHow you get the planReal dimensionsCAD / file exportFree tierPrice (public page, Oct 2026)
Plan Chat (this site)Describe the house; the software drafts the whole plan, then you edit it by chatYes: room sizes, dimension strings and areas read from the geometry, plus an automatic plan checkPDF, layered DXF, IFC, GLB on every paid planNo free tier, no trial$19/month for 50 generations ($190/year billed annually); $29 one-time pass
Planner 5DDraw walls and rooms yourself, furnish from a catalog; Smart Wizard starts a single roomYes, the sizes you drawExport to CAD only on ProfessionalFree tierPremium $19.99/month or $59.99/year; Professional $49.99/month or $399.99/year
RoomSketcherDraw it yourself; AI Convert turns an existing floor plan into a project (credits)"Measurements and Total Area" and "Print to scale" on Pro and TeamDWG/DXF export not listed on the pricing pageFree plan (3D snapshots watermarked)Pro $24/month or $144/year; Team $70/month or $420/year (USD, ex. tax)
CedreoHome-builder 2D/3D design: you draw the plan, then renderNot stated on the pricing pageNot stated on the pricing pageFree plan with one projectPersonal (per project, 20 rendering credits) and Pro (monthly renderings); no prices in the public page text
FloorplannerDraw it yourself in the browserNot stated on the pricing pageNot stated on the pricing page; HD/4K/8K image exports per projectFree for casual use: 5 projects, SD exports with watermarkCredit packs: 5 for $8.15, 10 for $16.30, 30 for $48.90, 100 for $163

Sources: planner5d.com/pricing, roomsketcher.com/pricing, cedreo.com/pricing, floorplanner.com/pricing, read October 2026.

Which floor plan program should you pick?

Pick a drawing program (Planner 5D, RoomSketcher, Floorplanner, Cedreo) if you want to place every wall yourself, furnish and decorate rooms in 3D, or need a free tier. They are mature editors and do that job well.

Pick Plan Chat if you would rather describe the house than draw it, need sizes you can trust without checking every line, and want DXF and IFC without paying for a professional tier. For more AI tools side by side, see best AI floor plan generator (2026) and all comparisons.

Price

$19/month for 50 generations ($190/year billed annually), or $29 once for one project (30 generations, no subscription, nothing renews), + VAT where applicable (EU). One floor plan is one generation. No free tier and no trial. If it is not right for you, write to us within 14 days of your first payment for a full refund. Same account and credits in Plan Chat. See all plans.

Make a floor plan in 4 steps

  1. 1

    Describe the house

    Bedrooms, baths, garage, rough size, anything that must sit next to something else. "Single-story 3 bedroom, 2 bath, open kitchen, 2-car garage, about 1,650 sq ft" is enough.

  2. 2

    Check the measured plan

    Read the room sizes, the dimension strings and the checker report. Every number comes from the same geometry, so they agree.

  3. 3

    Edit by chat

    "Make bedroom 2 12 x 11 ft", "move the laundry next to the garage". The rest of the house stays where it was.

  4. 4

    Export

    PDF for the builder or lender, layered DXF for AutoCAD, IFC for BIM tools, GLB for 3D.

Already have a sketch or an old plan?

Upload it here and get a clean, labeled plan drawing in about 30 seconds (PNG/JPG with a DXF beta trace). It keeps your layout but does not measure; for real sizes, read them off the drawing into the Plan Chat brief above. More on sketch to floor plan.

Templates: plans you can start from (copy the brief)

Each plan below was drafted by our AI from the one-line brief under it, not retouched. These were made in Plan Chat (same account and credits), which draws measured plans and exports PDF and DXF. Open a plan to see room sizes and download the files.

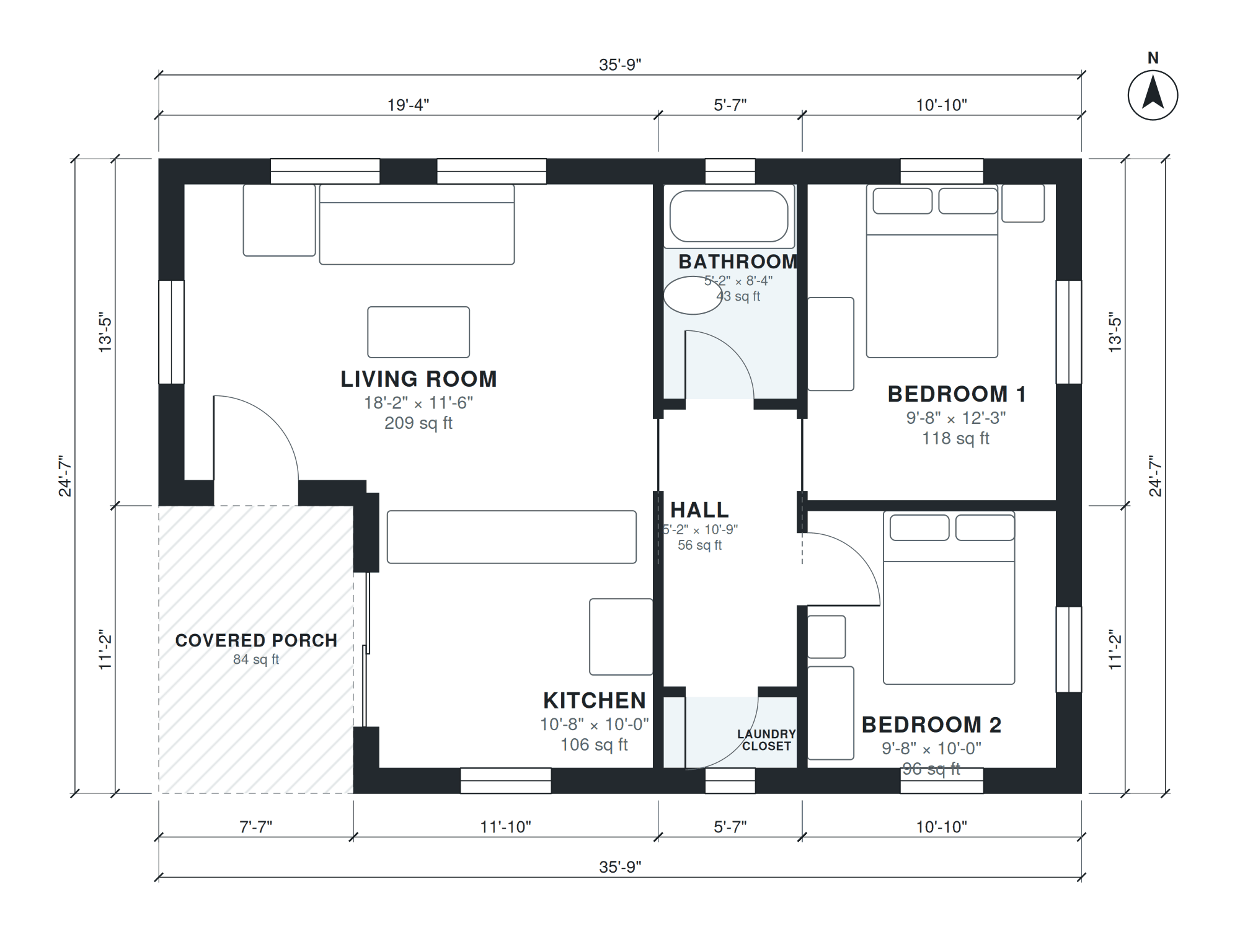

single-storey 2-bedroom floor plan, about 796 sq ft, generated by AI from the brief "Detached 2 bedroom ADU, 1 bath, open kitchen and living, laundry closet, covered porch, about 800 sq ft." with labeled rooms, room sizes, doors, windows and overall dimensions
Brief: “Detached 2 bedroom ADU, 1 bath, open kitchen and living, laundry closet, covered porch, about 800 sq ft.”2 bedroom ADU plans · 796 sq ft · PDF + DXF
2-storey 3-bedroom floor plan, about 2,249 sq ft, generated by AI from the brief "Two-story house: kitchen, dining, living, powder room, mudroom and 2-car garage downstairs; 3 bedrooms including primary suite, 2 baths and laundry upstairs; about 2,300 sq ft." with labeled rooms, room sizes, doors, windows and overall dimensions
Brief: “Two-story house: kitchen, dining, living, powder room, mudroom and 2-car garage downstairs; 3 bedrooms including primary suite, 2 baths and laundry upstairs; about 2,300 sq ft.”Two story house plans · 2,249 sq ft · PDF + DXF

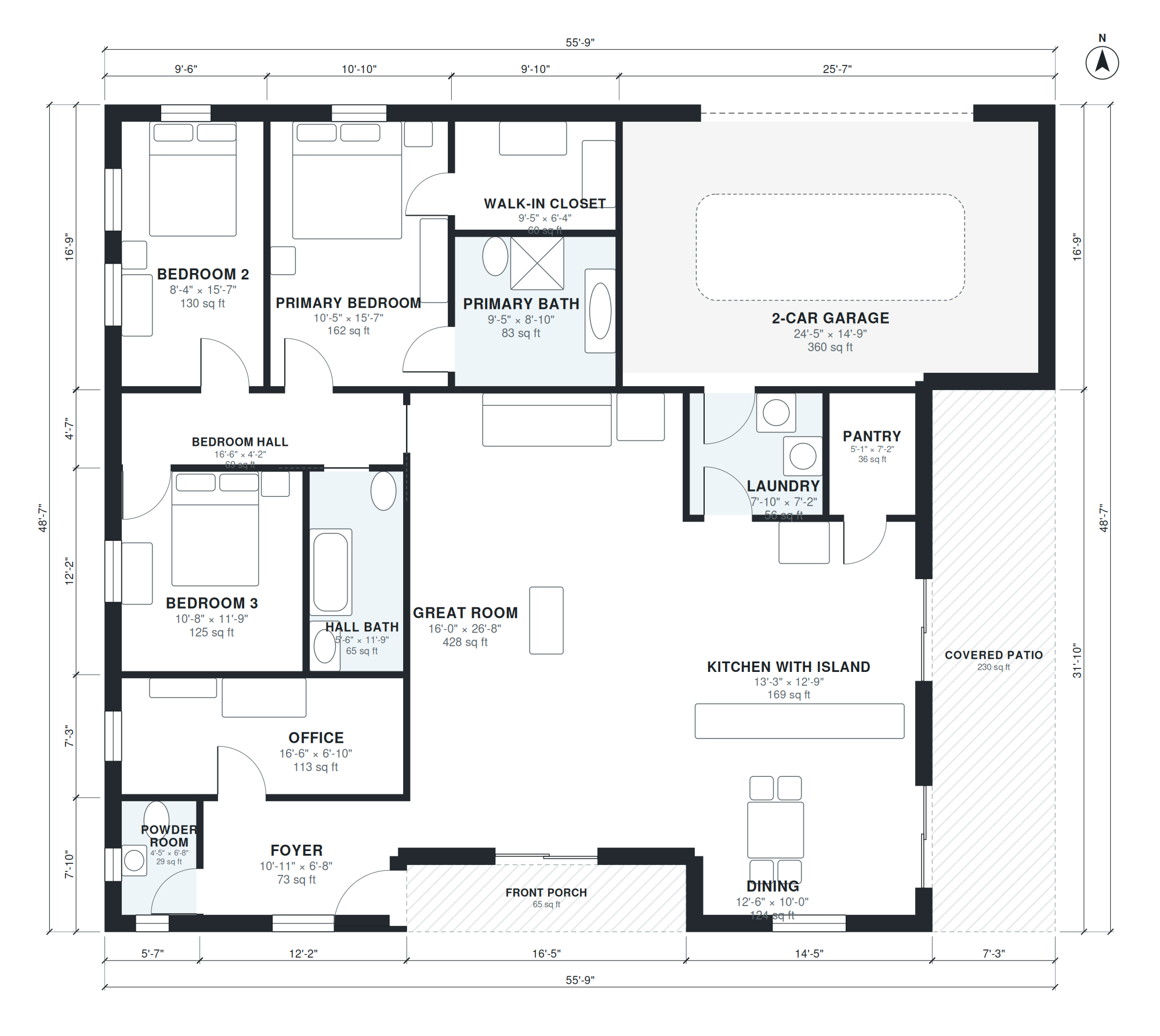

single-storey 3-bedroom floor plan, about 1,986 sq ft, generated by AI from the brief "2,000 sq ft single-story house, 3 bedrooms, 2.5 baths, office, open kitchen with island, great room, laundry, 2-car garage, covered patio." with labeled rooms, room sizes, doors, windows and overall dimensions
Brief: “2,000 sq ft single-story house, 3 bedrooms, 2.5 baths, office, open kitchen with island, great room, laundry, 2-car garage, covered patio.”2000 sq ft house plans · 1,986 sq ft · PDF + DXF

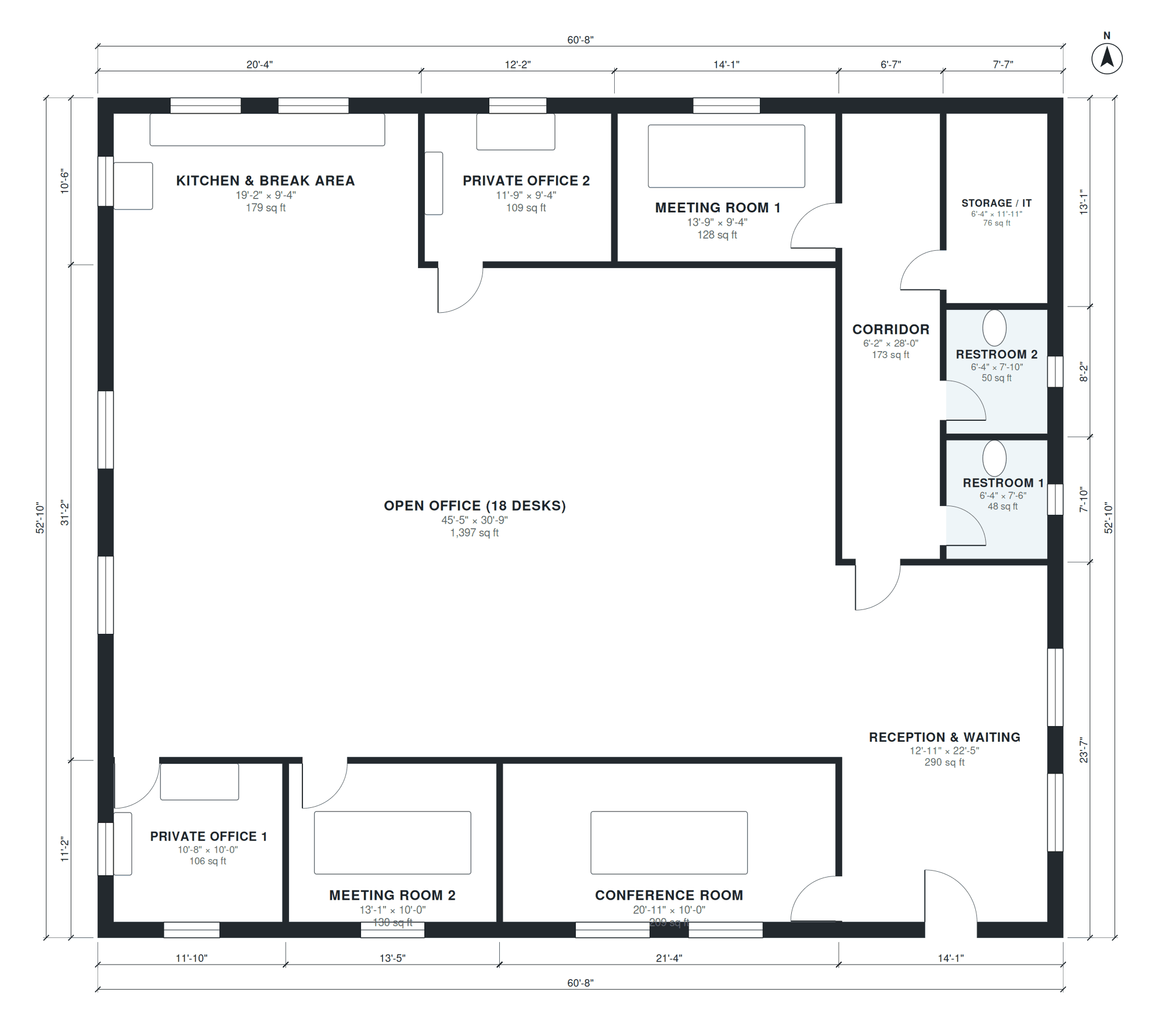

single-storey floor plan, about 3,206 sq ft, generated by AI from the brief "Small office for 20 people: reception, open office, 3 meeting rooms, 2 private offices, kitchen, 2 restrooms, storage, about 3,200 sq ft." with labeled rooms, room sizes, doors, windows and overall dimensions
Brief: “Small office for 20 people: reception, open office, 3 meeting rooms, 2 private offices, kitchen, 2 restrooms, storage, about 3,200 sq ft.”Small office floor plans · 3,206 sq ft · PDF + DXF

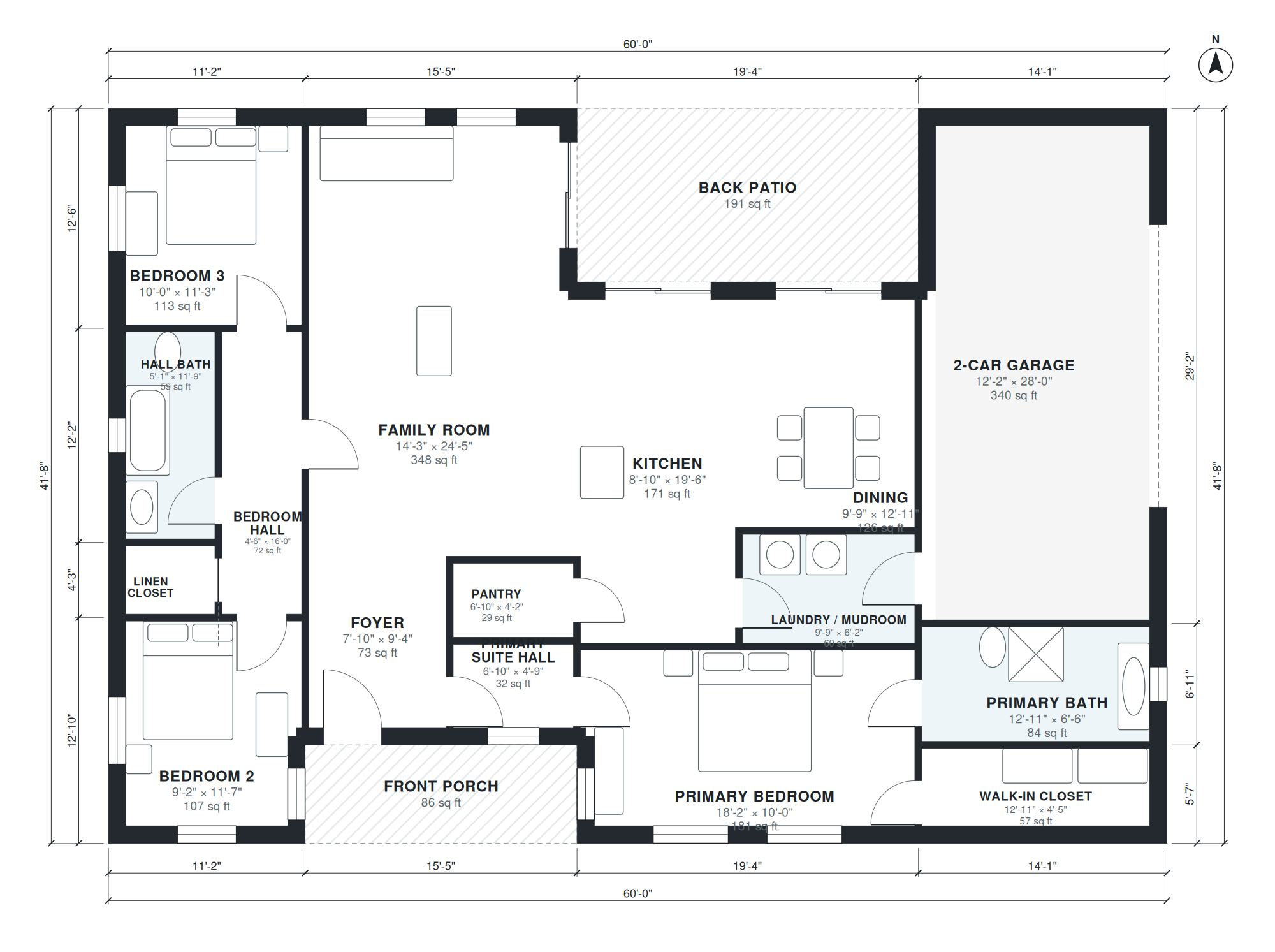

single-storey 3-bedroom floor plan, about 1,813 sq ft, generated by AI from the brief "Classic ranch house, 3 bedrooms, 2 baths, split bedroom layout, open kitchen and family room, laundry, 2-car garage, back patio, about 1,800 sq ft." with labeled rooms, room sizes, doors, windows and overall dimensions
Brief: “Classic ranch house, 3 bedrooms, 2 baths, split bedroom layout, open kitchen and family room, laundry, 2-car garage, back patio, about 1,800 sq ft.”Ranch house plans · 1,813 sq ft · PDF + DXF

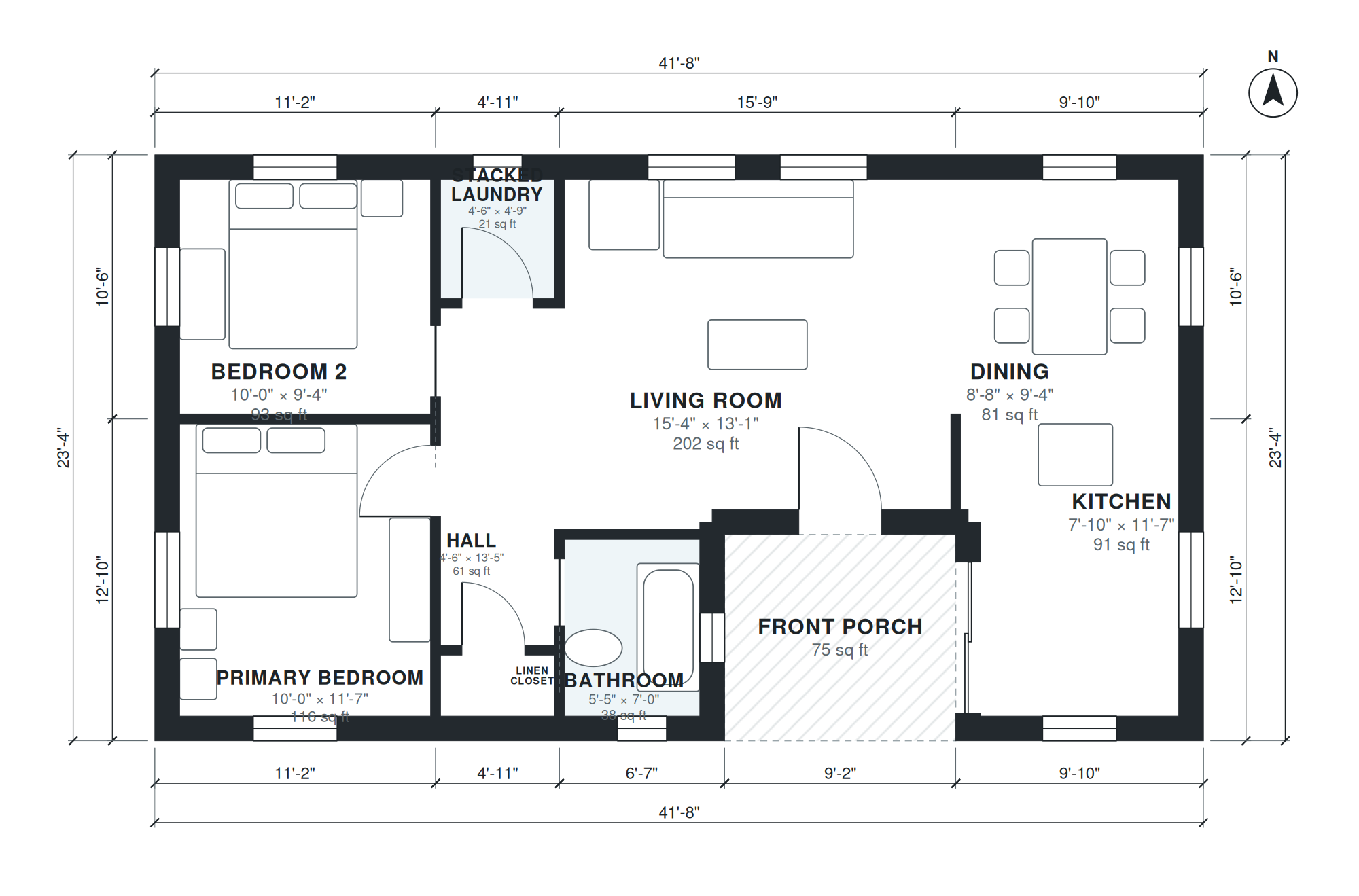

single-storey 2-bedroom floor plan, about 895 sq ft, generated by AI from the brief "Small efficient house, 2 bedrooms, 1 bath, open kitchen and living, stacked laundry, front porch, about 900 sq ft." with labeled rooms, room sizes, doors, windows and overall dimensions
Brief: “Small efficient house, 2 bedrooms, 1 bath, open kitchen and living, stacked laundry, front porch, about 900 sq ft.”Small house plans · 895 sq ft · PDF + DXF

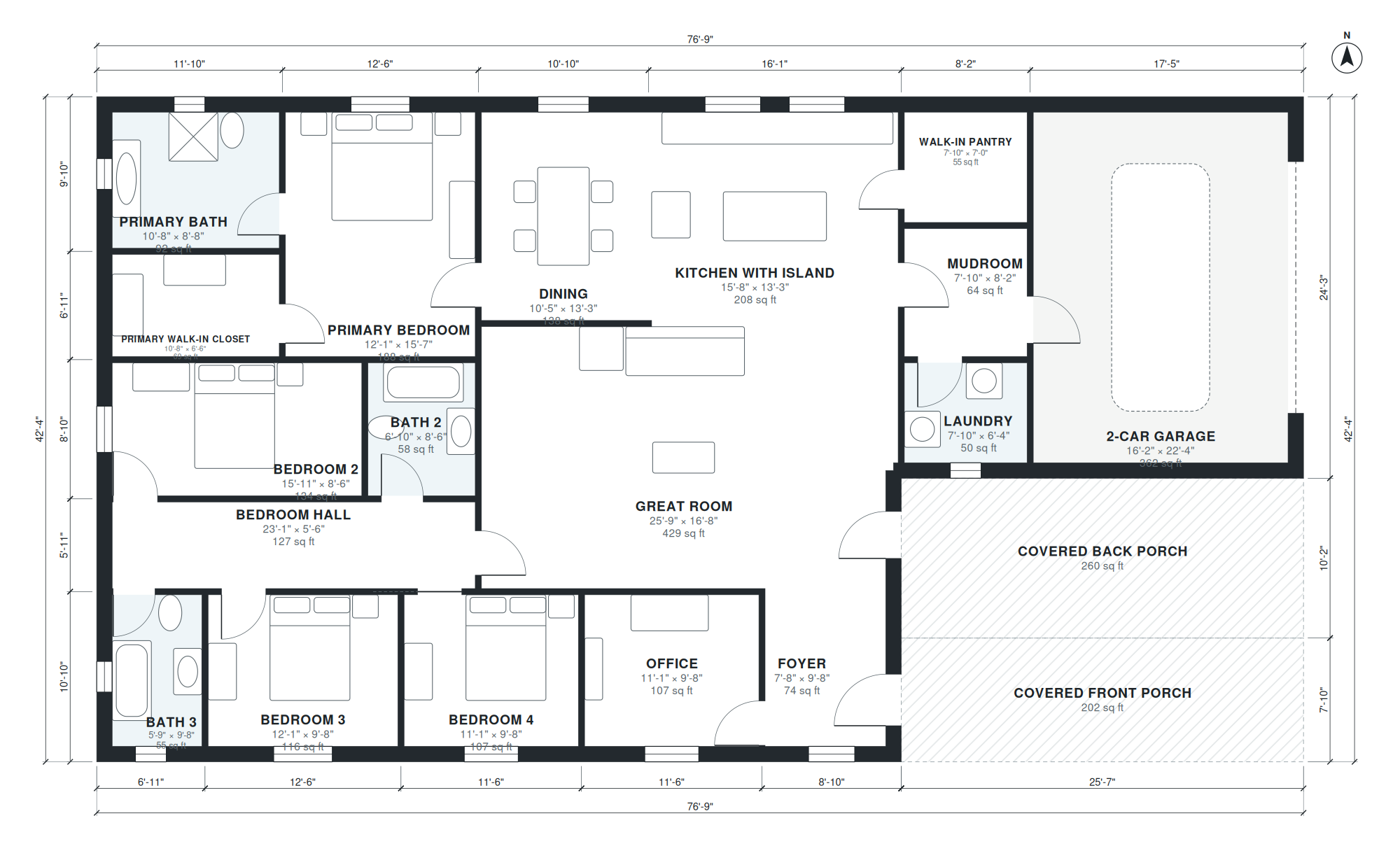

single-storey 4-bedroom floor plan, about 2,365 sq ft, generated by AI from the brief "Modern farmhouse, 4 bedrooms, 3 baths, big kitchen island with walk-in pantry, great room, office, mudroom off 2-car garage, covered front and back porch, about 2,700 sq ft, one story." with labeled rooms, room sizes, doors, windows and overall dimensions
Brief: “Modern farmhouse, 4 bedrooms, 3 baths, big kitchen island with walk-in pantry, great room, office, mudroom off 2-car garage, covered front and back porch, about 2,700 sq ft, one story.”Modern farmhouse plans · 2,365 sq ft · PDF + DXF
2-storey 3-bedroom floor plan, about 1,791 sq ft, generated by AI from the brief "Two-story narrow lot house for a 35 ft wide lot, open kitchen and living downstairs, powder room, 1-car garage, 3 bedrooms and 2 baths upstairs, about 1,900 sq ft." with labeled rooms, room sizes, doors, windows and overall dimensions
Brief: “Two-story narrow lot house for a 35 ft wide lot, open kitchen and living downstairs, powder room, 1-car garage, 3 bedrooms and 2 baths upstairs, about 1,900 sq ft.”Narrow lot house plans · 1,791 sq ft · PDF + DXF
