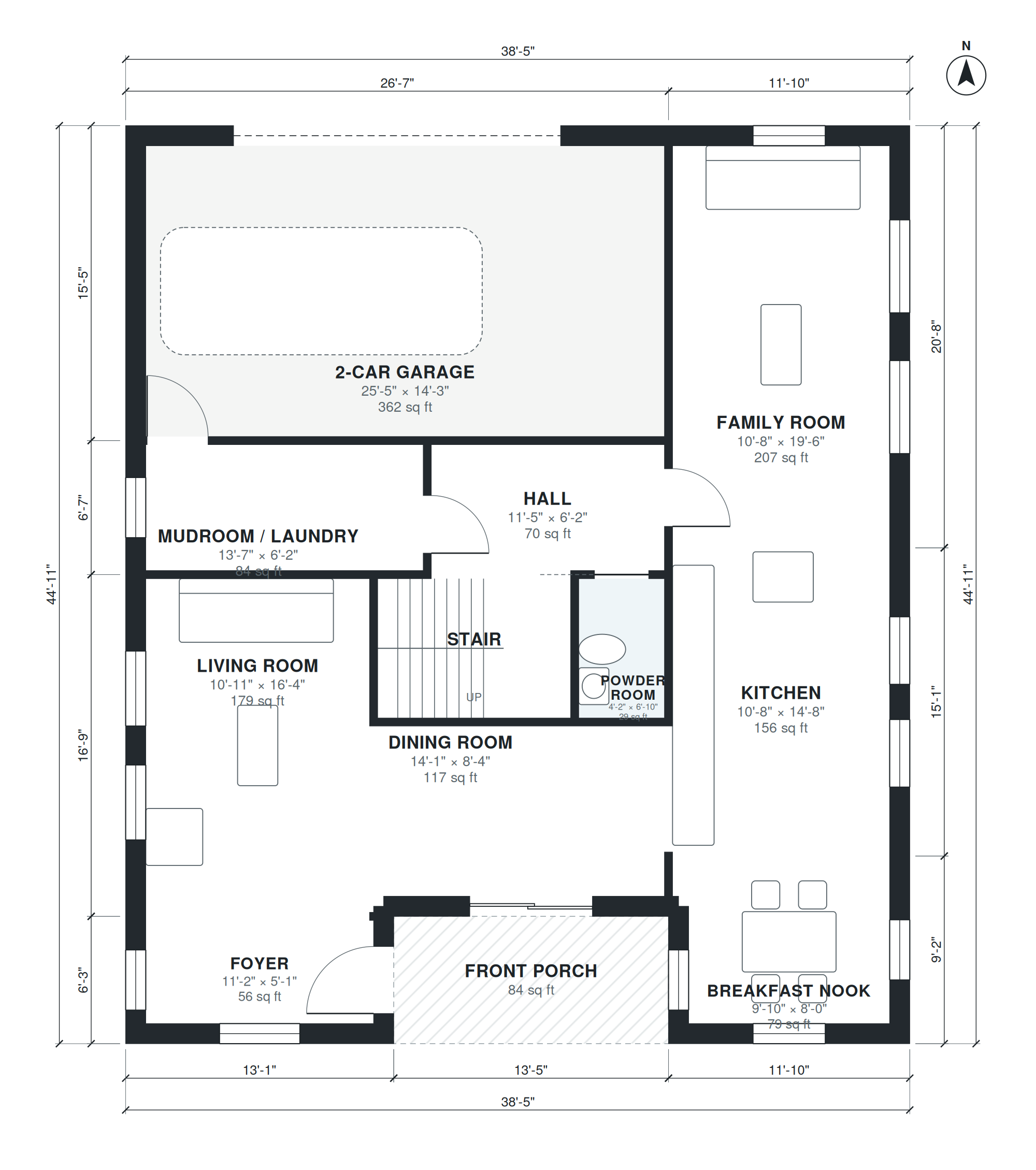

This traditional two-story plan provides 2,410 square feet of living space, not counting the garage, on a footprint of 38'-5" × 44'-11". A front porch leads into an 11'-2" × 5'-1" foyer. The living room (10'-11" × 16'-4") and dining room (14'-1" × 8'-4") sit off the entry, and the stair rises beside the foyer.
At the back, the kitchen (10'-8" × 14'-8") opens to a breakfast nook (9'-10" × 8'-0") and a family room (10'-8" × 19'-6"). A hall connects the main rooms to a powder room and a mudroom/laundry (13'-7" × 6'-2"), which links to the 25'-5" × 14'-3" two-car garage. Upstairs, a 26'-8" upper hall serves four bedrooms, including a 15'-3" × 15'-11" primary suite with a walk-in closet and bath, plus a shared hall bath.
Layout highlights
- Mudroom/laundry, 13'-7" × 6'-2", sits between the hall and the 25'-5" × 14'-3" garage.
- Kitchen (10'-8" × 14'-8") opens to a 9'-10" × 8'-0" breakfast nook.
- Family room measures 10'-8" × 19'-6", next to the kitchen and nook.
- Primary suite: 15'-3" × 15'-11" bedroom, 8'-8" × 6'-4" walk-in closet, 10'-8" × 9'-1" bath.
- Three more bedrooms upstairs share a hall bath, with a powder room on the ground floor.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Foyer | 1 | 11'-2" × 5'-1" | 56 sq ft |
| Living Room | 1 | 10'-11" × 16'-4" | 179 sq ft |
| Dining Room | 1 | 14'-1" × 8'-4" | 117 sq ft |
| Stair | 1 | 9'-5" × 6'-10" | 64 sq ft |
| Powder Room | 1 | 4'-2" × 6'-10" | 29 sq ft |
| Mudroom / Laundry | 1 | 13'-7" × 6'-2" | 84 sq ft |
| Hall | 1 | 11'-5" × 6'-2" | 70 sq ft |
| 2-Car Garage | 1 | 25'-5" × 14'-3" | 362 sq ft |
| Breakfast Nook | 1 | 9'-10" × 8'-0" | 79 sq ft |
| Kitchen | 1 | 10'-8" × 14'-8" | 156 sq ft |
| Family Room | 1 | 10'-8" × 19'-6" | 207 sq ft |
| Stair | 2 | 8'-8" × 6'-10" | 59 sq ft |
| Upper Hall | 2 | 4'-2" × 26'-8" | 112 sq ft |
| Hall Bath | 2 | 10'-8" × 5'-1" | 54 sq ft |
| Bedroom 4 | 2 | 10'-8" × 11'-9" | 125 sq ft |
| Primary Bath | 2 | 10'-8" × 9'-1" | 97 sq ft |
| Primary Bedroom | 2 | 15'-3" × 15'-11" | 242 sq ft |
| Bedroom 2 | 2 | 8'-8" × 14'-7" | 126 sq ft |
| Bedroom 3 | 2 | 8'-8" × 14'-1" | 122 sq ft |
| Walk-in Closet | 2 | 8'-8" × 6'-4" | 55 sq ft |
Who this plan suits
This plan suits families who want four bedrooms on one floor, a separate living and dining room, and a family room at the back of the house. It needs a lot that fits the 38'-5" × 44'-11" footprint plus setbacks, with a driveway to the attached garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story traditional house, 4 bedrooms, 2.5 baths, ground floor living, dining, kitchen with nook, family room, powder room; upstairs 4 bedrooms, attached 2-car garage, front porch, about 2,500 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are traditional house plans?
Traditional house plans use familiar, symmetrical forms, defined rooms such as a separate living room and dining room, and a front porch at the entry. This plan follows that approach on two levels, with living areas on the ground floor and four bedrooms above.
What affects the cost and lot requirements of this plan?
The 2,410 sq ft of living space, two stories, and an attached 2-car garage all influence the build, as do local labor, materials, foundation type and site conditions. The footprint is 38'-5" × 44'-11", so check your lot's width, depth and setbacks before committing.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing or moving rooms, switching the garage to the other side, or fitting a narrower lot. The plan is regenerated to reflect the revised layout.
How do I use the PDF, DXF and IFC files?
The PDF is for reading and sharing the floor plans. DXF files open in CAD software for drafting and editing, and the IFC file loads into BIM tools for 3D review. Have a licensed local professional check any plan before permitting or construction.
