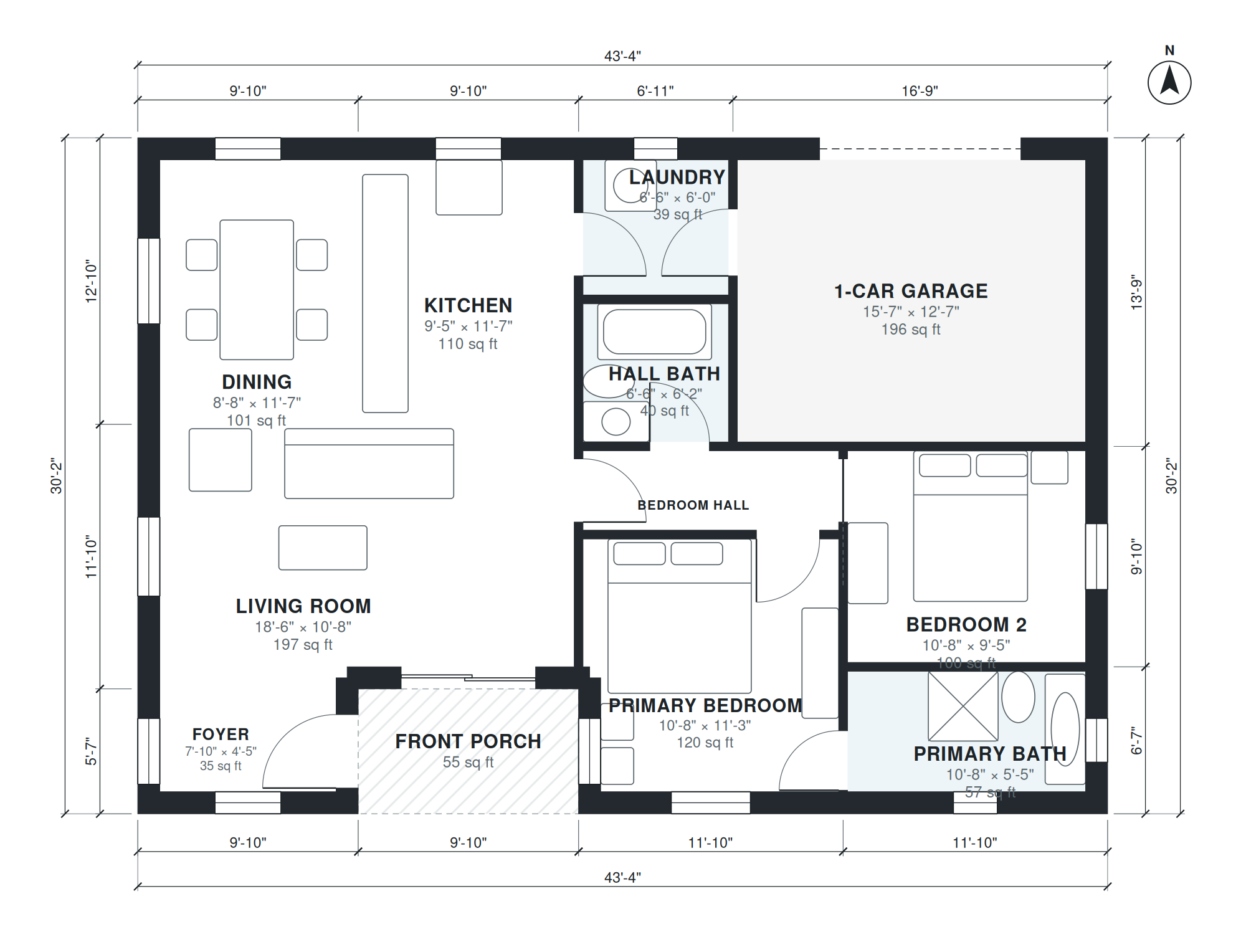

This single-story plan has 1,020 square feet of living space, not counting the garage, inside a 43'-4" × 30'-2" footprint. A small front porch leads to a 7'-10" × 4'-5" foyer and then to an 18'-6" × 10'-8" living room. The kitchen (9'-5" × 11'-7") and dining area (8'-8" × 11'-7") share the open main space with the living room, so cooking, eating and sitting happen in one connected area.
The bedrooms are grouped off an 11'-5" × 3'-7" hall. The primary bedroom (10'-8" × 11'-3") has its own 10'-8" × 5'-5" bath. Bedroom 2 (10'-8" × 9'-5") uses the 6'-6" × 6'-2" hall bath. The 1-car garage (15'-7" × 12'-7") enters through the 6'-6" × 6'-0" laundry, so groceries and wet coats come in without crossing the living areas.
Layout highlights
- Living room measures 18'-6" × 10'-8" and opens to the kitchen and dining area.
- Kitchen at 9'-5" × 11'-7" sits next to an 8'-8" × 11'-7" dining space.
- Primary bedroom of 10'-8" × 11'-3" has a private 10'-8" × 5'-5" bath.
- Garage (15'-7" × 12'-7") enters through a 6'-6" × 6'-0" laundry room.
- Compact 43'-4" × 30'-2" footprint with a front porch and 7'-10" × 4'-5" foyer.
Room sizes
| Room | Size | Area |
|---|---|---|
| Foyer | 7'-10" × 4'-5" | 35 sq ft |
| Living Room | 18'-6" × 10'-8" | 197 sq ft |
| Dining | 8'-8" × 11'-7" | 101 sq ft |
| Kitchen | 9'-5" × 11'-7" | 110 sq ft |
| Primary Bedroom | 10'-8" × 11'-3" | 120 sq ft |
| Bedroom Hall | 11'-5" × 3'-7" | 40 sq ft |
| Primary Bath | 10'-8" × 5'-5" | 57 sq ft |
| Bedroom 2 | 10'-8" × 9'-5" | 100 sq ft |
| Hall Bath | 6'-6" × 6'-2" | 40 sq ft |
| Laundry | 6'-6" × 6'-0" | 39 sq ft |
| 1-Car Garage | 15'-7" × 12'-7" | 196 sq ft |
Who this plan suits
This plan suits individuals, couples, or small households who want two bedrooms, two baths and a garage on one level, including those planning to downsize. It needs a lot that fits the 43'-4" × 30'-2" footprint plus a driveway to the garage and room for the front porch.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Small single-story house, 2 bedrooms, 2 baths, open kitchen and living, laundry, attached 1-car garage entering through the laundry, small front porch, about 1,000 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are small house plans with a garage?
They are compact homes, usually one story, that include an attached or detached garage within a modest footprint. This version has 1,020 sq ft of living space, 2 bedrooms and 2 baths, plus a 1-car garage that is not counted in that figure.
What affects the cost and lot needs of this plan?
The 43'-4" × 30'-2" footprint keeps the foundation and roof simple, but local soil, site work, finishes and labor rates drive the final cost. The lot must fit the footprint, the driveway to the garage and any setbacks your jurisdiction requires.
Can I change this plan by chat?
Yes. You can ask in chat to resize or rearrange rooms, move the garage to the other side, or adapt the layout to a narrower or wider lot. The plan is regenerated to reflect the change, and you can review the updated room sizes before you download.
How do I use the PDF, DXF and IFC files?
The PDF is for reading, printing and sharing the drawings with a builder or permit office. The DXF opens in CAD tools for editing 2D linework, and the IFC loads into BIM software for a 3D model with building elements. Local permits usually require review by a licensed professional.
