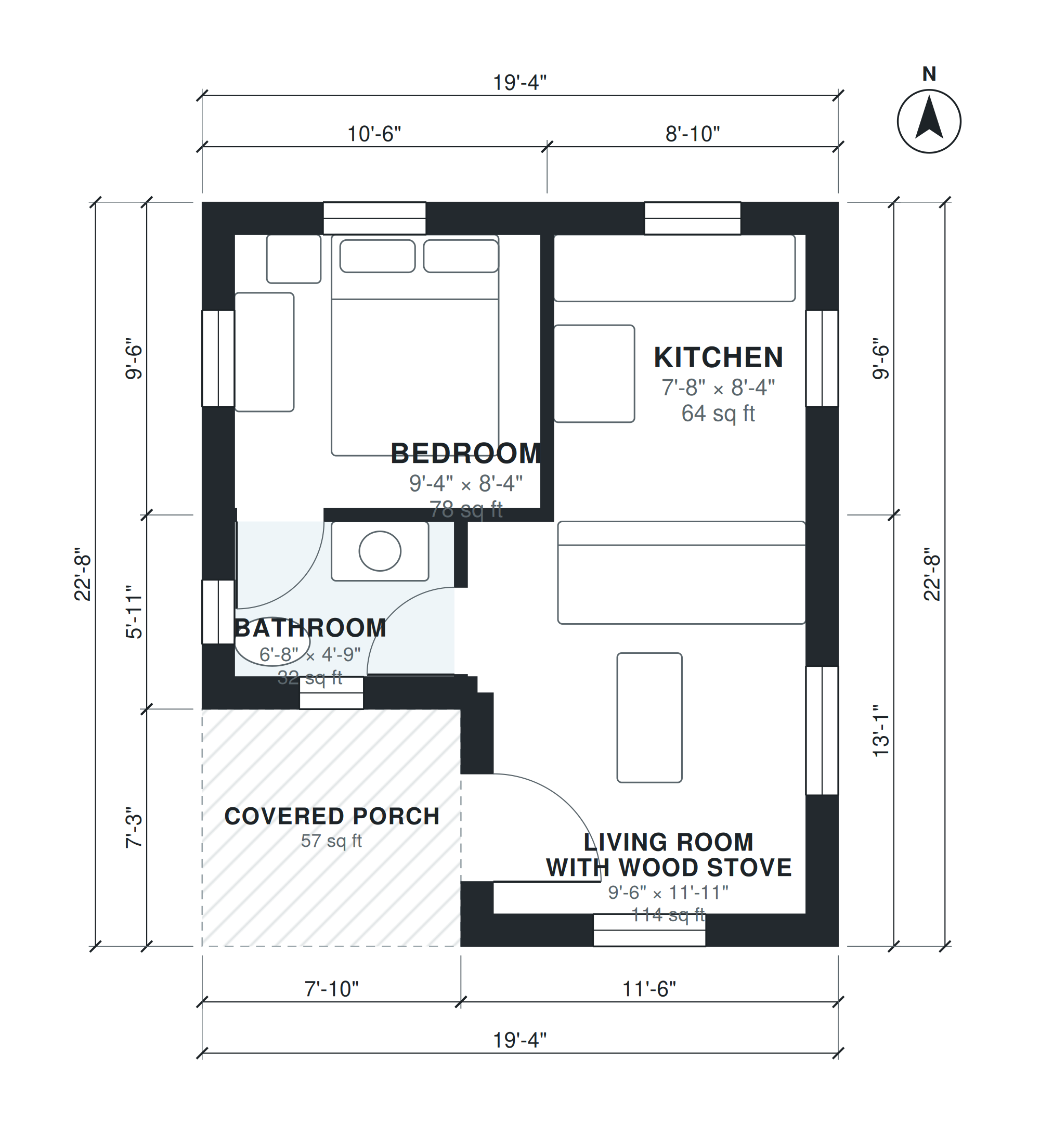

This tiny cabin plan fits one bedroom and one bath into 380 square feet of living space on a single level. The footprint measures 19'-4" × 22'-8", and a covered porch marks the entry. Inside, the kitchen (7'-8" × 8'-4") opens directly to the living room (9'-6" × 11'-11"), so cooking, sitting and the wood stove share one room.
The bedroom (9'-4" × 8'-4") and the bathroom (6'-8" × 4'-9") are the two enclosed rooms, both reached from the main living space without a hallway. Keeping circulation this short leaves most of the 380 square feet as usable room area. The wood stove sits in the living room, so heat is concentrated where the household spends most of its time. The covered porch adds a sheltered place to sit outside.
Layout highlights
- Open living room with wood stove measures 9'-6" × 11'-11".
- Kitchen at 7'-8" × 8'-4" opens directly to the living room.
- Bedroom at 9'-4" × 8'-4" is a private room off the main space.
- Bathroom at 6'-8" × 4'-9" is compact and fully enclosed.
- Compact 19'-4" × 22'-8" footprint with a covered porch and no garage.
Room sizes
| Room | Size | Area |
|---|---|---|
| Bathroom | 6'-8" × 4'-9" | 32 sq ft |
| Living Room with Wood Stove | 9'-6" × 11'-11" | 114 sq ft |
| Bedroom | 9'-4" × 8'-4" | 78 sq ft |
| Kitchen | 7'-8" × 8'-4" | 64 sq ft |
Who this plan suits
This plan suits a couple, a solo owner or a guest cabin that needs one bedroom and a simple, efficient layout. It needs a lot that fits the 19'-4" × 22'-8" footprint plus the covered porch, with room for a stove chimney and firewood storage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Tiny cabin: 1 bedroom, 1 bath, open kitchen and living with wood stove, covered porch, about 380 sq ft.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are tiny cabin plans?
Tiny cabin plans describe a small, simple dwelling that combines living, sleeping, cooking and bathing in a compact footprint. This version has 380 square feet on one level, with one bedroom, one bath and a covered porch.
What affects the cost and lot requirements of this cabin?
The 19'-4" × 22'-8" footprint keeps foundation and roof area small, while the plumbing for the kitchen and bathroom and the wood stove chimney are the main systems to plan for. Check local codes for minimum dwelling size, setbacks, septic or sewer, and stove clearances before you build.
Can I change this plan by chat?
Yes. You can ask for changes in chat, such as resizing rooms, moving the porch, adding a garage on a chosen side, or adjusting the plan for a narrower or wider lot. The layout is updated to match your request.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing and sharing the plan, including with a builder or permit office. The DXF opens in CAD software for editing or site layout, and the IFC imports into BIM tools for coordination and modeling.
