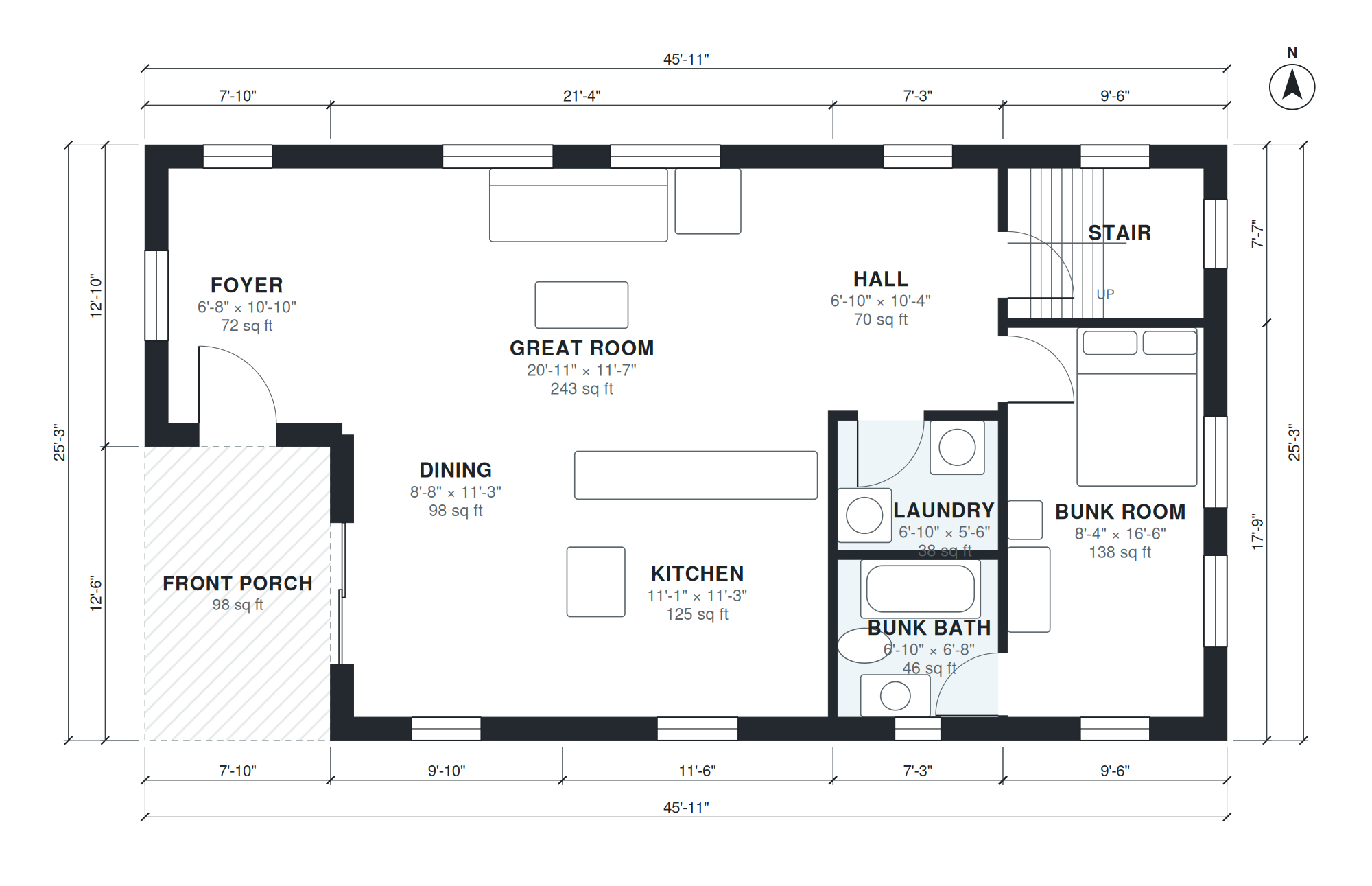

This two-story vacation house plan holds 1,790 square feet of living space, garage not included, in a 45'-11" × 25'-3" footprint. A front porch opens to a 6'-8" × 10'-10" foyer. The ground floor is organized around a 20'-11" × 11'-7" great room, with an 11'-1" × 11'-3" kitchen and an 8'-8" × 11'-3" dining room alongside it. A hall serves the laundry and the bunk room, which has its own 6'-10" × 6'-8" bath.

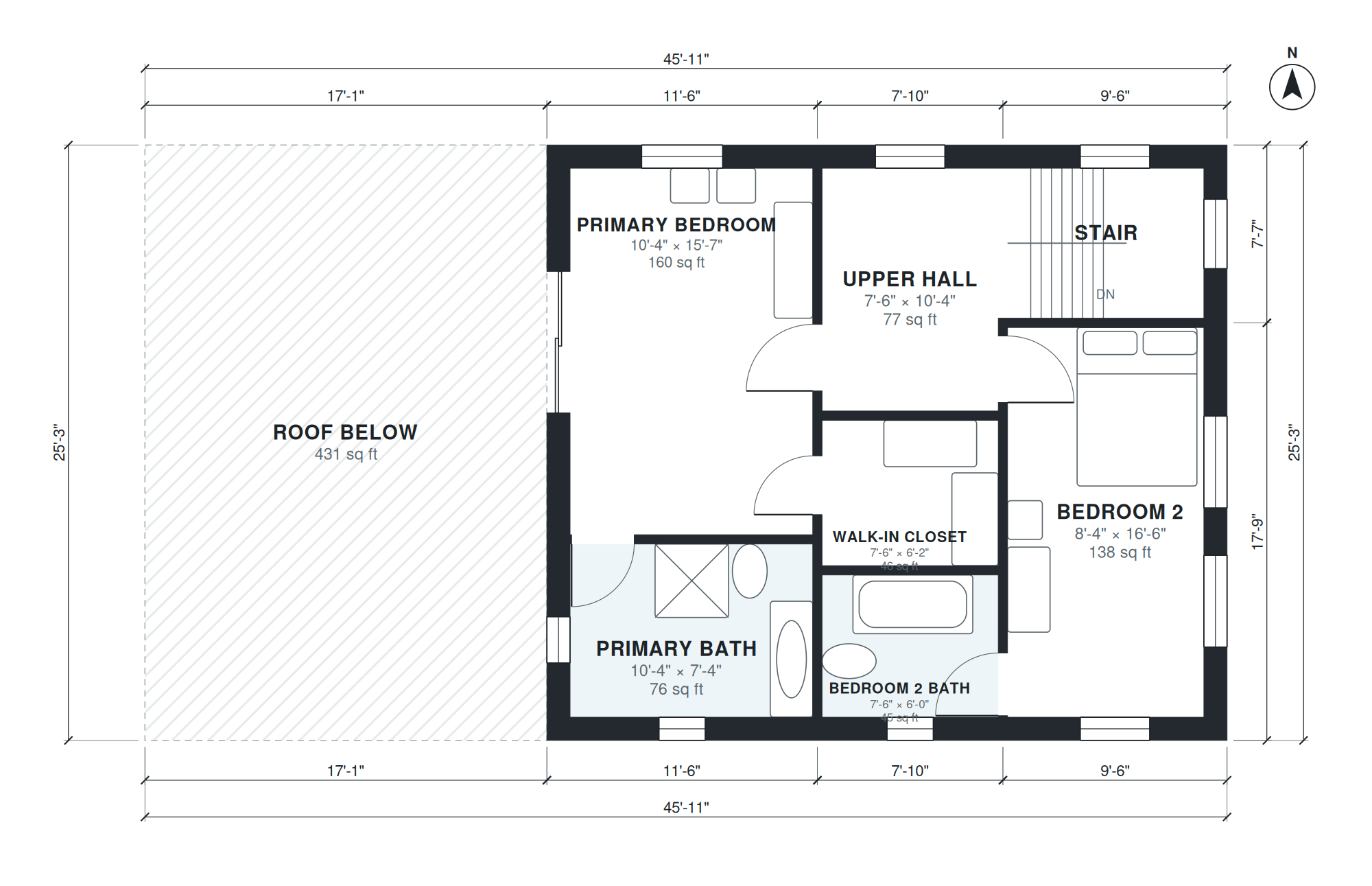

An 8'-4" × 6'-4" stair rises to a 7'-6" × 10'-4" upper hall that separates the two bedroom suites. The primary bedroom measures 10'-4" × 15'-7" and pairs with a 10'-4" × 7'-4" bath and a 7'-6" × 6'-2" walk-in closet. Bedroom 2 measures 8'-4" × 16'-6" and has a 7'-6" × 6'-0" bath. Every bedroom has a bath, which suits shared stays.
Layout highlights
- Great room of 20'-11" × 11'-7" anchors the ground floor next to the kitchen and dining room.
- Kitchen at 11'-1" × 11'-3" and dining at 8'-8" × 11'-3" share the same depth.
- Ground-floor bunk room of 8'-4" × 16'-6" has its own 6'-10" × 6'-8" bath.
- Primary suite upstairs: 10'-4" × 15'-7" bedroom, 10'-4" × 7'-4" bath, 7'-6" × 6'-2" walk-in closet.
- Compact 45'-11" × 25'-3" footprint with a front porch and 1,790 sq ft of living space.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Dining | 1 | 8'-8" × 11'-3" | 98 sq ft |
| Kitchen | 1 | 11'-1" × 11'-3" | 125 sq ft |
| Foyer | 1 | 6'-8" × 10'-10" | 72 sq ft |
| Great Room | 1 | 20'-11" × 11'-7" | 243 sq ft |
| Bunk Bath | 1 | 6'-10" × 6'-8" | 46 sq ft |
| Laundry | 1 | 6'-10" × 5'-6" | 38 sq ft |
| Hall | 1 | 6'-10" × 10'-4" | 70 sq ft |
| Bunk Room | 1 | 8'-4" × 16'-6" | 138 sq ft |
| Stair | 1 | 8'-4" × 6'-4" | 53 sq ft |
| Stair | 2 | 8'-4" × 6'-4" | 53 sq ft |
| Primary Bath | 2 | 10'-4" × 7'-4" | 76 sq ft |
| Primary Bedroom | 2 | 10'-4" × 15'-7" | 160 sq ft |
| Bedroom 2 Bath | 2 | 7'-6" × 6'-0" | 45 sq ft |
| Walk-in Closet | 2 | 7'-6" × 6'-2" | 46 sq ft |
| Upper Hall | 2 | 7'-6" × 10'-4" | 77 sq ft |
| Bedroom 2 | 2 | 8'-4" × 16'-6" | 138 sq ft |
Who this plan suits
This plan suits families or groups who want three bedrooms with a private bath for each, plus a bunk room for guests. It needs a lot at least wide enough for the 45'-11" length, with room in front for the porch, and no garage is included.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story vacation house, 3 bedrooms, 3 baths, ground floor great room, kitchen, dining, bunk room with bath; upstairs 2 bedrooms with baths, front porch, about 1,800 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are vacation home plans?
Vacation home plans are layouts designed for second homes and rentals, usually with a large shared living area, extra sleeping space and a porch or outdoor room. This one offers 3 bedrooms, 3 baths and a bunk room in 1,790 sq ft of living space.
What affects the cost and lot needs of this plan?
The main drivers are the two-story structure over a 45'-11" × 25'-3" footprint, the three full baths and the local site conditions such as slope, soil and codes. Because the footprint is compact, the lot mostly needs to fit the house, the porch and your required setbacks.
Can I change this plan by chat?
Yes. You can ask in chat to resize or move rooms, add a garage on the side you prefer, or adapt the plan to a narrower or wider lot. The layout is regenerated so the rooms still connect.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the plan and sharing it with a builder or permit office. The DXF opens in CAD software for editing the drawings, and the IFC loads into BIM tools for a 3D model. Local engineering and permit review are still required before construction.
