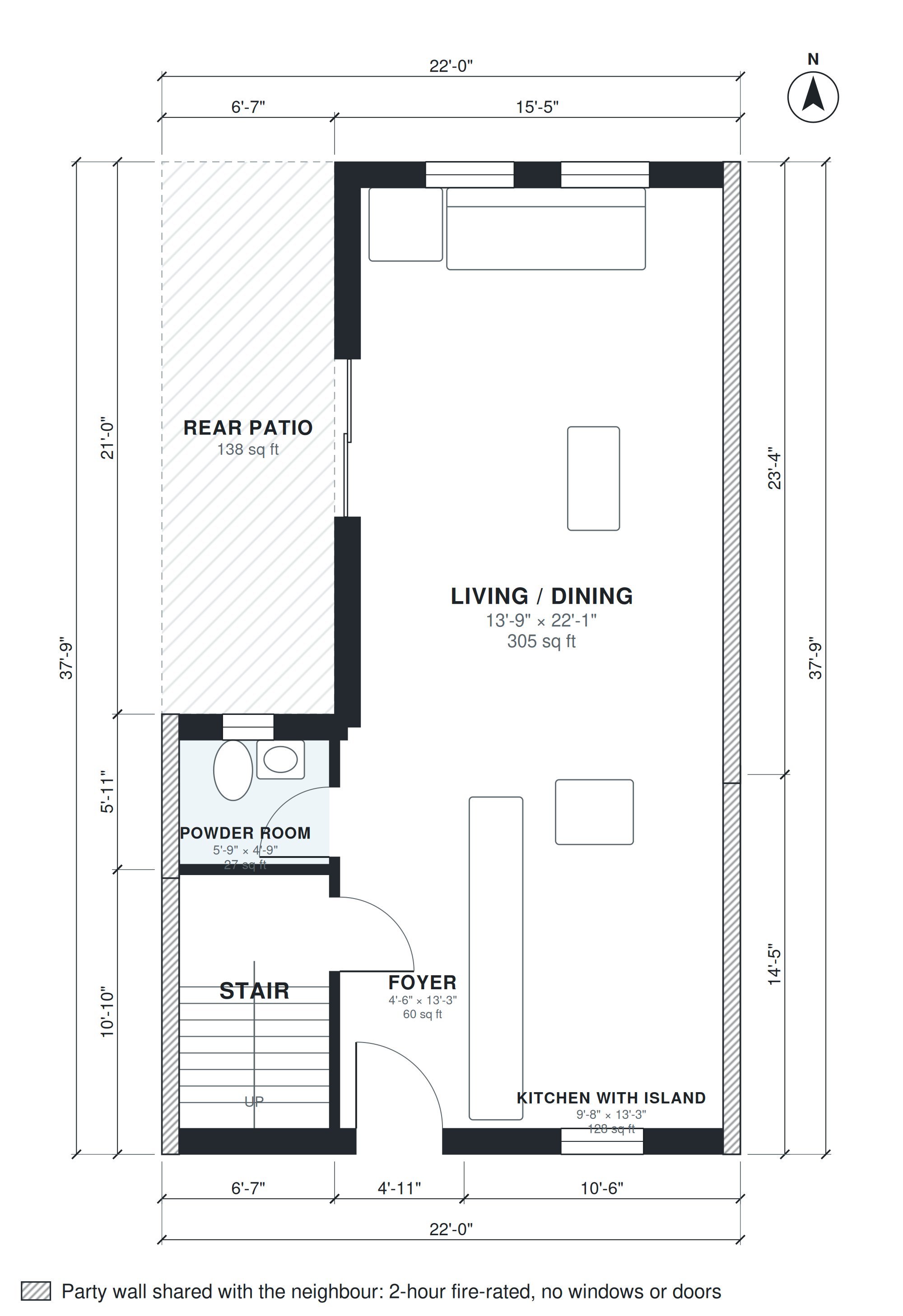

This two-story townhouse plan has a footprint of 22'-0" × 37'-9" and 1,520 sq ft of living space. It has no garage. You enter through a 4'-6" × 13'-3" foyer. A powder room (5'-9" × 4'-9") and the stair (5'-9" × 9'-8") sit beside it, and the foyer leads on to the kitchen with island, which measures 9'-8" × 13'-3".

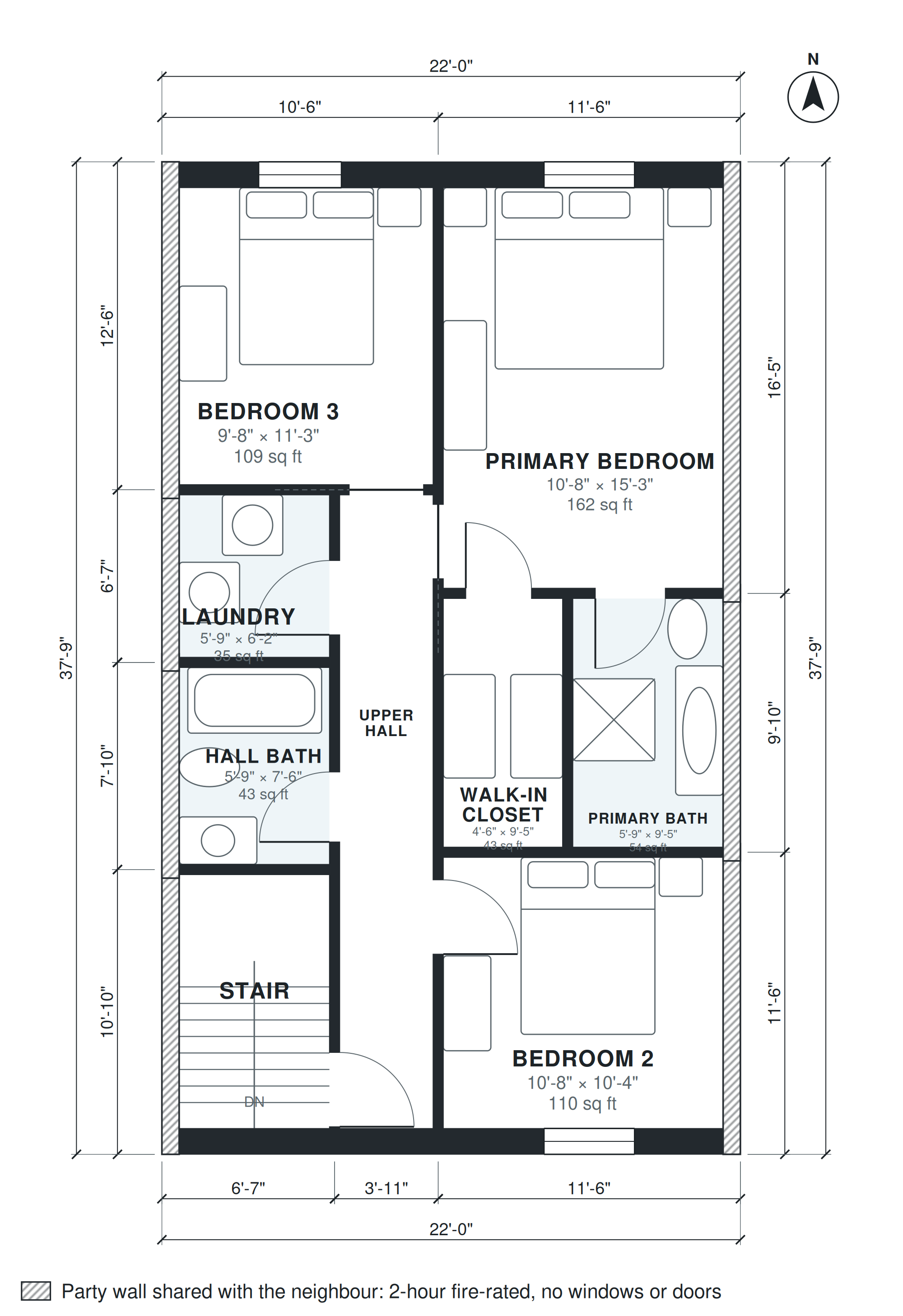

The living and dining room, 13'-9" × 22'-1", spans the full width of the house and opens to the rear patio. Upstairs, a 3'-7" × 24'-1" hall connects the stair, laundry, hall bath, Bedroom 2 (10'-8" × 10'-4") and Bedroom 3 (9'-8" × 11'-3"). The primary bedroom (10'-8" × 15'-3") has a 4'-6" × 9'-5" walk-in closet and a 5'-9" × 9'-5" bath. Party walls run along both long sides, so windows are limited to the front and rear facades.
Layout highlights
- Open kitchen with island, 9'-8" × 13'-3", sits directly off the foyer.
- Living and dining room, 13'-9" × 22'-1", spans the full 22-foot width.
- Rear patio connects to the living and dining room at the back of the house.
- Primary suite: 10'-8" × 15'-3" bedroom, 4'-6" × 9'-5" walk-in closet, private bath.
- Laundry (5'-9" × 6'-2") and hall bath share the upper hall with two bedrooms.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Stair | 1 | 5'-9" × 9'-8" | 55 sq ft |
| Foyer | 1 | 4'-6" × 13'-3" | 60 sq ft |
| Kitchen with Island | 1 | 9'-8" × 13'-3" | 128 sq ft |
| Living / Dining | 1 | 13'-9" × 22'-1" | 305 sq ft |
| Powder Room | 1 | 5'-9" × 4'-9" | 27 sq ft |
| Stair | 2 | 5'-9" × 9'-8" | 55 sq ft |
| Hall Bath | 2 | 5'-9" × 7'-6" | 43 sq ft |
| Laundry | 2 | 5'-9" × 6'-2" | 35 sq ft |
| Upper Hall | 2 | 3'-7" × 24'-1" | 85 sq ft |
| Bedroom 3 | 2 | 9'-8" × 11'-3" | 109 sq ft |
| Bedroom 2 | 2 | 10'-8" × 10'-4" | 110 sq ft |
| Walk-in Closet | 2 | 4'-6" × 9'-5" | 43 sq ft |
| Primary Bath | 2 | 5'-9" × 9'-5" | 54 sq ft |
| Primary Bedroom | 2 | 10'-8" × 15'-3" | 162 sq ft |
Who this plan suits
This plan suits buyers or builders who want three bedrooms and a main-floor powder room in a compact attached home. It needs a narrow lot at least 22 feet wide and 37'-9" deep, with shared walls on both long sides.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story townhouse 22 ft wide, party walls on both long sides (no windows there), windows only on the front and rear facades: ground floor foyer, powder room, open kitchen with island, dining and living to a rear patio; upstairs primary suite, 2 bedrooms, hall bath, laundry, about 1,500 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
