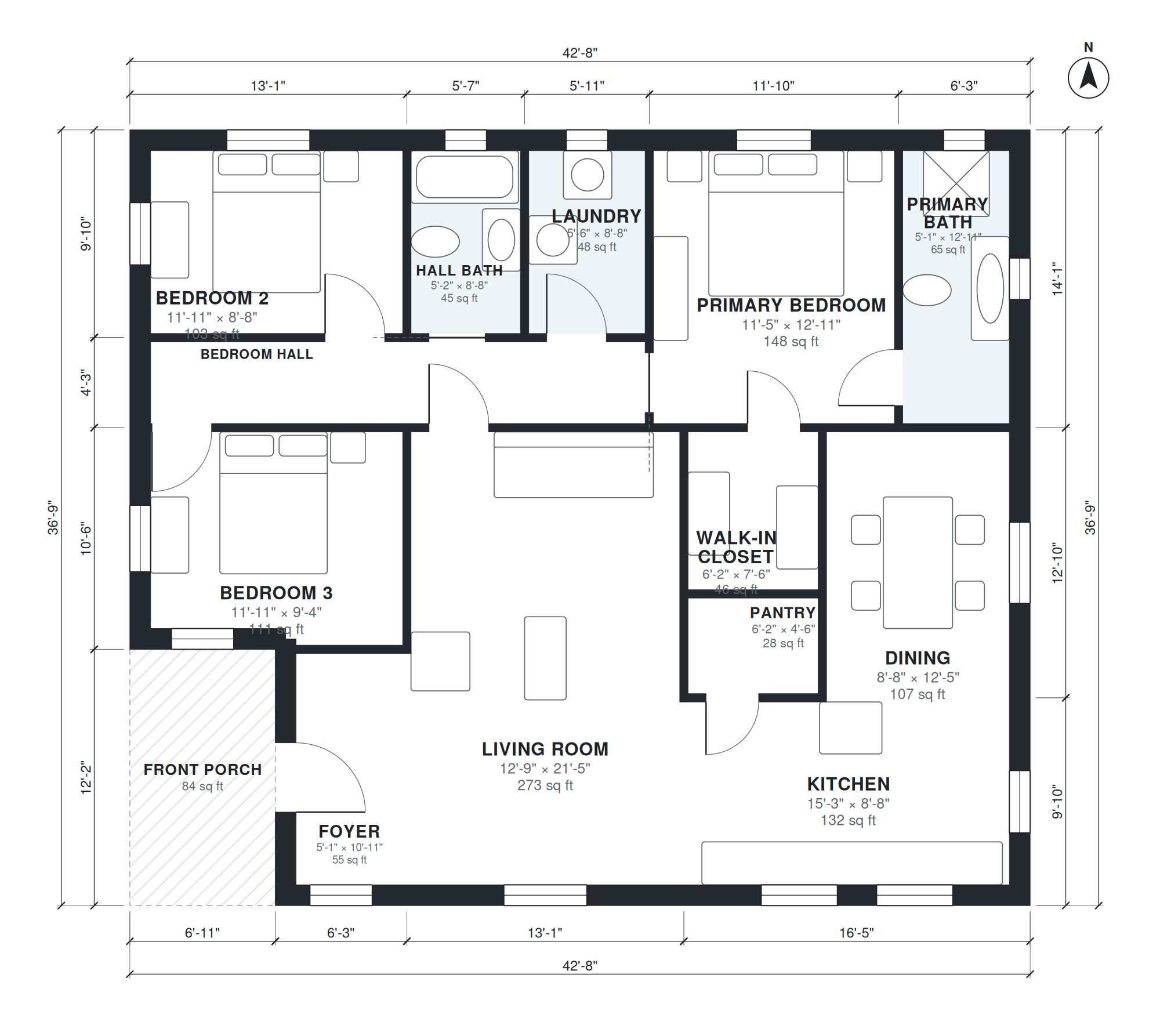

This single-story plan has a 42'-8" × 36'-9" footprint and 1,480 square feet of living space. It has no garage. The front porch leads to a 5'-1" × 10'-11" foyer and then to a 12'-9" × 21'-5" living room. The 15'-3" × 8'-8" kitchen has a 6'-2" × 4'-6" pantry and shares the open main space with an 8'-8" × 12'-5" dining area.
A 23'-5" × 3'-10" bedroom hall separates the sleeping rooms from the living areas. Bedroom 2 (11'-11" × 8'-8") and Bedroom 3 (11'-11" × 9'-4") share the 5'-2" × 8'-8" hall bath. The laundry room is 5'-6" × 8'-8". The primary bedroom is 11'-5" × 12'-11" and comes with a 6'-2" × 7'-6" walk-in closet and a 5'-1" × 12'-11" primary bath.
Layout highlights
- Open living room (12'-9" × 21'-5") runs beside the kitchen and dining area.
- Kitchen at 15'-3" × 8'-8" includes a 6'-2" × 4'-6" pantry.
- Primary suite pairs an 11'-5" × 12'-11" bedroom with a walk-in closet and bath.
- Bedrooms 2 and 3 share a 5'-2" × 8'-8" hall bath off the bedroom hall.
- Separate 5'-6" × 8'-8" laundry and a front porch entry to a 5'-1" × 10'-11" foyer.
Room sizes
| Room | Size | Area |
|---|---|---|
| Foyer | 5'-1" × 10'-11" | 55 sq ft |
| Bedroom 3 | 11'-11" × 9'-4" | 111 sq ft |
| Living Room | 12'-9" × 21'-5" | 273 sq ft |
| Kitchen | 15'-3" × 8'-8" | 132 sq ft |
| Pantry | 6'-2" × 4'-6" | 28 sq ft |
| Walk-in Closet | 6'-2" × 7'-6" | 46 sq ft |
| Dining | 8'-8" × 12'-5" | 107 sq ft |
| Bedroom Hall | 23'-5" × 3'-10" | 91 sq ft |
| Bedroom 2 | 11'-11" × 8'-8" | 103 sq ft |
| Hall Bath | 5'-2" × 8'-8" | 45 sq ft |
| Laundry | 5'-6" × 8'-8" | 48 sq ft |
| Primary Bedroom | 11'-5" × 12'-11" | 148 sq ft |
| Primary Bath | 5'-1" × 12'-11" | 65 sq ft |
Who this plan suits
This plan suits households that want three bedrooms and two baths on one level without a garage. It needs a lot that can hold a 42'-8" × 36'-9" footprint plus setbacks, and the simple rectangular shape suits narrow and level sites.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story simple rectangular house, 3 bedrooms, 2 baths, open kitchen and living, laundry, front porch, about 1,500 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are rectangular house plans?
Rectangular house plans use a simple footprint with straight exterior walls and few corners. This one measures 42'-8" × 36'-9" and holds 1,480 sq ft of living space on a single level. The simple shape keeps the roof and framing straightforward.
What affects the lot and building cost of this plan?
The main drivers are the 42'-8" × 36'-9" footprint, local setbacks, soil and foundation type, and your choice of finishes. The plan has no garage, so a lot with room for parking or a separate garage may matter. Local contractors can price the plan once you have confirmed the site.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing or moving rooms, adding a garage on a chosen side, or fitting a narrower or wider lot. The layout is then updated and you can review it before downloading.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing and printing the plan. The DXF opens in CAD software for drafting and measuring, and the IFC imports into BIM tools. Have a local architect or engineer check the plan against your site and building code before construction.
