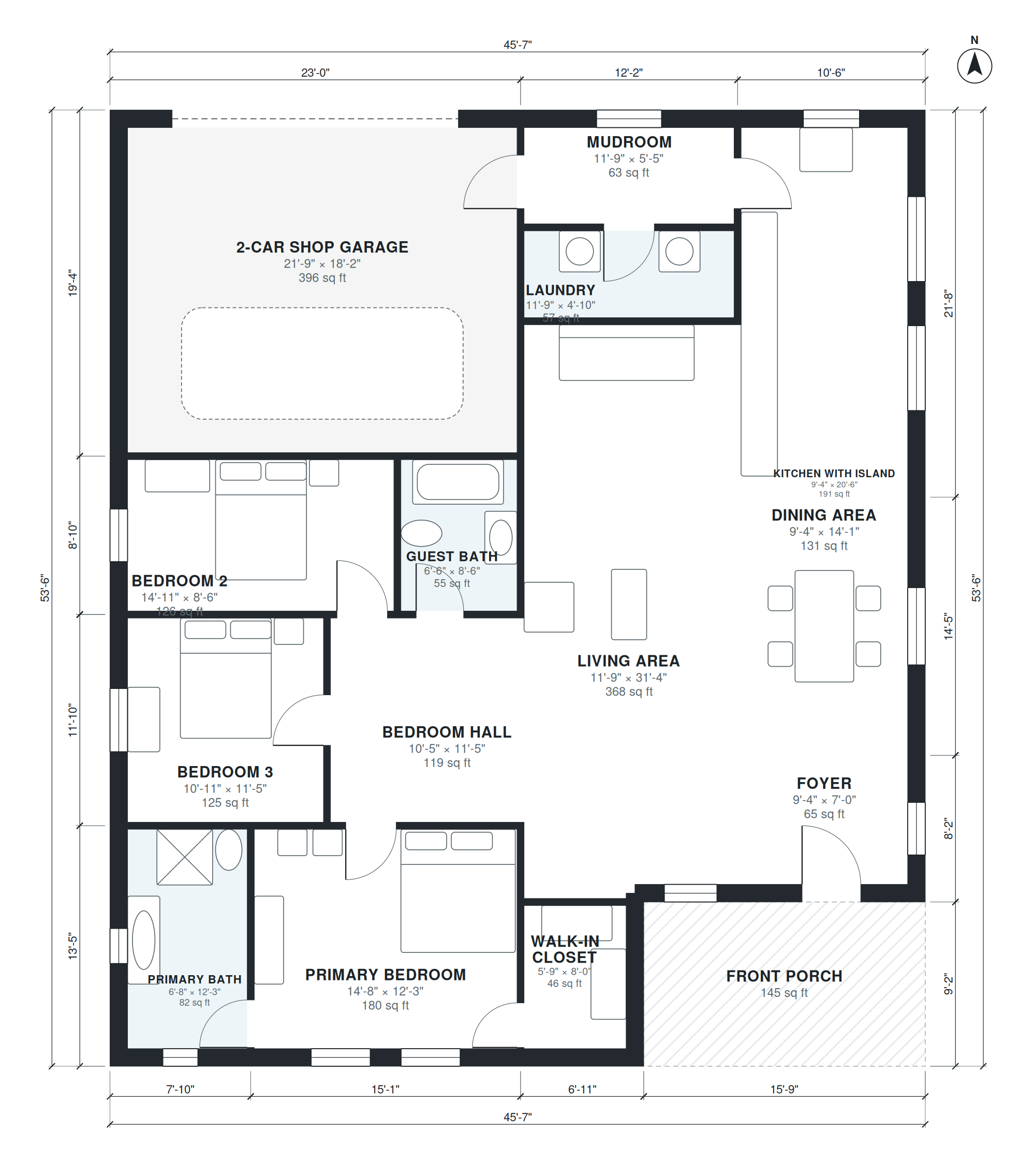

This single-level plan holds 1,850 square feet of living space, not counting the garage, within a 45'-7" × 53'-6" footprint. The front porch opens to a 9'-4" × 7'-0" foyer. Beyond it the main living zone runs as one continuous space: a 9'-4" × 20'-6" kitchen with island, a 9'-4" × 14'-1" dining area, and an 11'-9" × 31'-4" living area.
The 2-car shop garage, 21'-9" × 18'-2", connects to the house through an 11'-9" × 5'-5" mudroom, with an 11'-9" × 4'-10" laundry nearby. The bedrooms sit apart from the great room. The primary bedroom, 14'-8" × 12'-3", has a 5'-9" × 8'-0" walk-in closet and a 6'-8" × 12'-3" bath. Bedroom 2 (14'-11" × 8'-6") and Bedroom 3 (10'-11" × 11'-5") share a 6'-6" × 8'-6" guest bath off the bedroom hall.
Layout highlights
- Kitchen with island measures 9'-4" × 20'-6" and flows into the dining and living areas.
- Living area is 11'-9" × 31'-4", with a 9'-4" × 14'-1" dining area beside it.
- Mudroom (11'-9" × 5'-5") links the 2-car shop garage to the living space.
- Primary suite combines a 14'-8" × 12'-3" bedroom, 5'-9" × 8'-0" walk-in closet and 6'-8" × 12'-3" bath.
- Bedrooms 2 and 3 share a 6'-6" × 8'-6" bath, grouped away from the great room.
Room sizes
| Room | Size | Area |
|---|---|---|
| Primary Bath | 6'-8" × 12'-3" | 82 sq ft |
| Primary Bedroom | 14'-8" × 12'-3" | 180 sq ft |
| Bedroom 3 | 10'-11" × 11'-5" | 125 sq ft |
| Bedroom Hall | 10'-5" × 11'-5" | 119 sq ft |
| Bedroom 2 | 14'-11" × 8'-6" | 126 sq ft |
| Guest Bath | 6'-6" × 8'-6" | 55 sq ft |
| 2-Car Shop Garage | 21'-9" × 18'-2" | 396 sq ft |
| Walk-in Closet | 5'-9" × 8'-0" | 46 sq ft |
| Living Area | 11'-9" × 31'-4" | 368 sq ft |
| Laundry | 11'-9" × 4'-10" | 57 sq ft |
| Mudroom | 11'-9" × 5'-5" | 63 sq ft |
| Foyer | 9'-4" × 7'-0" | 65 sq ft |
| Dining Area | 9'-4" × 14'-1" | 131 sq ft |
| Kitchen with Island | 9'-4" × 20'-6" | 191 sq ft |
Who this plan suits
This plan suits households that want a large shared living space, a workshop-ready garage and three bedrooms on one level. It needs a lot that fits a 45'-7" × 53'-6" footprint plus driveway access to the garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Open-concept barndominium: one large great room with kitchen island, dining and living, 3 bedrooms, 2 baths, laundry, mudroom, 2-car shop garage, porch, about 2,000 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are open concept barndominium floor plans?
They place the kitchen, dining and living areas in one connected space instead of separate rooms, usually under a simple gabled roof. In this plan the kitchen, dining and living areas run together across the main part of the house, while the bedrooms are kept in their own group.
What affects the cost of building this plan?
The main drivers are the 45'-7" × 53'-6" footprint, the size of the 2-car shop garage, the long open roof spans over the great room, and your local labor and material rates. Site work, foundation type and finish level also change the total, so get local builder quotes.
Can I change this plan by chat?
Yes. You can ask for changes in plain language, such as resizing or moving rooms, switching the garage to the other side, or fitting the plan to a narrower lot. The layout is regenerated so the rooms still connect.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing and sharing the plan with a builder or designer. The DXF opens in CAD software for drafting and edits, and the IFC imports into BIM tools. Local permitting usually still requires review by a licensed professional.
