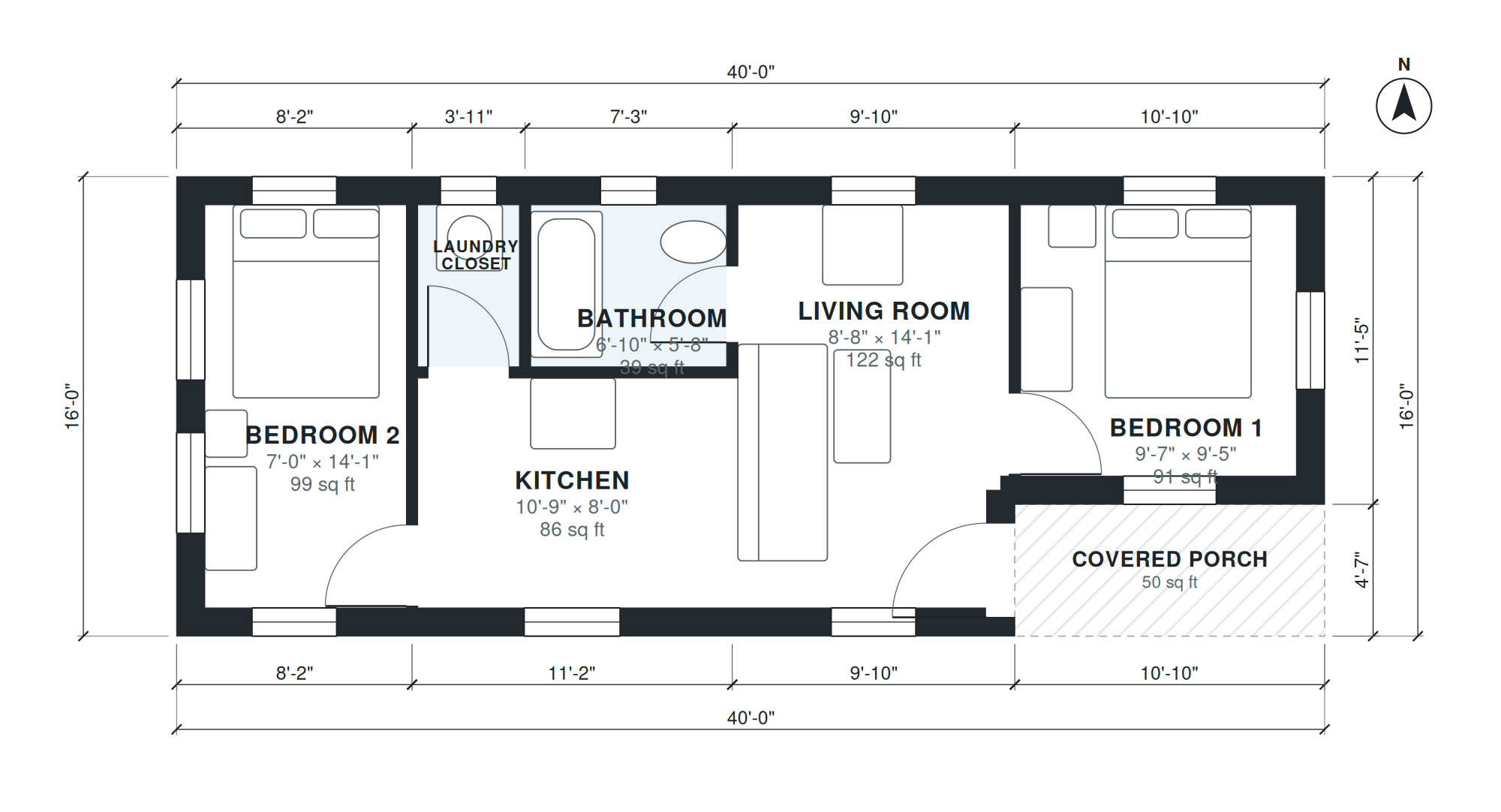

This 16x40 tiny house plan puts a single level on a 40'-0" × 16'-0" footprint. It has 590 sq ft of living space and a covered porch outside. The two bedrooms sit at opposite ends of the house, which keeps the sleeping areas apart. Bedroom 1 measures 9'-7" × 9'-5". Bedroom 2 measures 7'-0" × 14'-1".
Between the bedrooms, the kitchen (10'-9" × 8'-0") and the living room (8'-8" × 14'-1") share one open middle zone. Cooking, sitting and walking through the house use the same floor area, so no space goes to hallways. The bathroom (6'-10" × 5'-8") and the laundry closet (3'-7" × 5'-8") are compact service rooms that take up little of the plan. Living area excludes the porch.
Layout highlights
- Two bedrooms at opposite ends: Bedroom 1 at 9'-7" × 9'-5", Bedroom 2 at 7'-0" × 14'-1".
- Open kitchen at 10'-9" × 8'-0" shares the middle of the house with the living room.
- Living room measures 8'-8" × 14'-1", wide enough for a sofa and a small dining table.
- Full bathroom at 6'-10" × 5'-8" and a separate 3'-7" × 5'-8" laundry closet.
- Single level, 590 sq ft of living space, plus a covered porch on a 40'-0" × 16'-0" footprint.
Room sizes
| Room | Size | Area |
|---|---|---|
| Bedroom 2 | 7'-0" × 14'-1" | 99 sq ft |
| Kitchen | 10'-9" × 8'-0" | 86 sq ft |
| Laundry Closet | 3'-7" × 5'-8" | 20 sq ft |
| Bathroom | 6'-10" × 5'-8" | 39 sq ft |
| Living Room | 8'-8" × 14'-1" | 122 sq ft |
| Bedroom 1 | 9'-7" × 9'-5" | 91 sq ft |
Who this plan suits
This plan suits individuals, couples or small households who want two bedrooms in a compact single-level home, such as a guest house, rental unit or primary residence. It needs a lot that can take a long, narrow 40'-0" × 16'-0" footprint, with room for the covered porch.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Tiny house on a 16 x 40 ft footprint (640 sq ft): 2 small bedrooms at each end, 1 bath, open kitchen and living in the middle, laundry closet, covered porch.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
