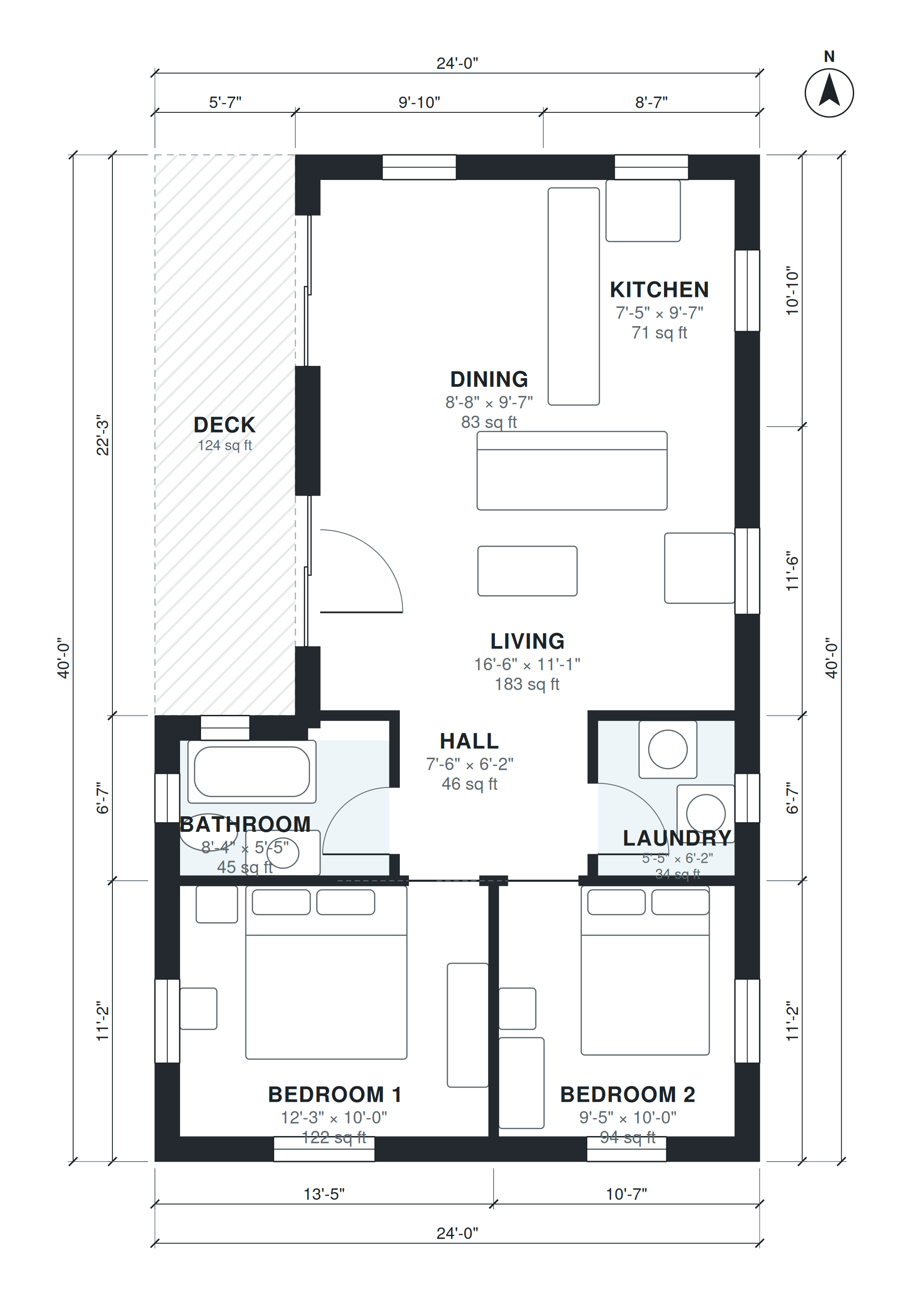

This plan puts 840 square feet of living space on one level within a 24'-0" × 40'-0" footprint, the width of three 40 ft containers set side by side. It has two bedrooms, one bathroom, a laundry room and an open kitchen, dining and living area, with a deck outside.
The living room is the largest space at 16'-6" × 11'-1". The dining area (8'-8" × 9'-7") and the kitchen (7'-5" × 9'-7") share the same 9'-7" depth, so cooking, eating and sitting work as one open zone. A 7'-6" × 6'-2" hall leads to the private rooms. Bedroom 1 measures 12'-3" × 10'-0" and Bedroom 2 measures 9'-5" × 10'-0". The bathroom (8'-4" × 5'-5") and the laundry (5'-5" × 6'-2") are compact service rooms, which keeps plumbing runs short.
Layout highlights
- Living room of 16'-6" × 11'-1" anchors the open plan.
- Dining (8'-8" × 9'-7") and kitchen (7'-5" × 9'-7") share one depth.
- Bedroom 1 is 12'-3" × 10'-0"; Bedroom 2 is 9'-5" × 10'-0".
- Bathroom of 8'-4" × 5'-5" and laundry of 5'-5" × 6'-2" are compact.
- A 7'-6" × 6'-2" hall links the rooms within a 24'-0" × 40'-0" footprint.
Room sizes
| Room | Size | Area |
|---|---|---|
| Bedroom 1 | 12'-3" × 10'-0" | 122 sq ft |
| Bedroom 2 | 9'-5" × 10'-0" | 94 sq ft |
| Bathroom | 8'-4" × 5'-5" | 45 sq ft |
| Hall | 7'-6" × 6'-2" | 46 sq ft |
| Laundry | 5'-5" × 6'-2" | 34 sq ft |
| Living | 16'-6" × 11'-1" | 183 sq ft |
| Dining | 8'-8" × 9'-7" | 83 sq ft |
| Kitchen | 7'-5" × 9'-7" | 71 sq ft |
Who this plan suits
This plan suits a couple, a small family or a guest cabin that needs two bedrooms and one bathroom in 840 square feet. It needs a level lot at least 24 ft wide and 40 ft deep, plus space for the deck and room for crane or delivery access.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Container home made of three 40 ft containers side by side (24 x 40 ft, 960 sq ft): 2 bedrooms, 1 bath, open kitchen, dining and living, laundry, deck.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 2 bedroom container home plans?
They are floor plans for a home built from steel shipping containers, arranged to give two bedrooms. This version uses three 40 ft containers side by side, which gives a 24'-0" × 40'-0" footprint and 840 square feet of living space on one level.
What affects the cost and lot needs of this plan?
The main drivers are site preparation and foundation, container delivery and crane access, insulation, and the kitchen and bath fit-out. The lot should be level and at least 24 ft wide by 40 ft deep, with room for the deck. Local codes and utility connections also vary by site.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing a bedroom, moving the laundry, adding a garage on a chosen side, or fitting a narrower or wider lot. The plan is regenerated with updated room sizes and a new footprint.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the layout and sharing it with others. The DXF opens in CAD software for drafting and detailing, and the IFC imports into BIM tools for coordination. Your engineer or local authority will need to review the plan before construction.
