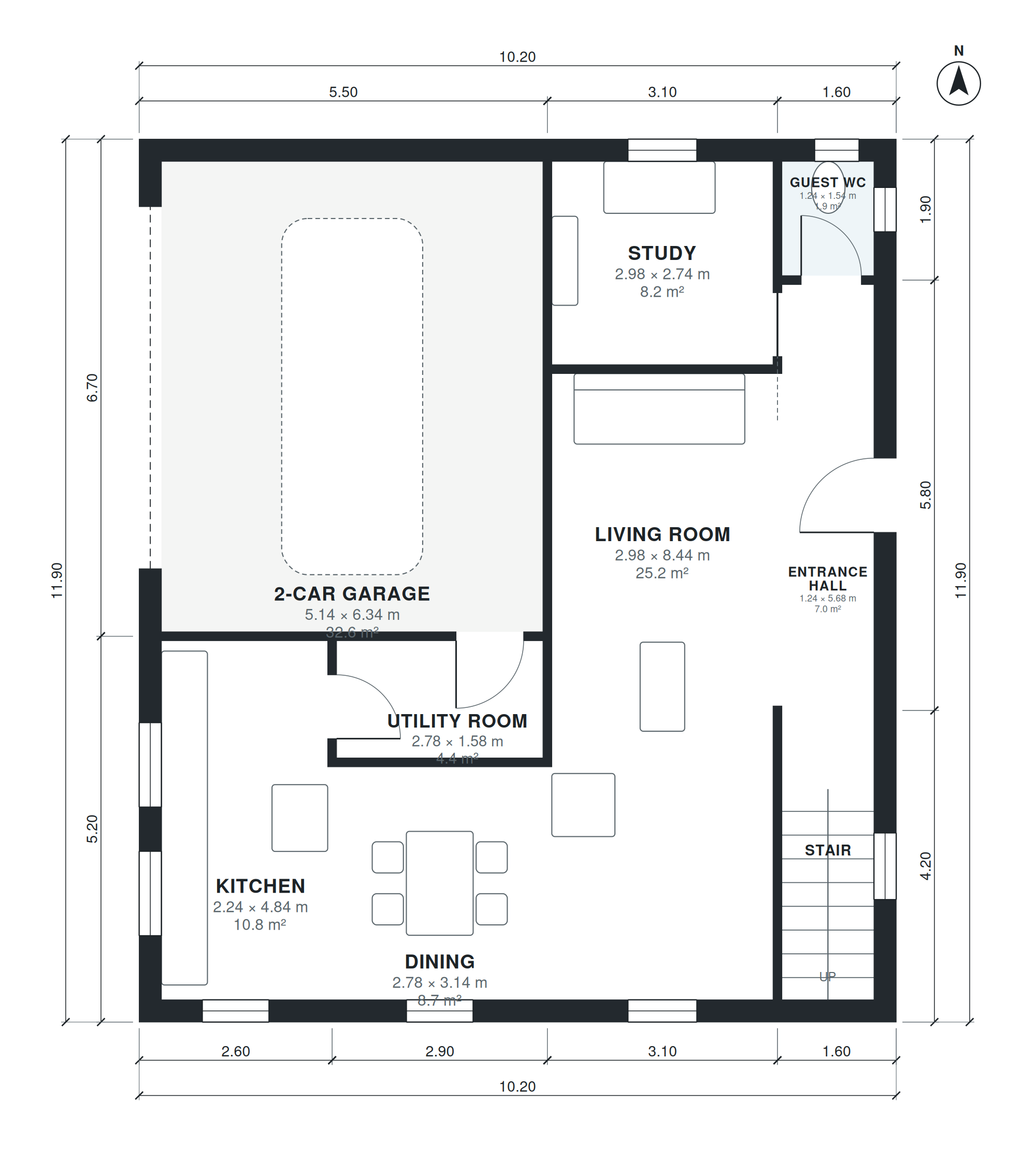

This two storey villa plan has 1,830 sq ft of living space, garage excluded, on a square 33'-6" × 39'-1" footprint under a hip roof. The entrance hall (4'-1" × 18'-8") runs beside the stair (4'-1" × 12'-7"). The living room (9'-9" × 27'-8") is the longest room on the plan, with the dining room (9'-1" × 10'-4") and kitchen (7'-4" × 15'-11") alongside it.
The study (9'-9" × 9'-0"), guest WC (4'-1" × 5'-1") and utility room (9'-1" × 5'-2") complete the ground floor, next to the attached 2-car garage (16'-10" × 20'-10"). Upstairs, the stair lands on an upper hall (31'-6" × 3'-3") that reaches all four bedrooms and the bathroom (6'-4" × 9'-0"). The primary bedroom (11'-11" × 12'-7") has an ensuite (5'-2" × 12'-7"). There is no basement.
Layout highlights
- Living room of 9'-9" × 27'-8" is the longest space on the ground floor.
- Kitchen (7'-4" × 15'-11") and dining room (9'-1" × 10'-4") sit together.
- Study at 9'-9" × 9'-0" and guest WC at 4'-1" × 5'-1" are on the entry level.
- Primary bedroom of 11'-11" × 12'-7" has a 5'-2" × 12'-7" ensuite.
- Attached 2-car garage of 16'-10" × 20'-10" is not counted in the 1,830 sq ft.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Kitchen | 1 | 7'-4" × 15'-11" | 117 sq ft |
| Dining | 1 | 9'-1" × 10'-4" | 94 sq ft |
| Utility Room | 1 | 9'-1" × 5'-2" | 47 sq ft |
| 2-Car Garage | 1 | 16'-10" × 20'-10" | 351 sq ft |
| Living Room | 1 | 9'-9" × 27'-8" | 271 sq ft |
| Study | 1 | 9'-9" × 9'-0" | 88 sq ft |
| Stair | 1 | 4'-1" × 12'-7" | 51 sq ft |
| Entrance Hall | 1 | 4'-1" × 18'-8" | 76 sq ft |
| Guest WC | 1 | 4'-1" × 5'-1" | 21 sq ft |
| Stair | 2 | 4'-1" × 12'-7" | 51 sq ft |
| Upper Hall | 2 | 31'-6" × 3'-3" | 101 sq ft |
| Bedroom 3 | 2 | 11'-11" × 9'-0" | 107 sq ft |
| Bedroom 2 | 2 | 12'-5" × 9'-0" | 111 sq ft |
| Bathroom | 2 | 6'-4" × 9'-0" | 57 sq ft |
| Primary Bedroom | 2 | 11'-11" × 12'-7" | 150 sq ft |
| Ensuite | 2 | 5'-2" × 12'-7" | 65 sq ft |
| Bedroom 4 | 2 | 9'-1" × 12'-7" | 115 sq ft |
Who this plan suits
This plan suits families who want four bedrooms together upstairs and a study and guest WC on the entry level. It needs a lot that fits the 33'-6" × 39'-1" footprint plus the setbacks your local rules require.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 4 bedrooms, 3 baths, square two-story villa with a hip roof, ground floor hall with stair, open kitchen, dining, living, study, guest WC, utility room; upstairs 4 bedrooms, bath and ensuite, attached 2-car garage, about 170 m² (1,830 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are two storey villa plans?
Two storey villa plans stack living space on two levels within a compact, often square footprint. This one puts the entrance, kitchen, dining, living room and study on the ground floor, and all four bedrooms upstairs under a hip roof.
What affects the cost and lot requirements of this plan?
The 33'-6" × 39'-1" footprint sets the minimum lot size, and the hip roof, two levels and attached garage drive much of the structure. Local setbacks, soil and finishes change the final cost, so get a local estimate. The plan has no basement, which keeps excavation simple.
Can I change this plan by chat?
Yes. You can ask to resize rooms, move the garage to the other side, or adjust the layout for a narrower or wider lot. The plan is regenerated with the new dimensions, and you can review it before downloading.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and printing. The DXF opens in CAD software for drafting and detailing, and the IFC loads into BIM tools for coordination. A local architect or engineer should check the plan against your site and building code before construction.
