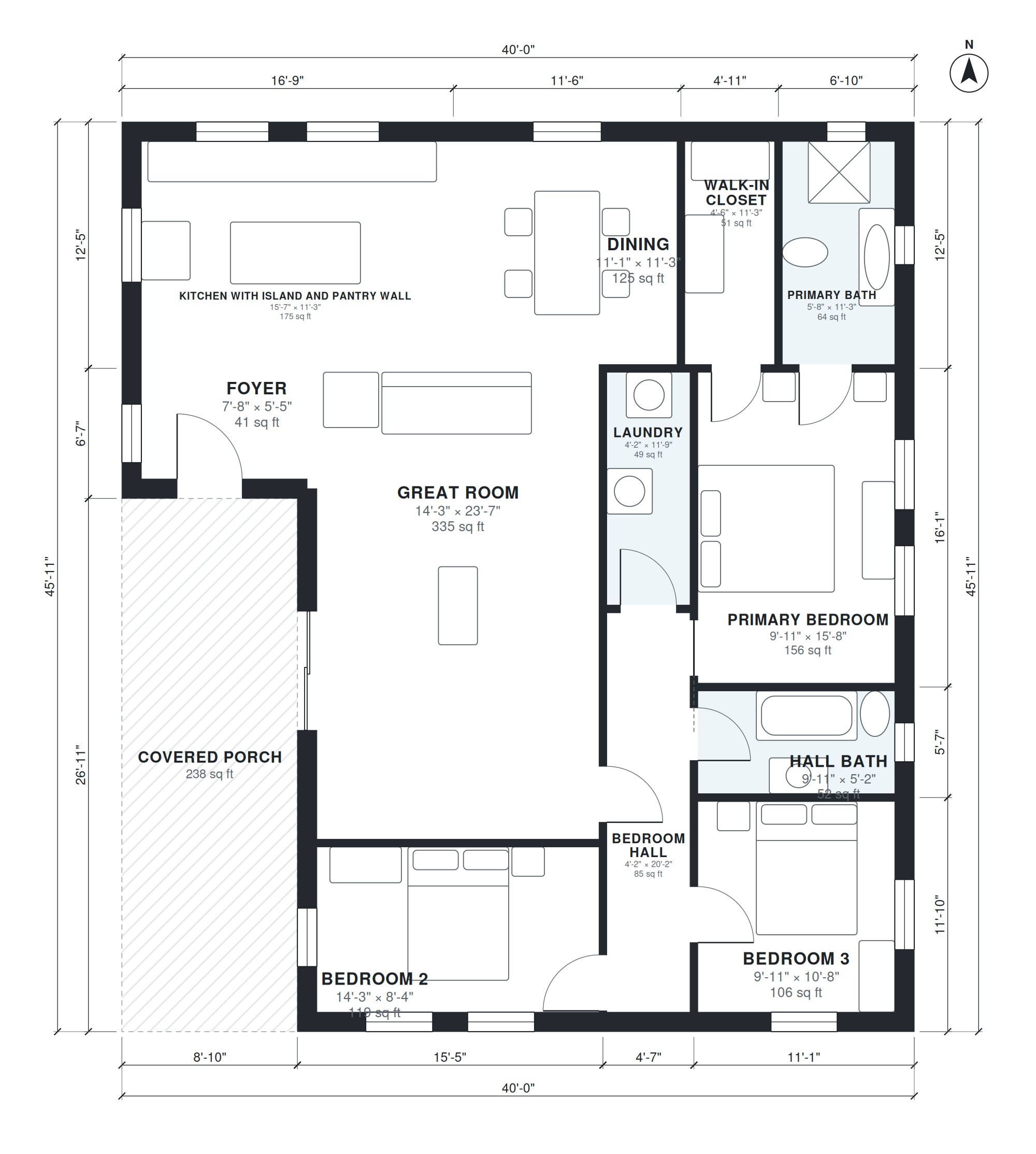

This one-story barndominium plan offers 1,600 sq ft of living space on a footprint of 40'-0" × 45'-11", with a covered porch outside the main rectangle. The foyer (7'-8" × 5'-5") opens to the great room, which measures 14'-3" × 23'-7". The kitchen (15'-7" × 11'-3"), with its island and pantry wall, and the dining area (11'-1" × 11'-3") sit beside it, so cooking, eating and sitting share one open space.
A 4'-2" × 20'-2" bedroom hall separates the sleeping areas from the living space and serves Bedroom 2 (14'-3" × 8'-4"), Bedroom 3 (9'-11" × 10'-8"), the hall bath (9'-11" × 5'-2") and the laundry (4'-2" × 11'-9"). The primary bedroom (9'-11" × 15'-8") has a 4'-6" × 11'-3" walk-in closet and a 5'-8" × 11'-3" primary bath.
Layout highlights
- Great room of 14'-3" × 23'-7" anchors the plan and holds the main seating area.
- Kitchen of 15'-7" × 11'-3" has an island and a pantry wall.
- Dining room of 11'-1" × 11'-3" sits next to the kitchen.
- Primary suite combines a 9'-11" × 15'-8" bedroom, 4'-6" × 11'-3" closet and 5'-8" × 11'-3" bath.
- Laundry of 4'-2" × 11'-9" and a 5'-2" deep hall bath serve the two secondary bedrooms.
Room sizes
| Room | Size | Area |
|---|---|---|
| Foyer | 7'-8" × 5'-5" | 41 sq ft |
| Bedroom 2 | 14'-3" × 8'-4" | 119 sq ft |
| Great Room | 14'-3" × 23'-7" | 335 sq ft |
| Bedroom Hall | 4'-2" × 20'-2" | 85 sq ft |
| Laundry | 4'-2" × 11'-9" | 49 sq ft |
| Bedroom 3 | 9'-11" × 10'-8" | 106 sq ft |
| Hall Bath | 9'-11" × 5'-2" | 52 sq ft |
| Primary Bedroom | 9'-11" × 15'-8" | 156 sq ft |
| Kitchen with Island and Pantry Wall | 15'-7" × 11'-3" | 175 sq ft |
| Dining | 11'-1" × 11'-3" | 125 sq ft |
| Walk-in Closet | 4'-6" × 11'-3" | 51 sq ft |
| Primary Bath | 5'-8" × 11'-3" | 64 sq ft |
Who this plan suits
This plan suits households that want a single-level barndominium with three bedrooms, two baths and a defined open living area. It needs a lot that fits the 40'-0" × 45'-11" footprint plus the setbacks required locally.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Barndominium on a 40 x 40 ft rectangular footprint, one story: 3 bedrooms, 2 baths, open great room with kitchen island and dining, laundry, covered porch outside the rectangle, about 1,600 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
