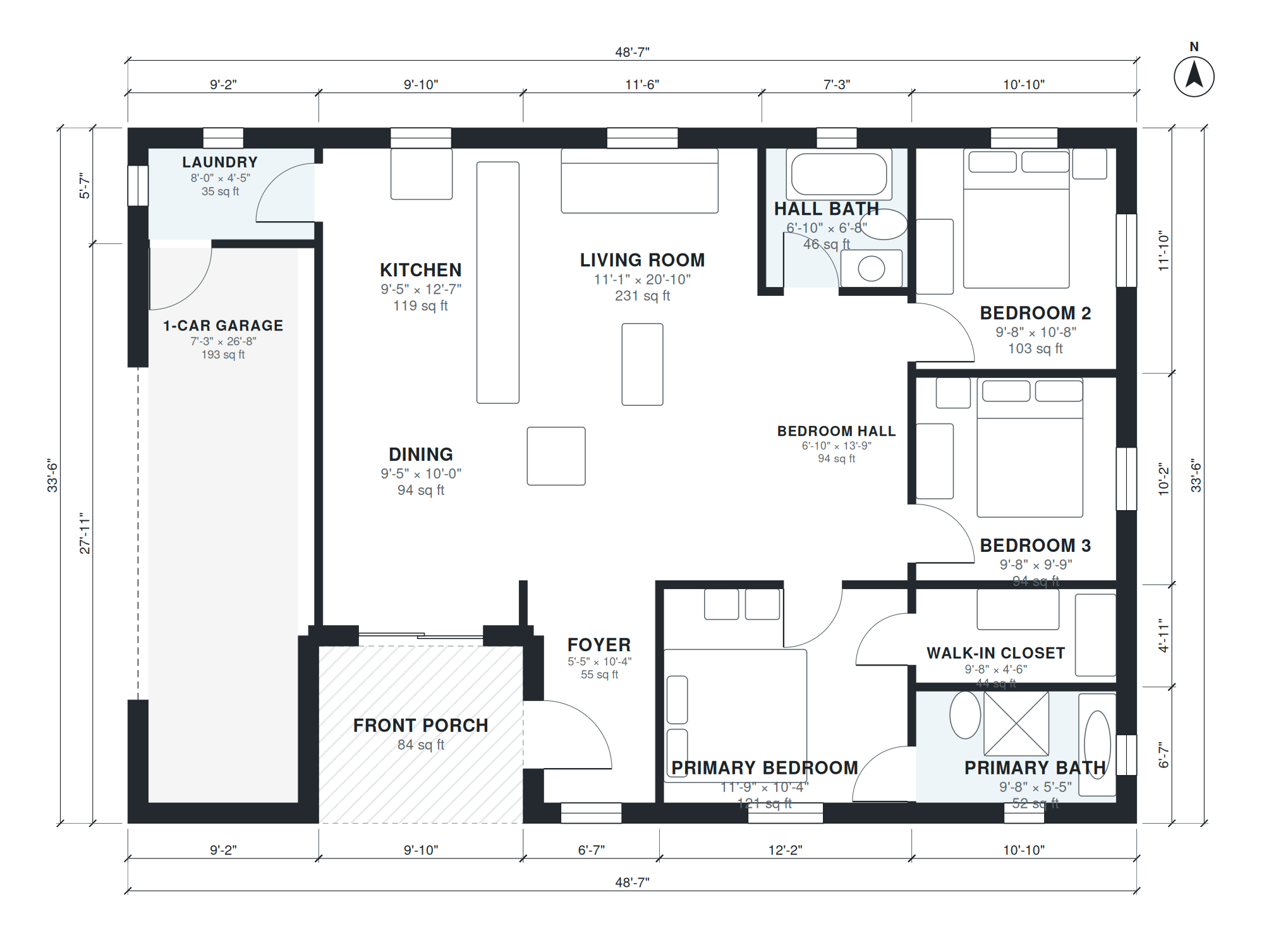

This single-story plan fits 1,280 square feet of living space, garage not included, into a 48'-7" × 33'-6" footprint. A front porch leads to a 5'-5" × 10'-4" foyer and the 11'-1" × 20'-10" living room. The kitchen (9'-5" × 12'-7") and dining room (9'-5" × 10'-0") sit beside the living room, so cooking, eating and sitting share one main living area.
The primary suite includes an 11'-9" × 10'-4" bedroom, a 9'-8" × 5'-5" bath and a 9'-8" × 4'-6" walk-in closet. Bedroom 2 (9'-8" × 10'-8") and Bedroom 3 (9'-8" × 9'-9") are reached from a 6'-10" × 13'-9" bedroom hall, which also serves the 6'-10" × 6'-8" hall bath. An 8'-0" × 4'-5" laundry and a 7'-3" × 26'-8" attached garage complete the plan.
Layout highlights
- Living room measures 11'-1" × 20'-10" and anchors the main living area.
- Kitchen at 9'-5" × 12'-7" sits next to a 9'-5" × 10'-0" dining room.
- Primary suite pairs an 11'-9" × 10'-4" bedroom with a 9'-8" × 4'-6" walk-in closet.
- Bedrooms 2 and 3 share a 6'-10" × 6'-8" hall bath off the bedroom hall.
- Attached garage is 7'-3" × 26'-8", with an 8'-0" × 4'-5" laundry nearby.
Room sizes
| Room | Size | Area |
|---|---|---|
| 1-Car Garage | 7'-3" × 26'-8" | 193 sq ft |
| Laundry | 8'-0" × 4'-5" | 35 sq ft |
| Dining | 9'-5" × 10'-0" | 94 sq ft |
| Kitchen | 9'-5" × 12'-7" | 119 sq ft |
| Foyer | 5'-5" × 10'-4" | 55 sq ft |
| Primary Bedroom | 11'-9" × 10'-4" | 121 sq ft |
| Primary Bath | 9'-8" × 5'-5" | 52 sq ft |
| Walk-in Closet | 9'-8" × 4'-6" | 44 sq ft |
| Living Room | 11'-1" × 20'-10" | 231 sq ft |
| Bedroom Hall | 6'-10" × 13'-9" | 94 sq ft |
| Hall Bath | 6'-10" × 6'-8" | 46 sq ft |
| Bedroom 3 | 9'-8" × 9'-9" | 94 sq ft |
| Bedroom 2 | 9'-8" × 10'-8" | 103 sq ft |
Who this plan suits
This plan suits small households, first-time builders and downsizers who want 3 bedrooms and 2 baths on one level without stairs. It needs a lot that can take a 48'-7" × 33'-6" footprint plus setbacks and a driveway to the garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story ranch house, 3 bedrooms, 2 baths, open kitchen and living, dining, laundry, attached 1-car garage, front porch, about 1,300 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are small ranch house plans?
Small ranch house plans describe single-story homes with a simple, low footprint and living spaces on one level. This one has 1,280 sq ft of living space, 3 bedrooms and 2 baths, with a front porch and an attached 1-car garage.
What affects the lot and building cost for this plan?
The 48'-7" × 33'-6" footprint sets the minimum lot width and depth once setbacks are added. Foundation type, soil, local codes, finishes and the garage and porch all influence cost, so get local quotes before you build.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing rooms, moving the garage to the other side or fitting a narrower lot. The plan is then regenerated to reflect your request.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the layout and sharing it with builders or lenders. The DXF opens in CAD software for drafting and edits, and the IFC imports into BIM tools for coordination. Have a local professional check the plan against your codes before construction.
