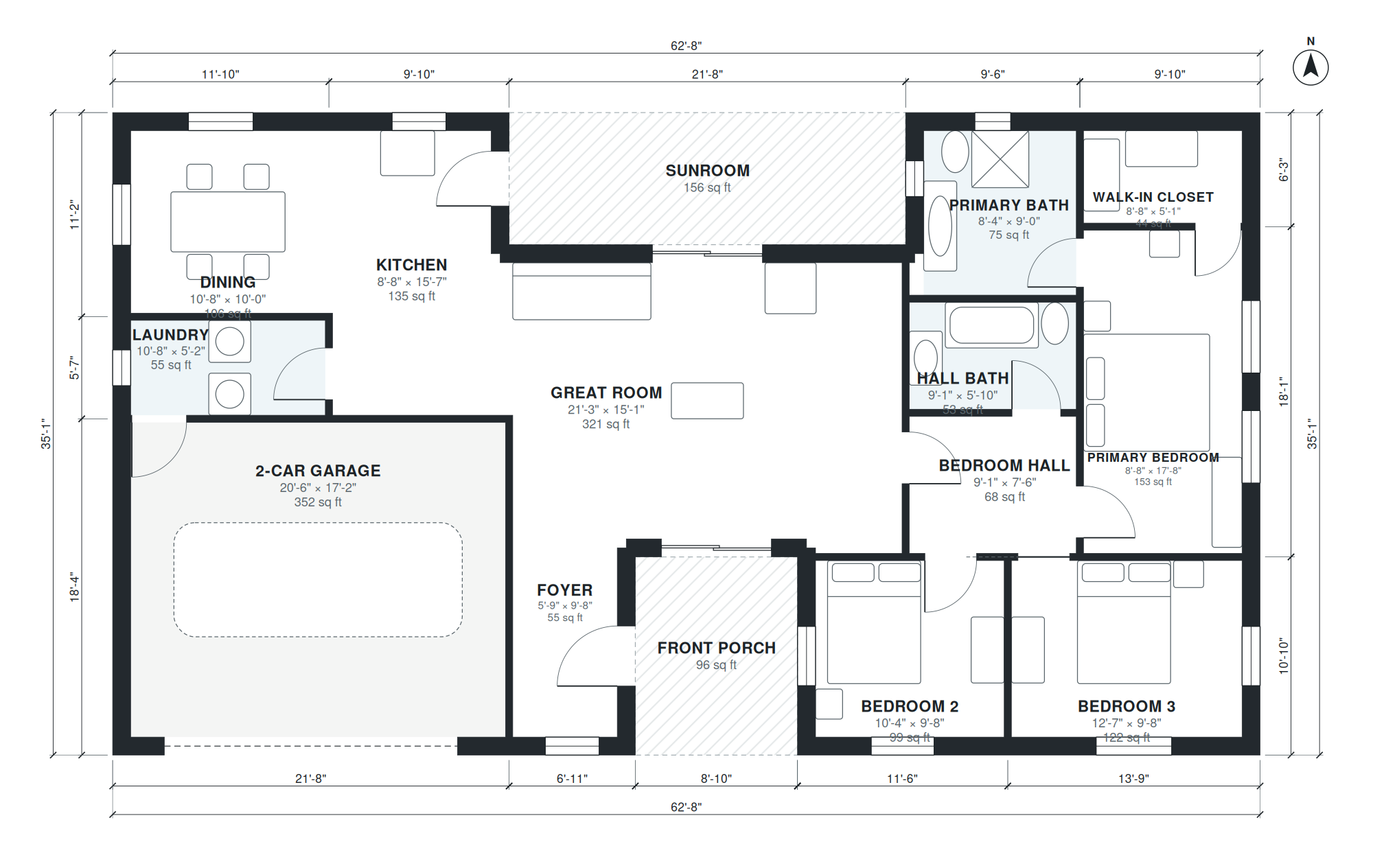

This single-story plan fits 1,550 square feet of living space, garage excluded, into a 62'-8" × 35'-1" footprint. A front porch leads into a 5'-9" × 9'-8" foyer, which opens to the 21'-3" × 15'-1" great room. The 8'-8" × 15'-7" kitchen sits beside the great room, with a 10'-8" × 10'-0" dining room next to it. The sunroom connects to both the kitchen and the great room, so it can be reached from either.
Bedrooms 2 and 3 measure 10'-4" × 9'-8" and 12'-7" × 9'-8". They share a 9'-1" × 5'-10" hall bath, reached from a 9'-1" × 7'-6" bedroom hall. The primary suite has a 8'-8" × 17'-8" bedroom, an 8'-8" × 5'-1" walk-in closet and an 8'-4" × 9'-0" bath. The laundry is 10'-8" × 5'-2", and the attached two-car garage is 20'-6" × 17'-2".
Layout highlights
- Great room at 21'-3" × 15'-1" opens to the kitchen and the sunroom.
- Kitchen measures 8'-8" × 15'-7", with a 10'-8" × 10'-0" dining room beside it.
- Primary suite combines a 8'-8" × 17'-8" bedroom, walk-in closet and 8'-4" × 9'-0" bath.
- Bedrooms 2 and 3 share a 9'-1" × 5'-10" hall bath off a bedroom hall.
- Attached two-car garage is 20'-6" × 17'-2"; laundry is 10'-8" × 5'-2".
Room sizes
| Room | Size | Area |
|---|---|---|
| 2-Car Garage | 20'-6" × 17'-2" | 352 sq ft |
| Laundry | 10'-8" × 5'-2" | 55 sq ft |
| Dining | 10'-8" × 10'-0" | 106 sq ft |
| Kitchen | 8'-8" × 15'-7" | 135 sq ft |
| Foyer | 5'-9" × 9'-8" | 55 sq ft |
| Bedroom 2 | 10'-4" × 9'-8" | 99 sq ft |
| Bedroom 3 | 12'-7" × 9'-8" | 122 sq ft |
| Great Room | 21'-3" × 15'-1" | 321 sq ft |
| Bedroom Hall | 9'-1" × 7'-6" | 68 sq ft |
| Hall Bath | 9'-1" × 5'-10" | 53 sq ft |
| Primary Bath | 8'-4" × 9'-0" | 75 sq ft |
| Primary Bedroom | 8'-8" × 17'-8" | 153 sq ft |
| Walk-in Closet | 8'-8" × 5'-1" | 44 sq ft |
Who this plan suits
This plan suits households that want one-level living with three bedrooms and a bright sunroom connected to the main living areas. It needs a lot wide enough for the 62'-8" × 35'-1" footprint plus setbacks.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 3 bedrooms, 2 baths, sunroom off the kitchen and great room, dining, laundry, attached 2-car garage, front porch, about 1,900 sq ft of living space (garage not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are house plans with sunroom?
They are home designs that include a glazed room, usually attached to the kitchen or living area, for daylight and views. In this plan the sunroom connects to both the kitchen and the great room, so it works as an extension of the main living space.
What affects the cost and lot requirements of this plan?
The 62'-8" × 35'-1" footprint sets the minimum lot width and depth, and the single story spreads the foundation and roof over a larger area. The glazed sunroom, the 1,550 sq ft of living space and the two-car garage also influence cost, which varies by region and builder.
Can I change this plan by chat?
Yes. You can describe changes in chat, such as resizing rooms, moving the garage to the other side or fitting a narrower lot. The layout is then updated and the room sizes are recalculated.
How do I use the PDF, DXF and IFC files?
The PDF is for reading and sharing the plan with a builder or permit office. The DXF opens in CAD software for drafting and editing, and the IFC imports into BIM tools for model-based work. Have a local professional check the plan against your site and code requirements.
