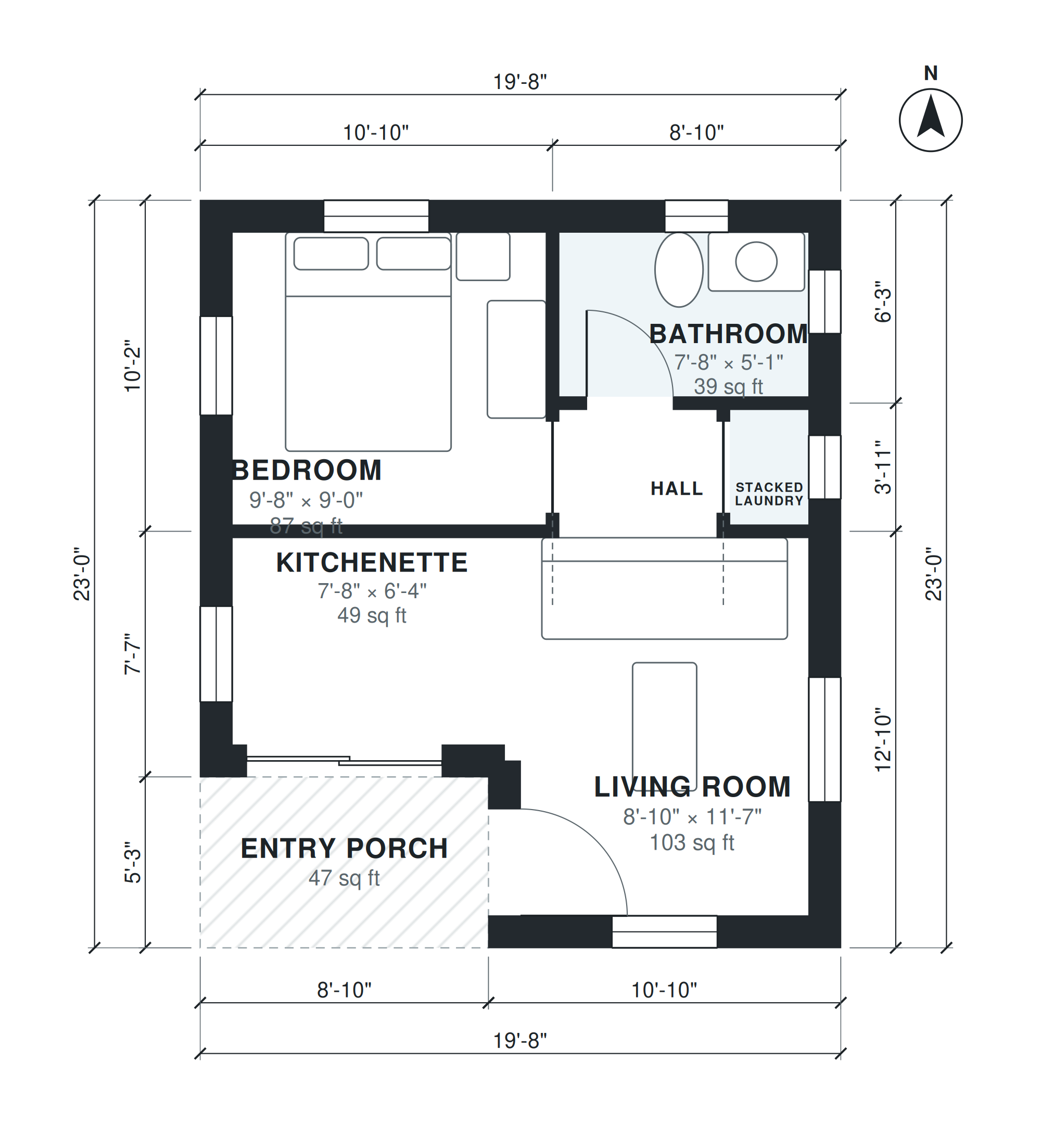

This 400 sq ft ADU plan is a single-level detached backyard unit with 410 sq ft of living space, one bedroom and one bathroom. The footprint measures 19'-8" × 23'-0", compact enough for many rear yards. An entry porch leads into the 8'-10" × 11'-7" living room, which anchors the plan. There is no garage and no second level, which keeps the structure simple.
The 7'-8" × 6'-4" kitchenette sits alongside the living room, so cooking and seating share one open zone. A 4'-10" × 3'-7" hall leads to the 9'-8" × 9'-0" bedroom, which is separated by a wall so the sleeping area stays private. The 7'-8" × 5'-1" bathroom and a 2'-5" × 3'-7" stacked laundry complete the plan.
Layout highlights
- 410 sq ft of living space on one level, with no stairs
- Compact 19'-8" × 23'-0" footprint for a detached backyard unit
- Living room of 8'-10" × 11'-7" opens to the kitchenette
- Bedroom of 9'-8" × 9'-0" is separated from the living area by a wall
- Stacked laundry in 2'-5" × 3'-7" beside a 7'-8" × 5'-1" bathroom
Room sizes
| Room | Size | Area |
|---|---|---|
| Kitchenette | 7'-8" × 6'-4" | 49 sq ft |
| Living Room | 8'-10" × 11'-7" | 103 sq ft |
| Bedroom | 9'-8" × 9'-0" | 87 sq ft |
| Hall | 4'-10" × 3'-7" | 17 sq ft |
| Stacked Laundry | 2'-5" × 3'-7" | 9 sq ft |
| Bathroom | 7'-8" × 5'-1" | 39 sq ft |
Who this plan suits
This plan suits homeowners adding a rental, guest suite or space for a family member in a rear yard. It needs a level or gently sloped lot with room for a 19'-8" × 23'-0" footprint plus the setbacks your jurisdiction requires.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Detached backyard ADU (accessory dwelling unit) with about 400 sq ft of living space: 1 bedroom, 1 bath, studio-style open bedroom area separated by a wall, kitchenette, stacked laundry.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
