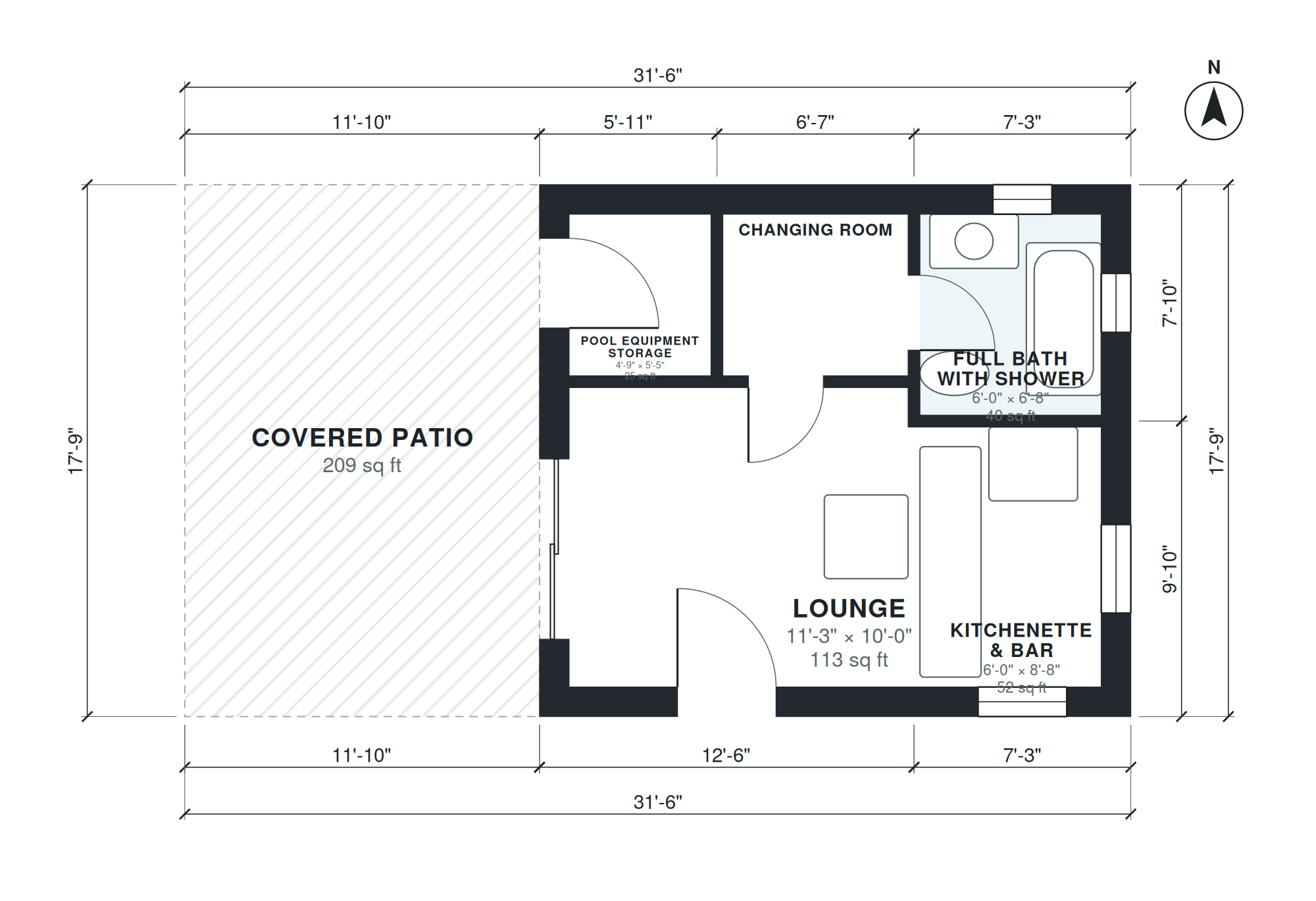

This pool house plan measures 350 square feet on a single level, with a footprint of 31'-6" × 17'-9". It has no bedrooms and one full bathroom. The lounge (11'-3" × 10'-0") sits at the center and opens onto the covered patio, so the main seating area faces the pool.
The kitchenette and bar (6'-0" × 8'-8") sits beside the lounge for serving drinks and snacks without crossing wet areas. The full bath with shower (6'-0" × 6'-8") and the changing room (6'-2" × 5'-5") are grouped together, so swimmers can change and rinse off before heading back outside. A small pool equipment storage room (4'-9" × 5'-5") keeps chemicals, pumps and cleaning gear out of the living space.
Layout highlights
- Lounge of 11'-3" × 10'-0" opens directly to the covered patio.
- Full bath with shower at 6'-0" × 6'-8", next to the changing room.
- Changing room of 6'-2" × 5'-5" gives swimmers a private place to dress.
- Kitchenette and bar at 6'-0" × 8'-8" serves both lounge and patio.
- Pool equipment storage of 4'-9" × 5'-5" keeps gear out of living areas.
Room sizes
| Room | Size | Area |
|---|---|---|
| Lounge | 11'-3" × 10'-0" | 113 sq ft |
| Pool Equipment Storage | 4'-9" × 5'-5" | 25 sq ft |
| Changing Room | 6'-2" × 5'-5" | 33 sq ft |
| Kitchenette & Bar | 6'-0" × 8'-8" | 52 sq ft |
| Full Bath with Shower | 6'-0" × 6'-8" | 40 sq ft |
Who this plan suits
This plan suits homeowners who want a compact poolside building for entertaining, with a bathroom and changing space so guests do not need to enter the main house. It needs a lot with room for a 31'-6" × 17'-9" footprint beside the pool, plus clearance for the patio side and access to water and drain lines.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Pool house: changing room, full bath with shower, kitchenette and bar, lounge open to a large covered patio, storage for pool equipment, about 350 sq ft.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are pool house plans with a bathroom?
They are small single-story building plans that pair a lounge or entertaining space with at least one bathroom, so pool users have a toilet and shower close by. This plan includes a full bath with shower, a changing room, a kitchenette and bar, and a covered patio in 350 square feet.
What affects the cost and lot requirements of this pool house?
The main drivers are the plumbing runs for the bath, shower and kitchenette, the electrical and equipment connections for the pool, and the foundation and roof over the 31'-6" × 17'-9" footprint. Check setbacks, utility access and the distance to the pool before you finalize the site.
Can I change this plan by chat?
Yes. You can describe changes in plain language, such as resizing the lounge, moving the kitchenette, adding a second bathroom, or flipping the patio to the other side. You can also ask for a different lot width or footprint, and the layout is updated to match.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and printing. The DXF opens in CAD software for drafting and site layout, and the IFC imports into BIM tools for coordination with engineers and builders. Have a local professional check the plans against your local code before you apply for a permit.
