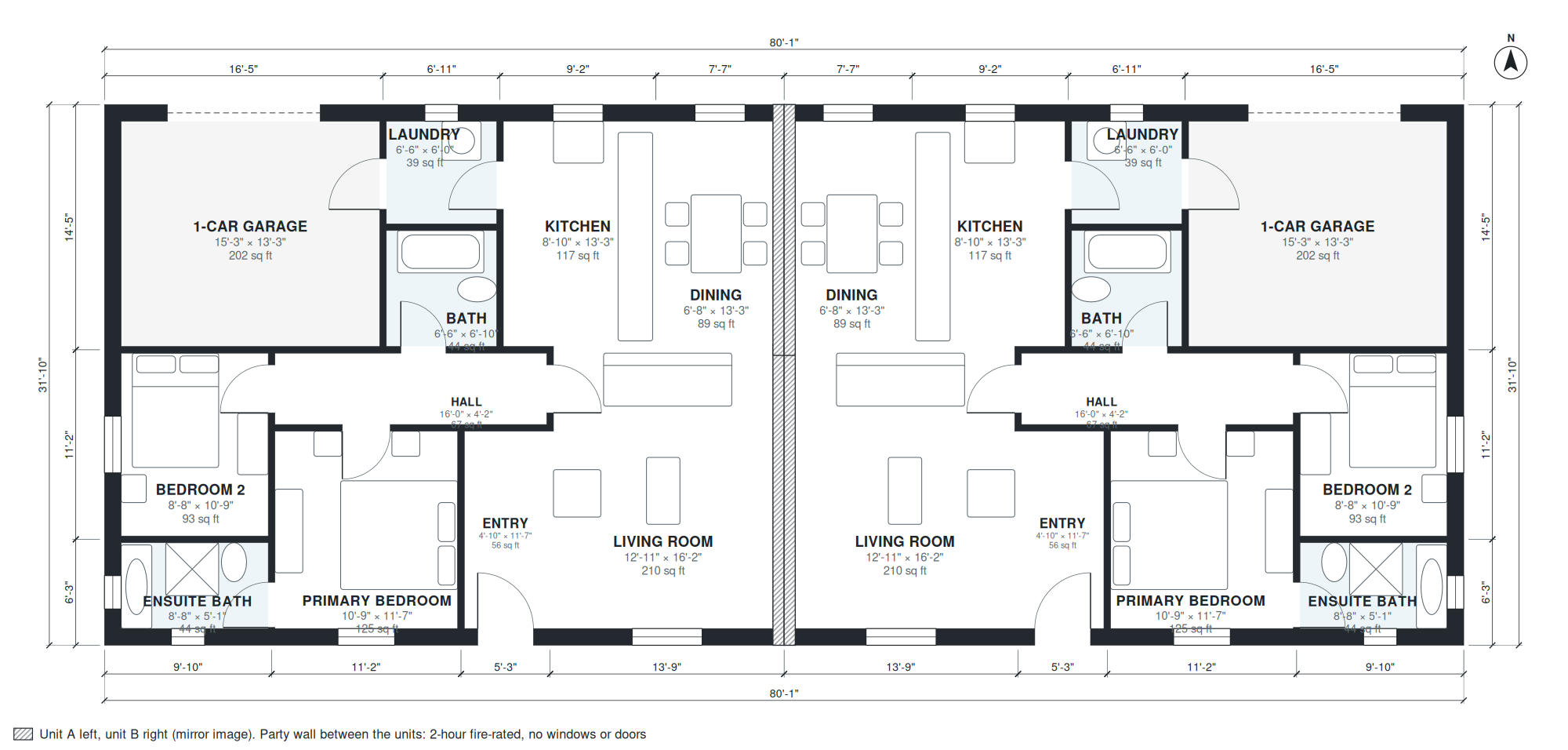

This single-story duplex places two mirrored units side by side on an 80'-1" × 31'-10" footprint, joined by a shared party wall. Each unit has its own entry and a 1-car garage (15'-3" × 13'-3"). Together the units offer 2,070 sq ft of living space, with garages not included.
Inside each unit, a 4'-10" × 11'-7" entry connects to a 16'-0" × 4'-2" hall. The kitchen (8'-10" × 13'-3"), dining area (6'-8" × 13'-3") and living room (12'-11" × 16'-2") form the open main space. The primary bedroom (10'-9" × 11'-7") has an ensuite bath (8'-8" × 5'-1"). Bedroom 2 (8'-8" × 10'-9") uses a separate 6'-6" × 6'-10" bath, and a 6'-6" × 6'-0" laundry completes the unit.
Layout highlights
- Two mirrored units share one party wall on an 80'-1" × 31'-10" footprint.
- Each unit has a 15'-3" × 13'-3" garage and its own 4'-10" × 11'-7" entry.
- Kitchen, dining and living room run together, with a 12'-11" × 16'-2" living room.
- Primary bedroom measures 10'-9" × 11'-7" with an 8'-8" × 5'-1" ensuite bath.
- Bedroom 2 is 8'-8" × 10'-9", with a 6'-6" × 6'-10" bath and 6'-6" × 6'-0" laundry.
Room sizes
| Room | Size | Area |
|---|---|---|
| Ensuite Bath | 8'-8" × 5'-1" | 44 sq ft |
| Bedroom 2 | 8'-8" × 10'-9" | 93 sq ft |
| Primary Bedroom | 10'-9" × 11'-7" | 125 sq ft |
| Entry | 4'-10" × 11'-7" | 56 sq ft |
| Hall | 16'-0" × 4'-2" | 67 sq ft |
| Living Room | 12'-11" × 16'-2" | 210 sq ft |
| 1-Car Garage | 15'-3" × 13'-3" | 202 sq ft |
| Bath | 6'-6" × 6'-10" | 44 sq ft |
| Laundry | 6'-6" × 6'-0" | 39 sq ft |
| Kitchen | 8'-10" × 13'-3" | 117 sq ft |
| Dining | 6'-8" × 13'-3" | 89 sq ft |
| Ensuite Bath | 8'-8" × 5'-1" | 44 sq ft |
| Bedroom 2 | 8'-8" × 10'-9" | 93 sq ft |
| Primary Bedroom | 10'-9" × 11'-7" | 125 sq ft |
| Entry | 4'-10" × 11'-7" | 56 sq ft |
| Hall | 16'-0" × 4'-2" | 67 sq ft |
| Living Room | 12'-11" × 16'-2" | 210 sq ft |
| 1-Car Garage | 15'-3" × 13'-3" | 202 sq ft |
| Bath | 6'-6" × 6'-10" | 44 sq ft |
| Laundry | 6'-6" × 6'-0" | 39 sq ft |
| Kitchen | 8'-10" × 13'-3" | 117 sq ft |
| Dining | 6'-8" × 13'-3" | 89 sq ft |
Who this plan suits
This plan suits investors, multigenerational families or owner-occupiers who want to live in one unit and rent the other. It needs a lot at least 80'-1" wide and 31'-10" deep, plus setbacks, with room for two driveways.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story duplex with garages: two mirrored units sharing a party wall, each with its own 1-car garage, entry, 2 bedrooms, 2 baths, open kitchen, dining and living, laundry; about 1,050 sq ft per unit, 2,100 sq ft of living space in total (garages not included).” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
